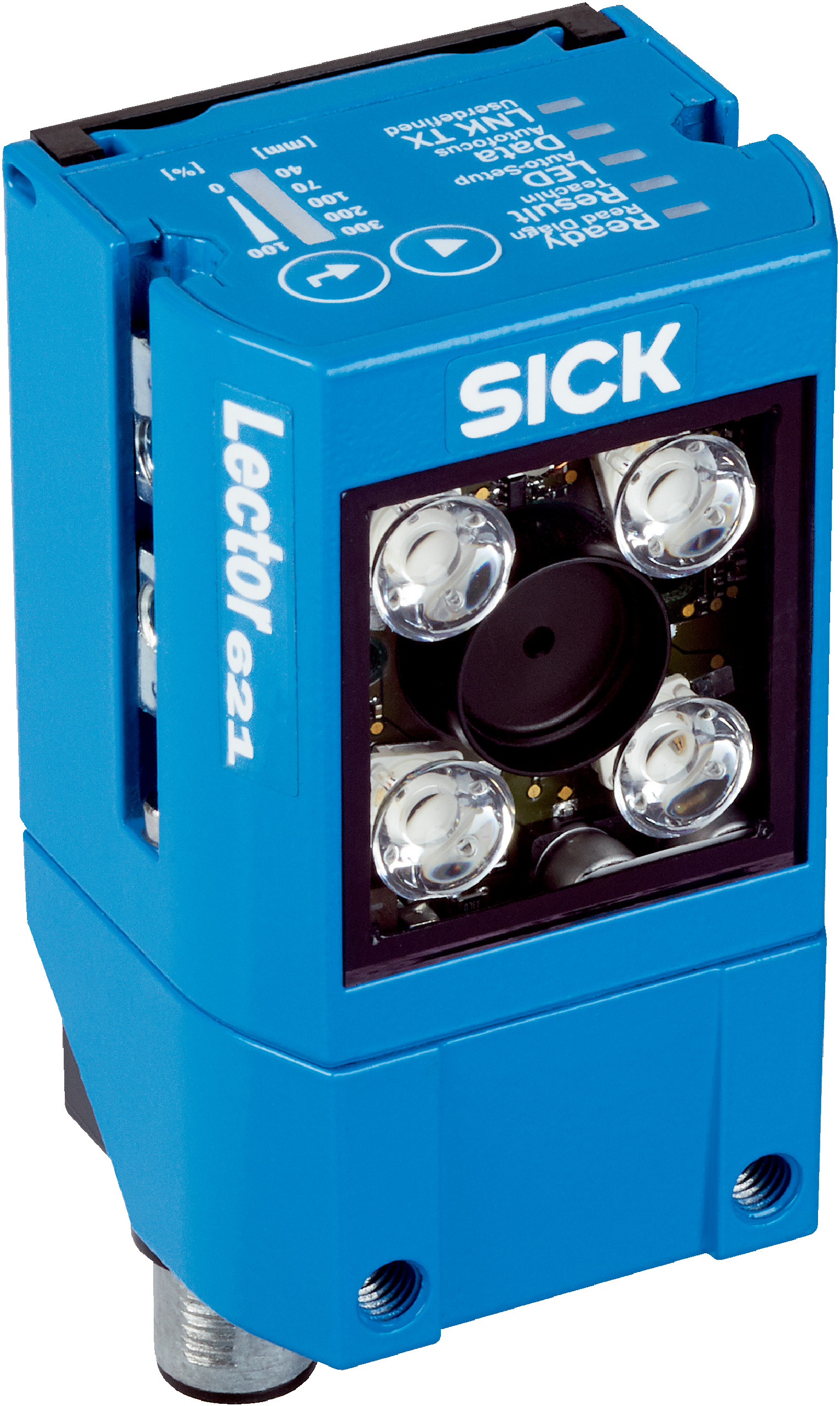

Industrial Barcode Scanner | CMOS Monochrome 1.3 Mpixel | IP65 Rated | Integrated LED Illumination | by SICK
The Industrial Barcode Scanner features a high-resolution CMOS monochrome sensor with 1.3 Mpixel clarity, making it perfect for industrial automation and logistics applications. With integrated red and blue LED illumination and an IP65 rated aluminum housing, this scanner ensures reliable performance in various environments. Ideal for reading 1D, stacked, and 2D codes, it supports multiple barcode types and offers versatile connectivity options.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor: CMOS monochrome, 1280 px x 1024 px (1.3 Mpixel)
- Illumination: Integrated red (617 nm ±15 nm) and blue (470 nm ±15 nm) LEDs
- Laser alignment aid: Red laser 630-680 nm, Class 1
- Scanning frequency: 50 Hz
- Code resolution: 0.25 mm
- Working range: 300 mm to 1500 mm
- Connection types: 1 x M12 17-pin male, 1 x M12 4-pin Ethernet female
- Supply voltage: 12 V DC to 24 V DC ±20%
- Power consumption: Typically 4 W
- Housing material: Aluminum die cast, light blue (RAL 5012)
- Window material: Plastic
- Enclosure rating: IP65
- Protection class: III
- Electrical safety: EN 62368
- MTBF: 75,000 hours
- Readable code structures: 1D, stacked, 2D, direct-marked codes
- Supported barcode types: GS1-128, UPC, EAN, Interleaved 2 of 5, Pharmacode, GS1 DataBar, Code 39, Code 128, Codabar, Code 32, Code 93, Plessey, MSI/Plessey, Telepen, postal codes
- Supported 2D codes: Data Matrix ECC200, GS1 Data-Matrix, PDF417, QR code, MaxiCode
- Code qualification standards: ISO/IEC 16022, 15415, 15416, 18004
- Number of codes per reading interval: 1 to 50
- Number of characters per reading interval: 500
- Automated parameter switching: Yes
- Interfaces: Ethernet (TCP/IP), PROFINET, EtherNet/IP™, EtherCAT®, Serial (RS-232, RS-422), CAN, CANopen, PROFIBUS DP
- Digital inputs: 4
- Digital outputs: 4
- Optical indicators: 16 LEDs
- Acoustic indicators: Beeper/buzzer
- Control elements: 2 buttons
- Operator interface: Web server
- Configuration software: SOPAS ET
- Memory card: Optional microSD
- Data storage: Image and data via microSD and FTP
- Encoder frequency max: 300 Hz
- External illumination control: Via digital output max 24 V trigger
- EMC: EN 61000-6-2, EN 61000-6-4
- Vibration resistance: EN 60068-2-6
- Shock resistance: EN 60068-2-27
- Operating temperature: 0°C to +50°C
- Storage temperature: -20°C to +70°C
- Relative humidity: 90% non-condensing
- Ambient light immunity: 2000 lx on code
- Dimensions (H x L x W): 35.6mm x 71mm x 43mm
- Weight: 0.17 kg
Key Features
- Complete device with teach auto focus
- CMOS monochrome sensor with 1.3 Megapixel resolution (1280 x 1024 px)
- Integrated red and blue LED illumination with visible wavelengths
- Laser alignment aid with red laser class 1
- Reads 1D, stacked, 2D, and direct-marked codes
- Supports multiple barcode types including GS1-128, UPC, Code 39, Data Matrix ECC200, QR code, and more
- Multiple interface options including Ethernet, PROFINET, EtherNet/IP™, EtherCAT®, Serial, CAN, CANopen, and PROFIBUS DP
- IP65 rated aluminum die cast housing with plastic window
- Operating temperature range 0°C to +50°C
- 16 LED optical indicators and acoustic beeper for status feedback
- Supports image and data storage via microSD card and FTP
Professional Installation Requirements
- Installation and configuration should be performed by qualified personnel familiar with industrial sensor systems and network protocols to ensure proper integration and safety compliance.
Applications
- Industrial automation for barcode and 2D code reading
- Logistics and warehousing for package tracking
- Manufacturing for quality control and traceability
- Pharmaceutical and postal code verification
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
- AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Low power consumption at approximately 4 W reduces energy usage
- Durable IP65 rated housing extends product life and reduces waste
- Supports digital data transmission reducing paper-based processes
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now

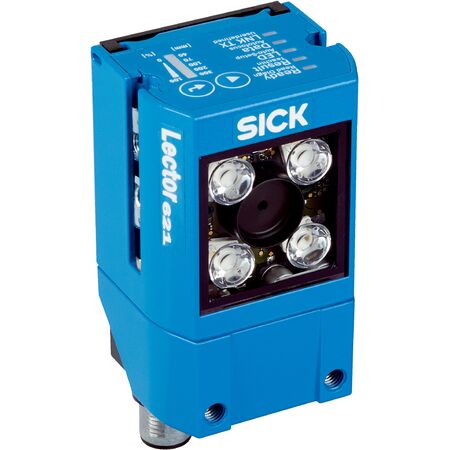

The SICK V2D621D-2MSFFB5 code reader is available for immediate purchase, ideal for industrial automation and barcode scanning applications.
