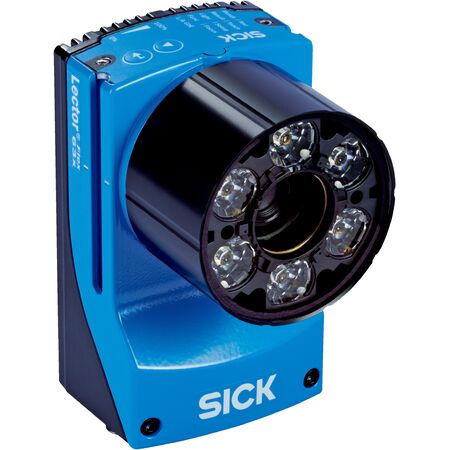

Industrial Barcode Scanner | CMOS Monochrome 1.3 Mpixel | IP67 Rated | Adjustable Focus | by SICK
The Industrial Barcode Scanner features a CMOS monochrome sensor with 1.3 Mpixel resolution and adjustable optical focus, making it perfect for industrial automation and logistics applications. With integrated white LED illumination and robust IP67-rated housing, this scanner ensures reliable performance in demanding environments, supporting various 1D and 2D barcode types for efficient package tracking and quality control.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor: CMOS monochrome, 1280 px x 1024 px (1.3 Mpixel)
- Optical focus: Adjustable (manual)
- Illumination: Integrated white LED
- Feedback spot: Green LED (525 nm ±15 nm), Red LED (630 nm ±20 nm)
- Laser alignment aid: Red laser 630-680 nm, Class 1
- Lens: C-mount (compact), 1/1.8" optical format, 35 mm focal length, aperture 8
- Scanning frequency: ≤ 50 Hz at 1.3 megapixels
- Code resolution: ≥ 0.1 mm
- Working range: 50 mm to 2200 mm
- Connection types: M12 17-pin plug, M12 8-pin socket (Ethernet 1 Gbit/s), M8 4-pin socket (USB), M12 4-pin socket (illumination control)
- Supply voltage: 12 V DC to 24 V DC ±20%
- Power consumption: Typical 10 W ±20%
- Output current: ≤ 100 mA
- Housing material: Aluminum die cast
- Window material: Plastic
- Enclosure rating: IP67
- Electrical safety: EN 60950-1
- Readable code structures: 1D, stacked, 2D codes
- Supported barcodes: GS1-128, UPC, EAN, Interleaved 2 of 5, Pharmacode, GS1 DataBar, Code 39, Code 128, Codabar, Code 32, Code 93, USPS, Australian Post, Dutch KIX Post, Royal Mail, Swedish Post
- 2D codes: Data Matrix ECC200, GS1 Data-Matrix, MaxiCode, QR code
- Stacked codes: PDF417
- Code qualification: ISO/IEC 16022, 15415, 18004
- Interfaces: Ethernet TCP/IP, PROFINET, EtherNet/IP, Serial RS-232/422, CAN, PROFIBUS DP
- Digital inputs: 4
- Digital outputs: 6
- Optical indicators: 11 LEDs
- Acoustic indicators: Configurable beeper
- Control elements: 2 buttons
- Operator interface: Web server
- Configuration software: SOPAS ET
- Memory card: Micro SD up to 32 GB
- Ambient operating temperature: 0°C to +50°C
- Storage temperature: -20°C to +70°C
- Relative humidity: 90%, non-condensing
- EMC: EN 61000-6-2, EN 61000-6-4
- Vibration resistance: EN 60068-2-6
- Shock resistance: EN 60068-2-27
- Dimensions (H x L x W): 96mm x 108mm x 63mm
- Weight: 0.59 kg
Key Features
- Adjustable manual optical focus
- Integrated white LED illumination
- CMOS monochrome sensor with 1.3 Megapixel resolution
- Multiple feedback spots with green and red LEDs
- Laser alignment aid with Class 1 laser safety
- Supports 1D, 2D, and stacked barcode types
- Robust aluminum die cast housing with IP67 rating
- Multiple communication interfaces including Ethernet, PROFINET, EtherNet/IP, Serial, CAN, and PROFIBUS DP
- Configurable digital inputs and outputs
- Web server operator interface and SOPAS ET configuration software
- Micro SD memory card support for image and data storage
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor integration and electrical safety standards.
Applications
- Industrial automation and manufacturing for barcode reading
- Logistics and warehousing for package tracking
- Quality control and inspection systems
- Retail and supply chain management
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Energy-efficient LED illumination reduces power consumption
- Durable IP67 rated housing extends product lifespan and reduces waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK V2D631R-MWMGB1 barcode scanner is available for immediate purchase, ideal for industrial automation, logistics, and quality control applications.
