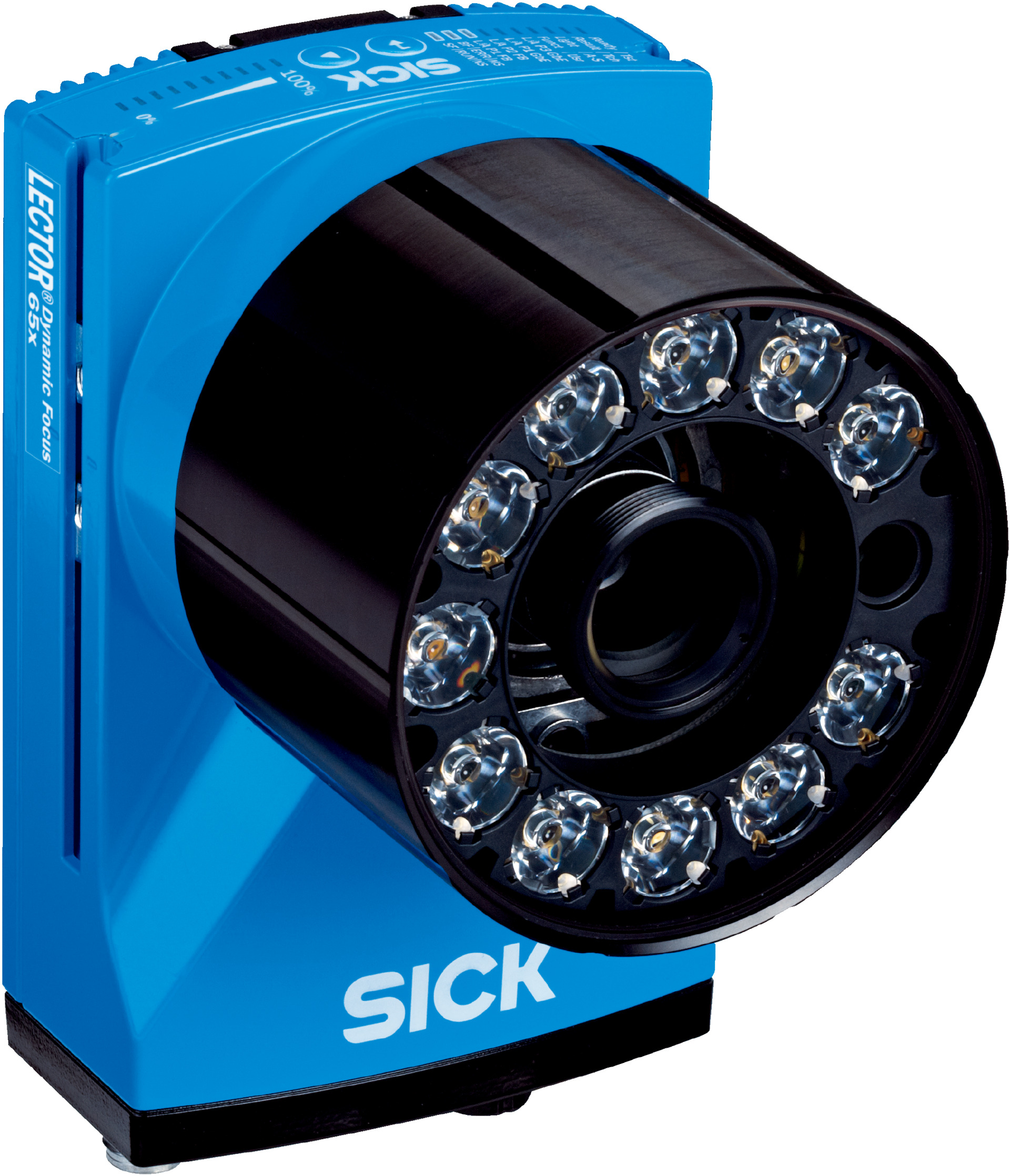

4.2MP Industrial Barcode Scanner | Dynamic Focus Control | IP65 Rated | by SICK
The 4.2MP Industrial Barcode Scanner features a dynamic optical focus control and integrated white LED illumination, making it perfect for industrial automation and logistics applications. With a high scanning frequency of 40 Hz and support for various 1D and 2D barcode types, this scanner ensures efficient package and inventory tracking. Its robust aluminum housing and IP65 rating make it suitable for harsh environments, ensuring reliability and durability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor: CMOS monochrome, 2048 x 2048 pixels (4.2 MP)
- Optical focus: Dynamic focus control
- Illumination: Integrated white LED, Risk group 1
- Feedback spot: Green LED, 525 nm ± 15 nm
- Alignment aid: Red laser, 630-680 nm, Laser class 1
- Lens: C-mount, 1" optical format, 40 mm focal length, aperture 8
- Scanning frequency: 40 Hz
- Code resolution: ≥ 0.12 mm
- Working range: 500 mm to 2500 mm
- Connection types: M12 17-pin plug, M12 8-pin sockets, M8 4-pin USB socket
- Supply voltage: 24 V DC ± 20%
- Power consumption: Typical 20 W ± 20%
- Output current: ≤ 100 mA
- Housing: Aluminum die cast, light blue (RAL 5012)
- Window material: Glass
- Enclosure rating: IP65
- Protection class: III
- Electrical safety: EN 60950-1
- MTBF: 100,000 hours
- Readable codes: 1D, stacked, 2D codes including GS1-128, QR, Data Matrix ECC200, PDF417
- Interfaces: Ethernet (TCP/IP), PROFINET, EtherNet/IP™, Serial (RS-232, RS-422), CAN, PROFIBUS DP
- Digital inputs: 4; Digital outputs: 6; Configurable inputs and outputs
- Indicators: 21 LEDs, beeper/buzzer
- Operating temperature: 0°C to +50°C
- Storage temperature: -20°C to +70°C
- Humidity: 90% non-condensing
- EMC: EN 61000-6-2, EN 61000-6-3
- Vibration and shock resistance: EN 60068-2-6
- Dimensions (H x L x W): 106mm x 143mm x 90mm
- Weight: 0.96 kg
Key Features
- Dynamic optical focus control with 2,048 px x 2,048 px CMOS monochrome sensor
- Integrated white LED illumination with risk group 1 safety
- Multiple interface options including Ethernet, PROFINET, EtherNet/IP™, Serial, CAN, and PROFIBUS DP
- High scanning frequency of 40 Hz with 4 megapixel resolution
- Supports a wide range of 1D, 2D, and stacked barcode types
- Robust aluminum die cast housing with IP65 rating for harsh environments
- Advanced feedback with visible green LED spot and red laser alignment aid
- Internal image storage of 512 MB and optional microSD card support
- Comprehensive digital and configurable inputs and outputs for flexible integration
Professional Installation Requirements
- Installation and configuration should be performed by qualified personnel familiar with industrial sensor systems and electrical safety standards.
Applications
- Industrial automation and manufacturing for barcode and 2D code reading
- Logistics and warehousing for package and inventory tracking
- Quality control and inspection systems
- Pharmaceutical and postal code verification
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Energy-efficient LED illumination reduces power consumption
- Durable housing extends product lifespan, reducing waste
- Complies with RoHS regulations limiting hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now

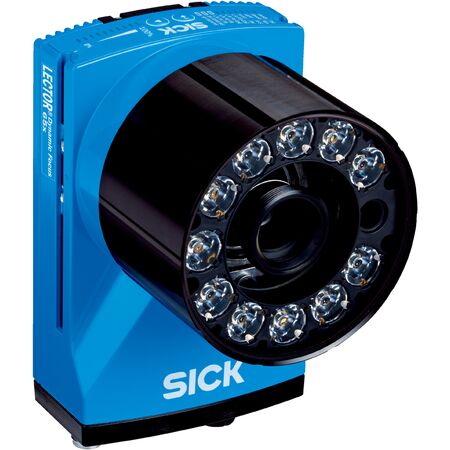

The SICK V2D654R-MEWKA6 barcode scanner is available for immediate purchase, ideal for industrial automation, logistics, and quality control applications.
