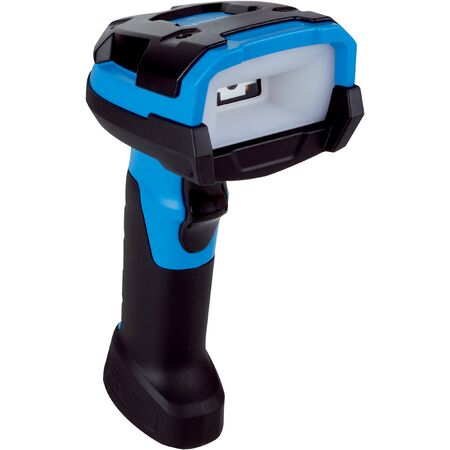

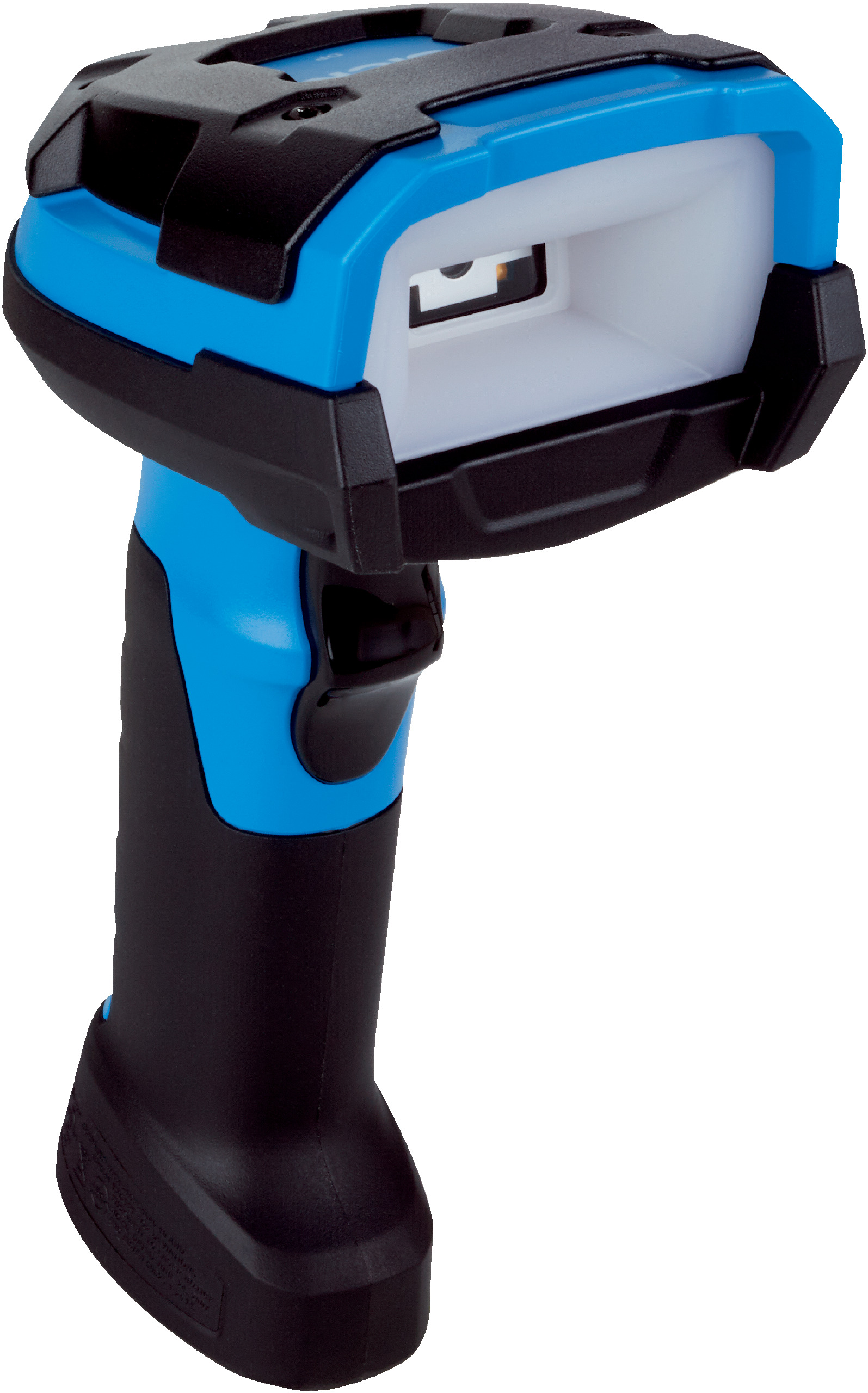

Industrial Barcode Scanner SICK ZS3608-DP20263VZWW | High Density Code Reading | IP65 & IP68 Rated | by SICK
The Industrial Barcode Scanner SICK ZS3608-DP20263VZWW is engineered for high-density code reading in industrial applications. With a robust design featuring IP65 and IP68 ratings, it ensures reliable performance in challenging environments. This scanner supports various code structures and offers multiple interface options, making it ideal for diverse industrial settings.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor resolution: 1280 px x 960 px
- Light source: LED visible warm white and red (634 nm diffuse)
- Reading distance: 0 mm to 86 mm
- Code resolution: ≥ 0.08 mm and ≥ 0.13 mm
- Supply voltage: 5 V DC ±10% via host, 12 V DC ±5% external supply
- Current consumption: 360 mA operation, 100 mA standby
- Weight: 304 g
- Enclosure rating: IP65 and IP68
- Readable code structures: 1D, 2D, stacked, direct-marked codes
- Battery power: 3100 mAh, over 100,000 scans per full charge
- Code buffer: 9000 codes for batch scanning
- Interfaces: Ethernet (TCP/IP), PROFINET, EtherCAT, PROFIBUS DP, Serial RS-232 TTL, USB
- Indicators: 2 LEDs for operational status and good read, beeper, vibration
- Shock resistance: Multiple falls from 2.4 m concrete
- Operating temperature: -30°C to +50°C
- Storage temperature: -40°C to +70°C
- Relative humidity: 95% non-condensing
- Ambient light immunity: 108,000 lx
- Dimensions (H x L x W): 185mm x 132mm x 77mm
- Weight: 0.3 kg
Key Features
- High Density (DP) version for precise code reading
- Cable connection variant scanner design
- Omni-directional code alignment
- Supports 1D, 2D, stacked, and direct-marked codes
- Multiple interface options including Ethernet, PROFINET, EtherCAT, PROFIBUS DP, Serial RS-232 TTL, and USB
- Optical and acoustic indicators with vibration feedback
- Robust housing with IP65 and IP68 enclosure rating
- Shock resistant to multiple falls from 2.4 m
- Wide ambient operating temperature range from -30°C to +50°C
- High ambient light immunity up to 108,000 lx
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper electrical connections and compliance with safety standards.
Applications
- Industrial application for barcode scanning and code reading
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces replacement frequency and electronic waste
- Energy-efficient operation with low current consumption
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK ZS3608-DP20263VZWW industrial barcode scanner is available for immediate purchase, ideal for industrial environments requiring high density and reliable code reading.
