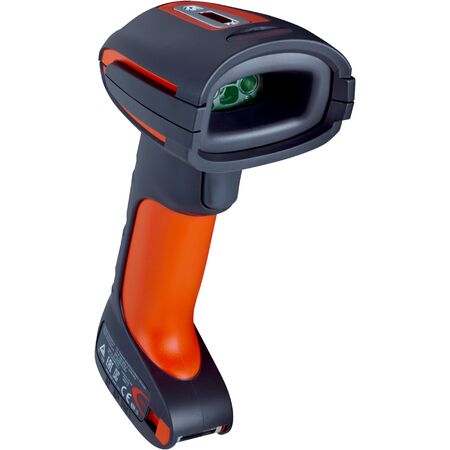

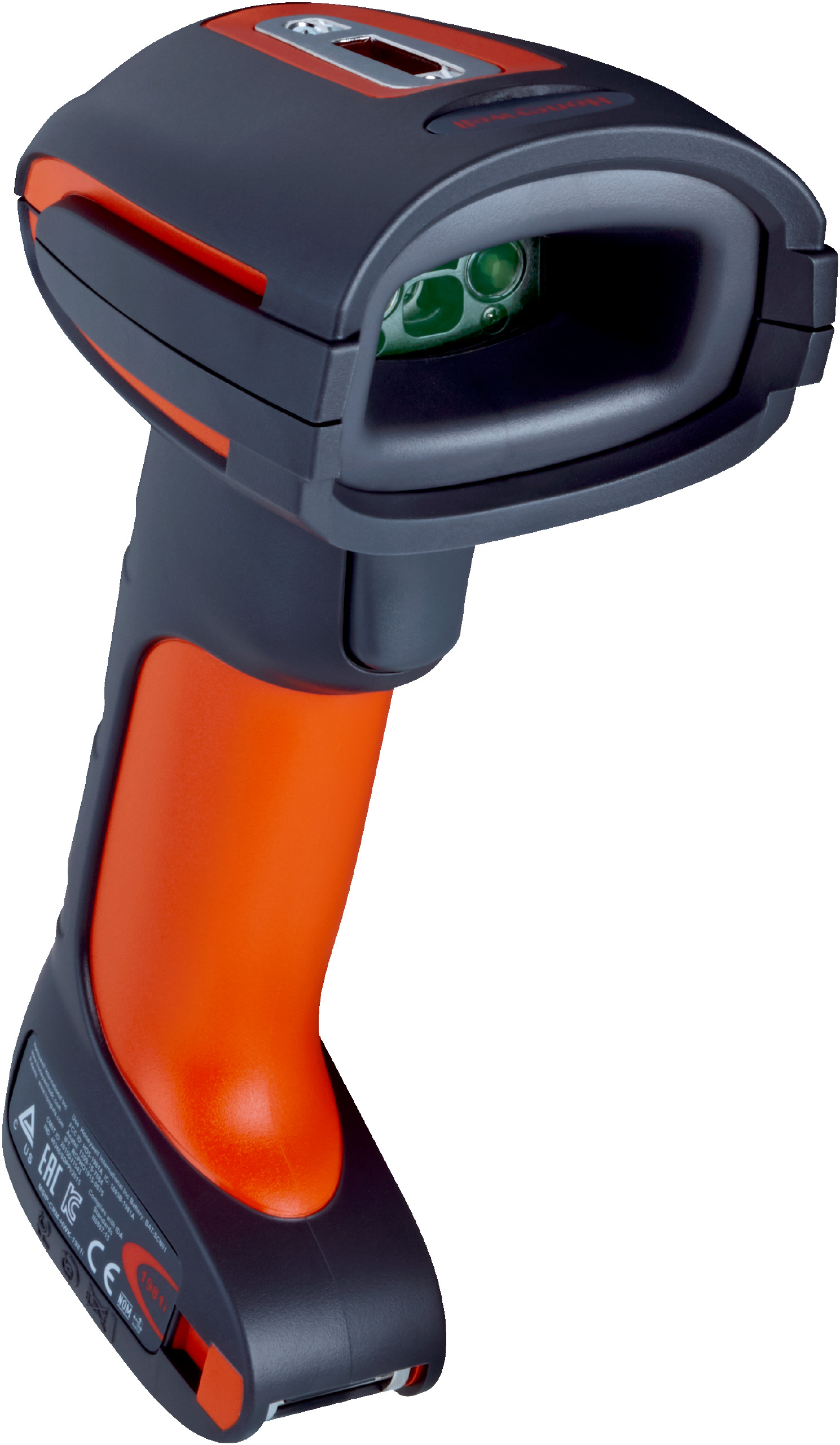

Industrial Barcode Scanner HW1980IFR-3 | 1280 px Resolution | IP65 Rated | by SICK
The Industrial Barcode Scanner HW1980IFR-3 features a high sensor resolution of 1280 px x 800 px and a full range focus, making it ideal for precise barcode scanning in industrial applications. With an impressive reading distance of 150 mm to 16,000 mm and support for various barcode types, this scanner is built for durability with an IP65 rated enclosure, ensuring reliable performance in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor resolution: 1280 px x 800 px
- Light source: LED, Visible, Red, 624 nm ± 18 nm
- Alignment aid: Laser, Red, 650 nm
- Reading distance: 150 mm to 16,000 mm
- Code resolution: ≥ 0.05 mm (1D), ≥ 2 mm (2D)
- Supply voltage: 4 V DC to 5.5 V DC
- Current consumption: 470 mA at 5 V DC operation, 100 mA standby
- Housing material: Plastic (UL 94 V-0)
- Enclosure rating: IP65
- Weight: 335 g
- Readable code structures: 1D, 2D, Stacked
- Supported barcode types: Code 39, Code 128, GS1-128, UPC/EAN, Data Matrix, QR code, PDF417, and more
- Interfaces: Ethernet (TCP/IP), PROFINET, EtherCAT, Serial RS-232 TTL, PROFIBUS DP, USB, PS/2
- Indicators: 2 LEDs, beeper, vibration
- Operating temperature: -30 °C to +50 °C
- Storage temperature: -40 °C to +70 °C
- Shock resistance: 50 drops from 2 m at -30 °C
- Ambient light immunity: 100,000 lx
- Bar code print contrast (PCS): ≥ 40%
- Dimensions (H x L x W): 195mm x 133mm x 75mm
- Weight: 0.335 kg
Key Features
- Full Range Focus version with cable connection variant
- High sensor resolution of 1280 px x 800 px
- Visible red LED light source at 624 nm ± 18 nm
- Laser alignment aid at 650 nm
- Reading distance from 150 mm to 16,000 mm
- Omni-directional code alignment
- Supports 1D, 2D, and stacked barcode types
- Multiple interface options including Ethernet, PROFINET, EtherCAT, Serial RS-232 TTL, PROFIBUS DP, USB, and PS/2
- IP65 rated enclosure for dust and water resistance
- Shock resistant withstanding 50 drop tests from 2 m at -30 °C
- Wide ambient operating temperature range from -30 °C to +50 °C
- Optical and acoustic indicators with vibration feedback
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure proper electrical connections and integration with industrial systems.
Applications
- Industrial application for barcode scanning and code reading
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable IP65 rated housing reduces need for frequent replacements
- Energy-efficient LED and laser light sources minimize power consumption
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for detailed warranty terms.
Available Now
The SICK HW1980IFR-3 Industrial Full Range Focus Barcode Scanner is available for immediate purchase, ideal for industrial barcode scanning applications requiring high precision and durability.
