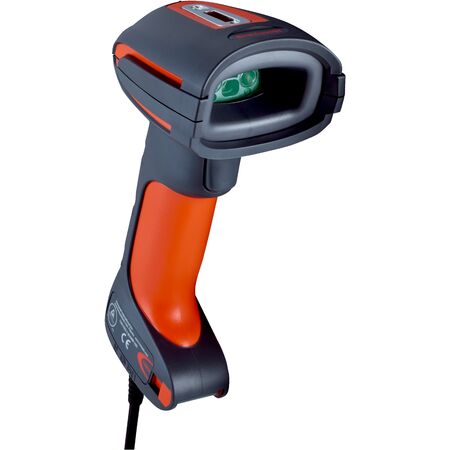

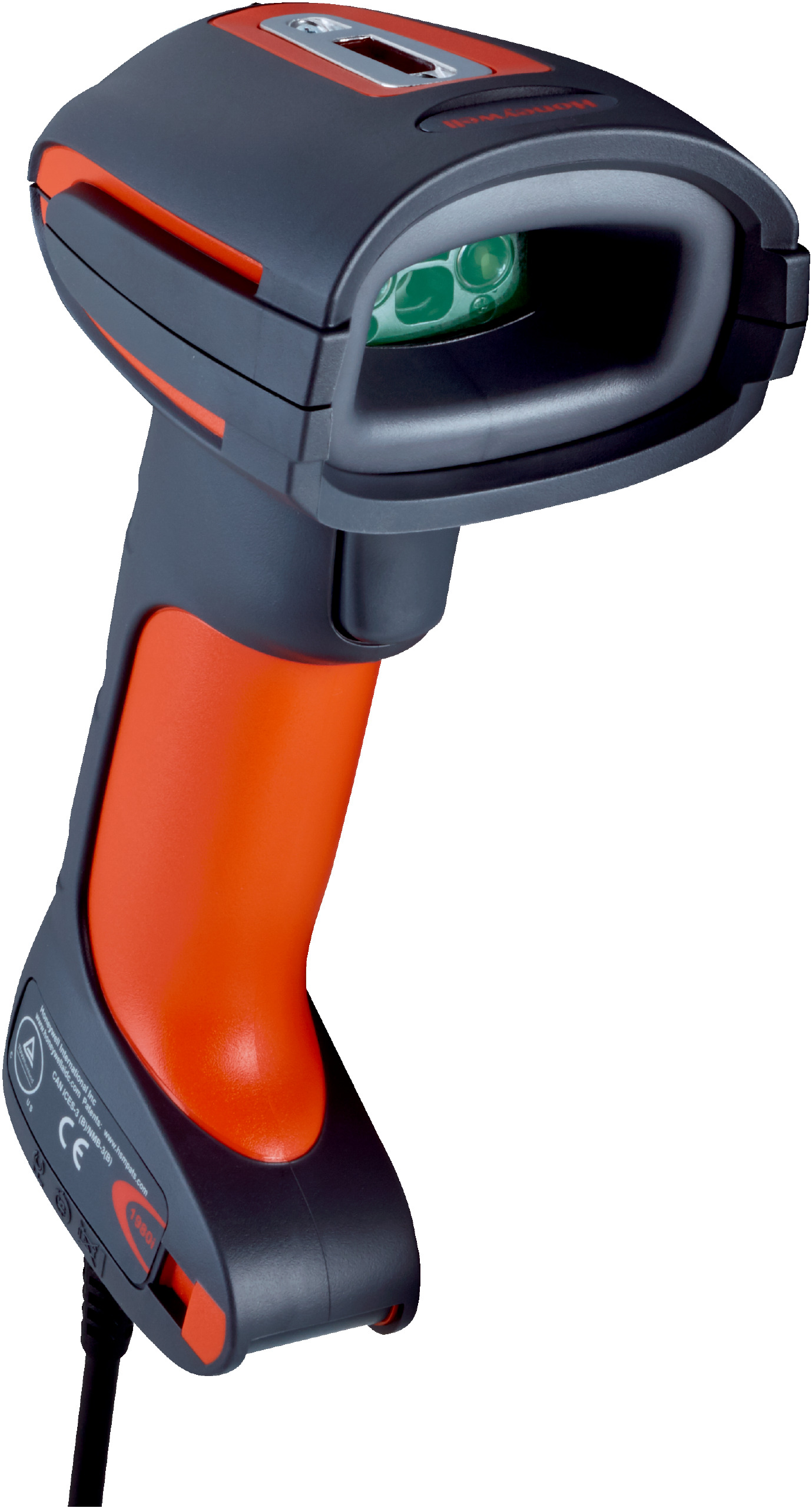

Industrial Barcode Scanner HW1980IFR-3SER KIT | 1280 px x 800 px Resolution | IP65 Rated | by SICK
The Industrial Barcode Scanner HW1980IFR-3SER KIT features a high sensor resolution of 1280 px x 800 px and a reading distance of 150 mm to 16,000 mm, making it ideal for industrial applications requiring precise barcode scanning. With its IP65 rated housing and robust design, this scanner is built for durability in challenging environments, ensuring reliable performance in manufacturing and logistics.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor resolution: 1280 px x 800 px
- Light source: LED, Visible, Red, 624 nm ± 18 nm
- Alignment aid: Laser, Red, 650 nm
- Reading distance: 150 mm to 16,000 mm
- Code resolution: ≥ 0.05 mm for 1D, ≥ 2 mm for 2D
- Supply voltage: 4 V DC to 5.5 V DC
- Current consumption: 470 mA operation at 5 V DC, 100 mA standby
- Housing material: Plastic (UL 94 V-0)
- Enclosure rating: IP65
- Weight: 335 g
- Readable code structures: 1D, 2D, Stacked codes
- Supported barcode types: Code 39, Code 128, GS1-128, UPC/EAN, Data Matrix, QR code, PDF417, and more
- Interfaces: Ethernet (TCP/IP), PROFINET, EtherCAT, Serial RS-232 TTL, PROFIBUS DP
- Shock resistance: 50 drops from 2 m at -30 °C
- Operating temperature: -30 °C to +50 °C
- Storage temperature: -40 °C to +70 °C
- Relative humidity: 95%, non-condensing
- Ambient light immunity: 100,000 lx
- Bar code print contrast (PCS): ≥ 40%
- Dimensions (H x L x W): 195mm x 133mm x 75mm
- Weight: 0.335 kg
Key Features
- Full Range Focus version with cable connection variant
- High sensor resolution of 1280 px x 800 px
- Visible red LED light source at 624 nm with ±18 nm tolerance
- Laser alignment aid at 650 nm
- Reading distance from 150 mm up to 16,000 mm
- Omni-directional code alignment
- Supports a wide range of 1D, 2D, and stacked barcode types
- Ethernet, PROFINET, EtherCAT, Serial RS-232 TTL, and PROFIBUS DP interfaces
- IP65 rated plastic housing with orange and gray color
- Shock resistant to 50 drops from 2 m at -30°C
- Operating temperature range from -30°C to +50°C
- Configuration via EZConfig Tool
- Optical and acoustic indicators with vibration feedback
Professional Installation Requirements
- Installation by qualified industrial automation professionals or electricians is recommended to ensure proper integration and compliance with safety standards.
Applications
- Industrial applications requiring high-resolution barcode scanning
- Reading 1D, 2D, and stacked codes in manufacturing and logistics
- Environments with ambient temperatures from -30°C to +50°C
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces replacement frequency and electronic waste
- Energy-efficient operation with low current consumption
- IP65 rating protects against dust and water, extending product life
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK HW1980IFR-3SER KIT is available for immediate purchase, ideal for industrial barcode scanning applications requiring high precision and robust performance.
