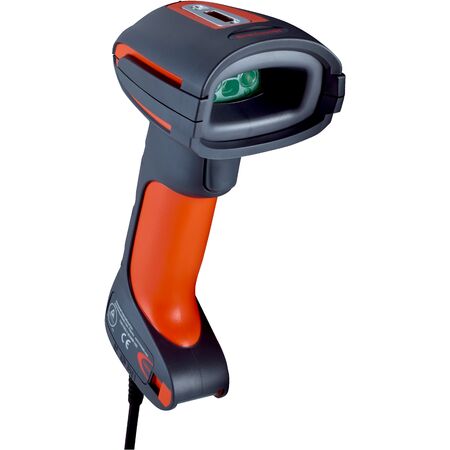

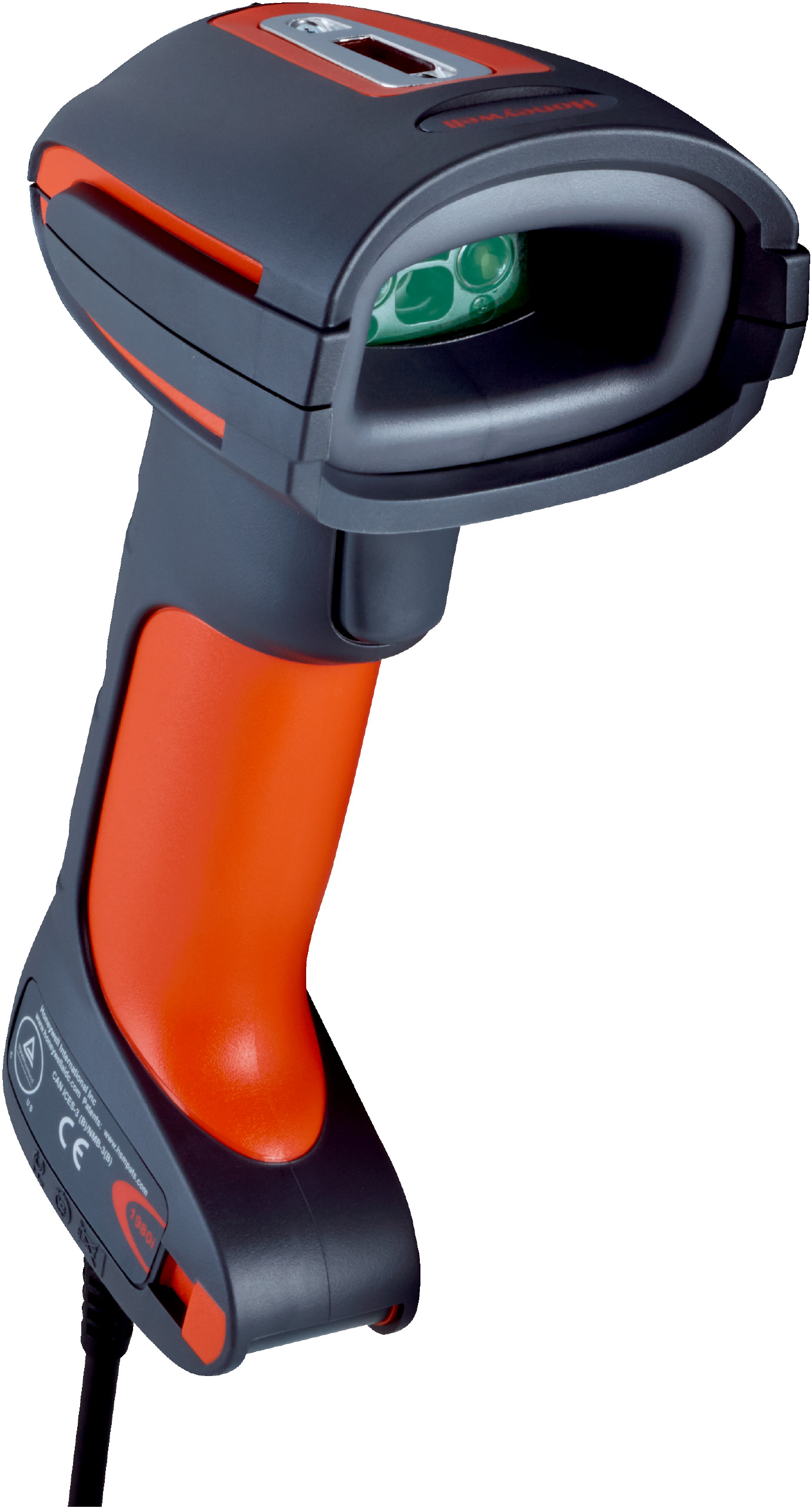

Industrial Barcode Scanner HW1980IFR-3USB | 1280px x 800px Resolution | IP65 Rated | by SICK
The Industrial Barcode Scanner HW1980IFR-3USB is designed for versatile scanning in industrial applications, featuring a high sensor resolution of 1280 px x 800 px and a robust IP65 rated housing. With a reading distance of 150 mm to 16,000 mm and support for 1D, 2D, and stacked barcode types, this scanner is perfect for demanding environments, ensuring reliable performance and durability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor resolution: 1,280 px x 800 px
- Light source: LED, Visible, Red, 624 nm ± 18 nm
- Alignment aid: Laser, Red, 650 nm
- Reading distance: 150 mm to 16,000 mm
- Code resolution: ≥ 0.05 mm for 1D codes, ≥ 2 mm for stacked codes
- Supply voltage: 4 V DC to 5.5 V DC
- Current consumption: 470 mA at 5 V DC operation, 100 mA standby
- Housing material: Plastic (UL 94 V-0)
- Enclosure rating: IP65
- Weight: 335 g
- Readable code structures: 1D, 2D, Stacked
- Supported barcode types: Code 39, Code 128, GS1-128, UPC/EAN, Data Matrix, QR code, PDF417, and more
- Interfaces: USB with keyboard wedge and COM-Port emulation
- Indicators: 2 LEDs, beeper, vibration
- Operating temperature: -30 °C to +50 °C
- Storage temperature: -40 °C to +70 °C
- Shock resistance: 50 drops from 2 m at -30 °C
- Ambient light immunity: 100,000 lx
- Dimensions (H x L x W): 195mm x 133mm x 75mm
- Weight: 0.335 kg
Key Features
- Full Range Focus version for versatile scanning
- Cable connection variant scanner design
- High sensor resolution of 1,280 px x 800 px
- Visible red LED light source at 624 nm ± 18 nm
- Laser alignment aid at 650 nm
- Reading distance from 150 mm to 16,000 mm
- Omni-directional code alignment
- Supports 1D, 2D, and stacked barcode types
- USB interface with keyboard wedge and COM-Port emulation
- Optical, acoustic, and vibration indicators
- Configuration via EZConfig Tool
- Robust IP65 rated plastic housing
- Shock resistant to 50 drops from 2 m at -30 °C
- Wide ambient operating temperature range from -30 °C to +50 °C
- High ambient light immunity of 100,000 lx
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure proper setup and integration with industrial systems.
Applications
- Industrial application for barcode scanning and code reading
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable design reduces replacement frequency and electronic waste
- Low power consumption with efficient LED and laser light sources
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for specific warranty terms.
Available Now
The SICK HW1980IFR-3USB KIT is available for immediate purchase, ideal for industrial barcode scanning applications requiring high performance and durability.
