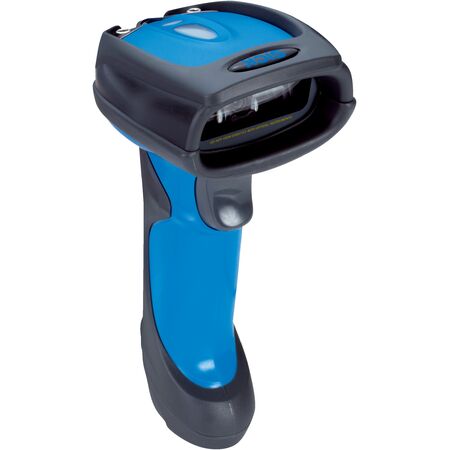

Industrial Barcode Scanner IDM160-411S | IP65 Rated | 1D & Stacked Code Support | by SICK
The Industrial Barcode Scanner IDM160-411S is designed for robust barcode reading in industrial applications. With an IP65 rating, it withstands harsh environments while supporting a wide range of 1D and stacked barcode types. Ideal for manufacturing and logistics, this scanner features multiple interface options and high ambient light immunity, ensuring reliable performance in various conditions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 5 V DC, ±10%
- Current consumption: 230 mA (operation vibration activated), 180 mA (operation vibration deactivated), 80 mA (standby)
- Enclosure rating: IP65
- Weight: 208 g without cable
- Readable code structures: 1D codes and stacked codes
- Supported barcode types: Code 39, Code 128, GS1-128, Codabar, Code 11, Code 93, GS1 DataBar, Interleaved & Matrix 2 of 5, UPC/EAN/JAN, Telepen, MSI/Plessey, various postal codes, and more
- Stacked code types: PDF417, MicroPDF417, Composite Code
- Interfaces: Ethernet (TCP/IP), PROFINET, EtherCAT, Serial RS-232 TTL, PROFIBUS DP, USB
- Indicators: 2 LEDs for operational status and good read, beeper (switchable), vibration feedback
- Shock resistance: 50 drops from 2 m height on concrete
- Operating temperature: -10°C to +50°C
- Storage temperature: -40°C to +70°C
- Relative humidity: up to 95%, non-condensing
- Ambient light immunity: 100,000 lx
- Dimensions (H x L x W): 176mm x 104mm x 76mm
- Weight: 0.208 kg
Key Features
- Standard Range version with cable connection variant
- Visible red LED light source at 630 nm
- Reading distance from 20 mm to 850 mm
- Scanning frequency up to 500 Hz
- High code resolution of at least 0.076 mm
- Supports a wide range of 1D and stacked barcode types
- Multiple interface options including Ethernet, PROFINET, EtherCAT, Serial RS-232 TTL, PROFIBUS DP, and USB
- Optical and acoustic indicators with vibration feedback
- Robust IP65 rated housing in blue and gray
- Shock resistant to 50 drops from 2 m height on concrete
- Operates in ambient temperatures from -10°C to +50°C
- High ambient light immunity up to 100,000 lx
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure proper integration and compliance with safety standards.
Applications
- Industrial application for barcode scanning and code reading
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing electronic waste
- Energy-efficient LED light source reduces power consumption
Warranty Information
Warranty details available upon request from manufacturer or supplier.
Available Now
The SICK IDM160-411S Industrial Barcode Scanner is available for immediate purchase, ideal for industrial barcode reading applications.
