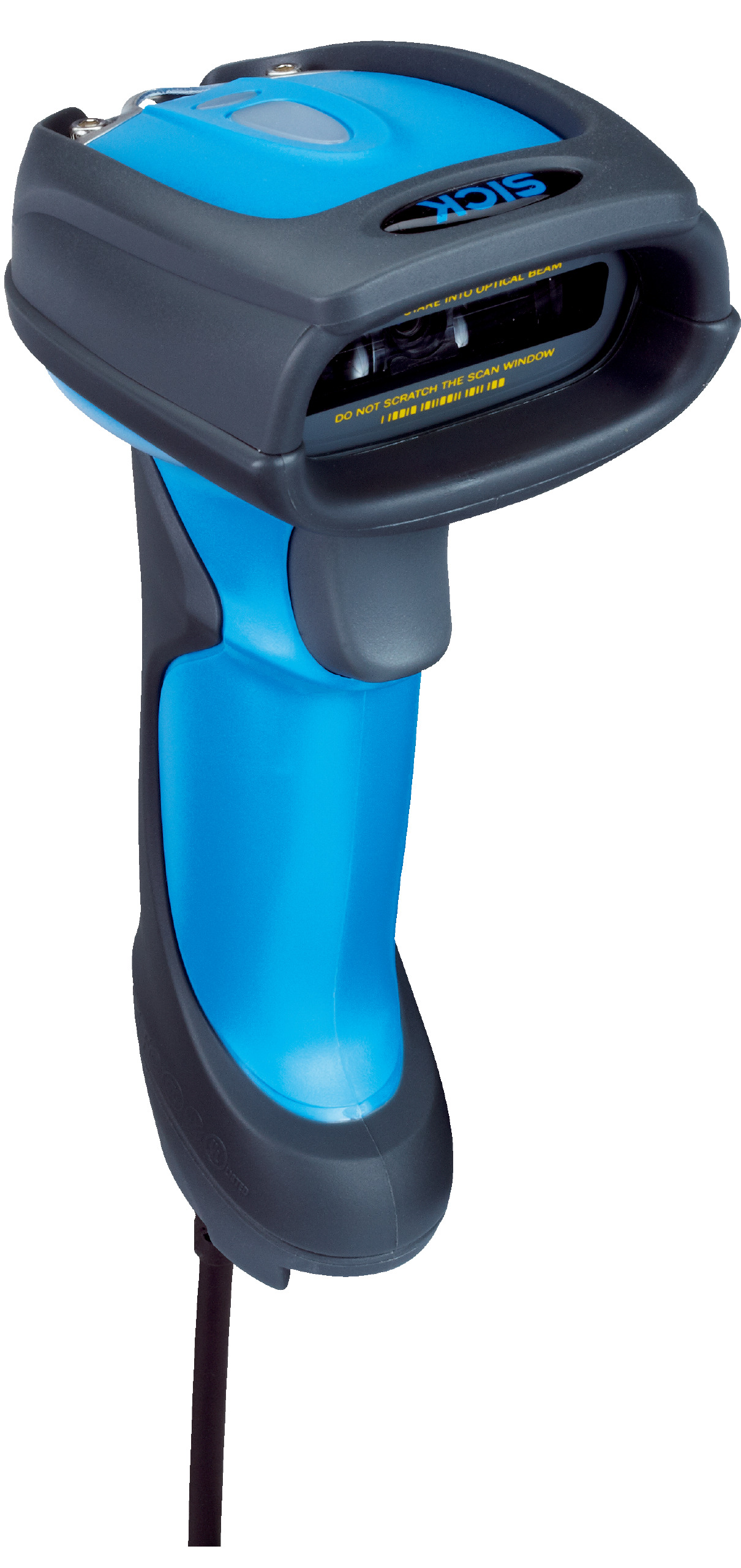

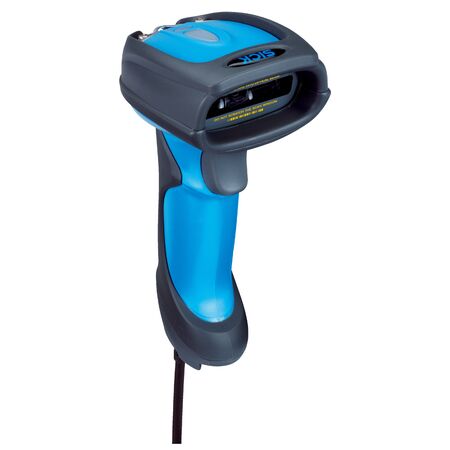

Industrial Barcode Scanner IDM160-411S | IP65 Rated | USB Interface | Rugged Design | by SICK
The IDM160-411S USB Kit is an industrial barcode scanner designed for robust performance in demanding environments. With an IP65 rating, it offers protection against dust and water, making it ideal for industrial applications. This scanner supports a wide range of 1D and stacked barcode types, ensuring versatility and reliability in code reading tasks.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 5 V DC, ±10%
- Current consumption: 230 mA (operation vibration activated), 180 mA (operation vibration deactivated), 80 mA (standby)
- Enclosure rating: IP65
- Weight: 208 g without cable
- Readable code structures: 1D codes and stacked codes
- Supported barcode types: Code 39, Code 128, GS1-128, Codabar, UPC/EAN/JAN, MSI/Plessey, Australian Post, and many more
- Stacked code types: PDF417, MicroPDF417, Composite Code
- Optical indicators: 2 LEDs for operational status and good read
- Acoustic indicators: Beeper with on/off option
- Vibration feedback included
- Shock resistance: 50 drops from 2 m height on concrete
- Operating temperature range: -10°C to +50°C
- Storage temperature range: -40°C to +70°C
- Permissible relative humidity: up to 95%, non-condensing
- Ambient light immunity: 100,000 lx
- Dimensions (H x L x W): 176mm x 104mm x 76mm
- Weight: 0.208 kg
Key Features
- Standard range scanner with cable connection variant
- Visible red LED light source at 630 nm
- Reading distance from 20 mm to 850 mm
- Scanning frequency up to 500 Hz
- High code resolution of at least 0.076 mm
- Supports a wide range of 1D and stacked barcode types
- USB interface with keyboard wedge and COM-Port emulation
- Optical and acoustic indicators with vibration feedback
- Rugged design with IP65 enclosure rating
- Shock resistant to 50 drops from 2 m height on concrete
- Operates in ambient temperatures from -10°C to +50°C
Professional Installation Requirements
- Installation by a qualified technician is recommended to ensure proper setup and integration with industrial systems.
Applications
- Industrial application for barcode scanning and code reading
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable design reduces replacement frequency and electronic waste
- Energy-efficient operation with low current consumption
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK IDM160-411S USB Kit is available for immediate purchase, ideal for industrial barcode scanning applications requiring robust and reliable performance.
