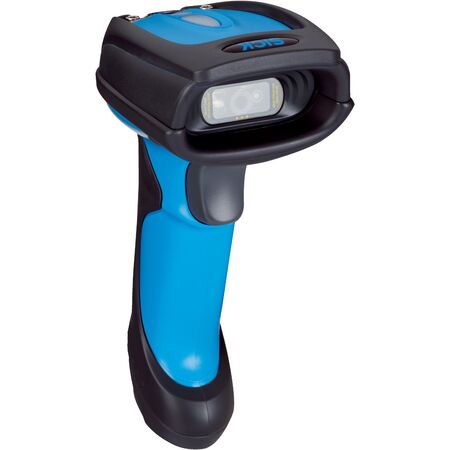

Industrial Barcode Scanner IDM260-411S | 1280 px x 800 px Resolution | IP65 Rated | by SICK
The Industrial Barcode Scanner IDM260-411S features a high sensor resolution of 1280 px x 800 px and a visible red LED light source at 660 nm, making it ideal for precise code scanning in industrial applications. With support for 1D, 2D, and stacked code types, this scanner is built for durability with an IP65 rated enclosure and shock resistance, ensuring reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor resolution: 1,280 px x 800 px
- Light source: LED, Visible, Red, 660 nm
- Alignment aid: Laser, Red, 630 nm, Laser class 1 (EN/IEC 60825-1:2014)
- Reading distance: 30 mm to 400 mm
- Code resolution: ≥ 0.07 mm and ≥ 0.13 mm
- Supply voltage: 5 V DC, ± 10%
- Current consumption: 395 mA (operation vibration deactivated), 420 mA (operation vibration activated), 220 mA (standby)
- Enclosure rating: IP65
- Weight: 208 g without cable
- MTBF: 100,000 hours
- Readable code structures: 1D, 2D, Stacked codes
- Supported barcode types: Code 39, Code 128, GS1-128, Codabar, UPC/EAN, MSI/Plessey, Australian Post, and many more
- Supported 2D codes: Data Matrix, MaxiCode, QR code, Aztec, MicroQR-Code, GS1 QR code, GS1 Data-Matrix
- Stacked codes: PDF417, MicroPDF417, Code 49, Code 16K, Composite, Codablock F
- Interfaces: Ethernet (TCP/IP), PROFINET, EtherCAT, Serial RS-232, PROFIBUS DP, USB
- Indicators: 2 LEDs for operational status and good read, beeper (switchable), vibration feedback
- Shock resistance: 50 drops from 2 m height on concrete
- Operating temperature: -20 °C to +50 °C
- Storage temperature: -40 °C to +70 °C
- Relative humidity: 95%, non-condensing
- Ambient light immunity: 100,000 lx
- Dimensions (H x L x W): 176mm x 104mm x 76mm
- Weight: 0.208 kg
Key Features
- Cable connection variant scanner design
- High sensor resolution of 1,280 px x 800 px
- Visible red LED light source at 660 nm
- Laser alignment aid at 630 nm, Laser class 1
- Reading distance from 30 mm to 400 mm
- Supports 1D, 2D, and stacked code types
- Multiple interface options including Ethernet, PROFINET, EtherCAT, Serial RS-232, PROFIBUS DP, and USB
- IP65 rated enclosure for dust and water protection
- Shock resistant to 50 drops from 2 m height on concrete
- Ambient operating temperature range from -20 °C to +50 °C
- Configuration via IDM Setup Tool
- Optical and acoustic indicators with vibration feedback
Professional Installation Requirements
- Professional installation by a qualified technician or electrician is recommended to ensure proper integration and compliance with electrical standards.
Applications
- Industrial application for barcode and code scanning
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable IP65 housing reduces need for frequent replacements
- Energy-efficient LED and laser light sources minimize power consumption
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK IDM260-411S Industrial Barcode Scanner is available for immediate purchase, ideal for industrial environments requiring reliable and versatile code scanning solutions.
