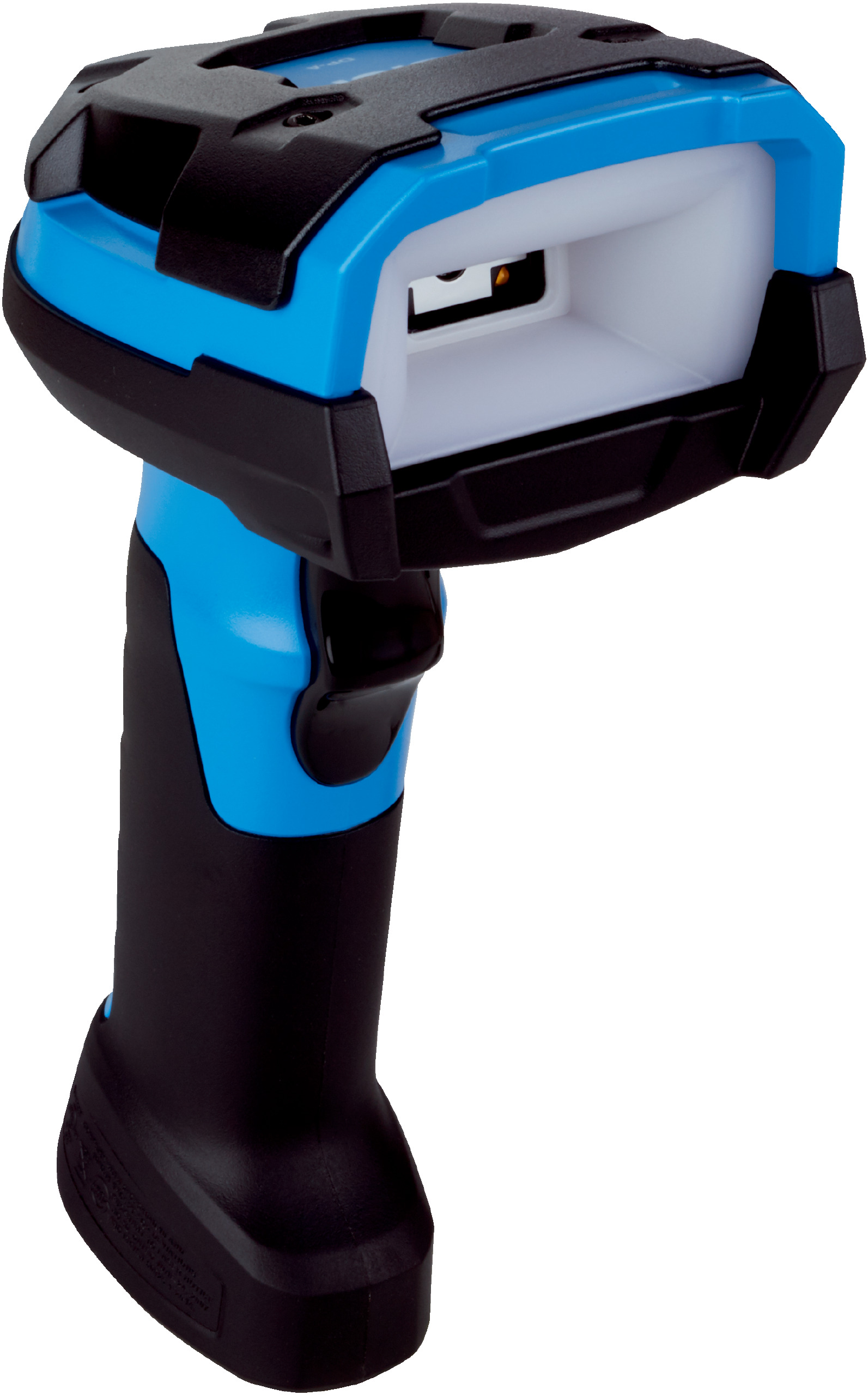

Industrial Barcode Scanner | Omni-Directional 2D Code Reader | IP65 & IP68 Rated | by SICK
The Industrial Barcode Scanner is designed for high-performance code reading in industrial applications. With its omni-directional scanning capability and IP65/IP68 enclosure rating, it ensures reliable operation in challenging environments. Ideal for manufacturing and logistics, this scanner supports a wide range of barcode types and features a robust design for durability and efficiency.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 5 V DC ±10% via host or 12 V DC ±5% external supply
- Current consumption: 360 mA during operation, 100 mA standby
- Enclosure rating: IP65 and IP68 for dust and water resistance
- Weight: 304 g
- Readable code structures: 1D, 2D, stacked, direct-marked codes
- Supported barcode types: Code 39, Code 128, GS1-128, UPC/EAN, MSI/Plessey, Interleaved 2 of 5, Data Matrix, QR code, Aztec, MaxiCode, TLC-39, Han Xin, PDF417, MicroPDF417, Codablock F, and more
- Interfaces: Ethernet (TCP/IP), PROFINET, EtherCAT, Serial RS-232 TTL, PROFIBUS DP, USB
- Indicators: 2 LEDs for operational status and good read, beeper, vibration
- Operating temperature: -30 °C to +50 °C
- Storage temperature: -40 °C to +70 °C
- Relative humidity: 95% non-condensing
- Shock resistance: Multiple drops from 2.4 m
- Ambient light immunity: 108,000 lx
- Code buffer: 9,000 codes
- Battery: 3,100 mAh
- Dimensions (H x L x W): 185mm x 132mm x 77mm
- Weight: 0.3 kg
Key Features
- Standard Density (DPA) version
- Cable connection variant scanner design
- Sensor resolution of 1,280 px x 960 px
- LED light source: Visible, Warm white and Red (634 nm)
- Alignment aid with red LED (630 nm)
- Reading distance from 3 mm to 125 mm
- Omni-directional code alignment
- Supports 1D, 2D, stacked, and direct-marked codes
- Multiple interface options including Ethernet, PROFINET, EtherCAT, Serial RS-232 TTL, PROFIBUS DP, and USB
- Optical and acoustic indicators with vibration feedback
- Shock resistant to multiple falls from 2.4 m
- Wide ambient operating temperature range from -30 °C to +50 °C
- High ambient light immunity of 108,000 lx
- Code buffer capacity of 9,000 codes for batch scanning
- Battery power supports over 100,000 scans
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure proper integration with industrial systems and compliance with safety standards.
Applications
- Industrial application for barcode scanning and code reading
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces replacement frequency and electronic waste
- Energy-efficient LED light sources minimize power consumption
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty details.
Available Now

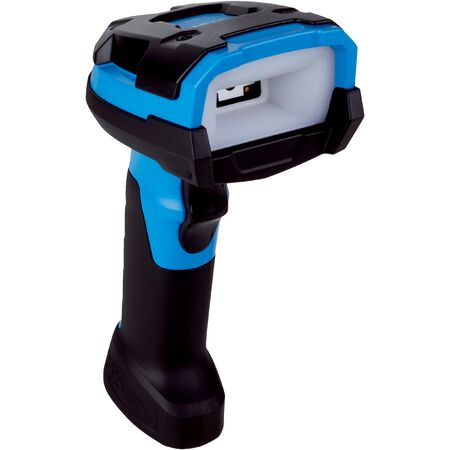

The SICK ZS3608-DPA0262VZK Industrial Barcode Scanner is available for immediate purchase, ideal for industrial barcode scanning applications requiring high reliability and robust performance.
