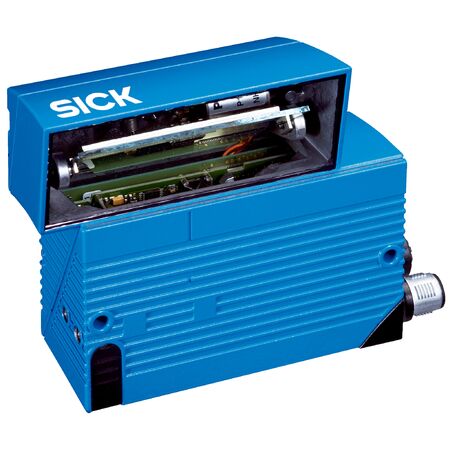

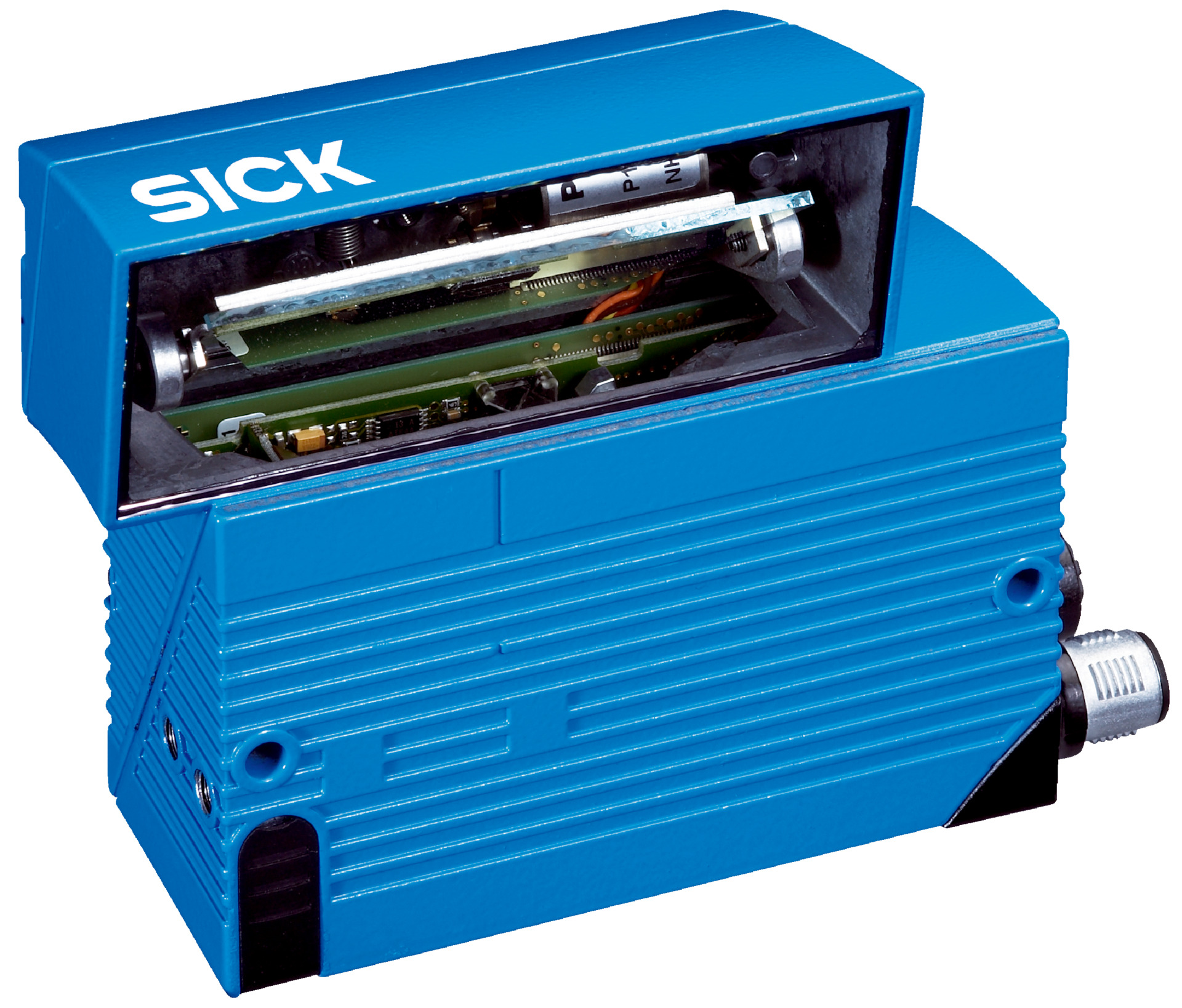

Industrial Barcode Scanner SICK CLV640-6121S01 | Dynamic Focus Control | IP65 Rated | by SICK
The SICK CLV640-6121S01 industrial barcode scanner features a dynamic focus control and an oscillating mirror sensor, making it ideal for industrial automation and manufacturing applications. With a reading distance of 45 mm to 755 mm and support for all current 1D barcode types, this scanner ensures efficient code scanning in logistics and quality control processes. Its robust IP65 rated aluminum housing guarantees durability in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Industrial Barcode Scanner SICK CLV640-6121S01 | Dynamic Focus Control | IP65 Rated | by SICK
Brand: SICK
SKU: 1056544
Alternatively Known As: Oscillating Mirror Barcode Scanner, SICK CLV640 Barcode Reader, Industrial Barcode Scanner, Dynamic Focus Barcode Scanner
Technical Specifications
- Version: Standard Density
- Connection type: Ethernet, PROFINET, EtherNet/IP™, EtherCAT®, Serial, CAN, CANopen, PROFIBUS DP
- Reading field: Oscillating mirror
- Sensor type: Oscillating mirror
- Optical focus: Dynamic focus control
- Light source: Visible red laser, 655 nm
- Light spot: Oval
- Laser class: 2 (IEC 60825-1 compliant)
- Aperture angle: ≤ 50°
- Reading distance: 45 mm to 755 mm
- Scanning frequency: 400 Hz to 1200 Hz
- Code resolution: 0.2 mm to 1 mm
- Oscillating mirror functions: Fixed (adjustable position), oscillating (variable or fixed amplitude), one shot
- Oscillation frequency: 0.5 Hz to 6.25 Hz
- Angle of deflection: –20° to 20°
- Supply voltage: 18 V DC to 30 V DC
- Power consumption: 6.5 W
- Housing material: Aluminum die cast
- Enclosure rating: IP65
- Protection class: III
- Weight: 350 g (without connecting cable)
- MTBF: 100,000 hours
- MTTF (Laser diode): 40,000 hours
- Readable code structures: 1D codes
- Bar code types: All current 1D codes including Code 39, Code 128, GS1 DataBar, UPC, EAN, and more
- Print ratio: 2:1 to 3:1
- Number of codes per scan: 1 to 20 (Standard decoder), 1 to 6 (SMART decoder)
- Number of codes per reading interval: 1 to 50 (auto-discriminating)
- Number of characters per reading interval: 5,000 (500 for multiplexer function in CAN operation)
- Number of multiple readings: 1 to 99
- Data transmission rates: Ethernet 10/100 MBit/s, CAN 20 kbit/s to 1 Mbit/s, Serial 2,400 Baud to 115.2 kBaud
- Indicators: 6 LEDs and acoustic beeper
- Control elements: 2 buttons
- Configuration software: SOPAS ET
- Memory card: Optional MicroSD
- Dimensions (H x L x W): 41mm x 95mm x 107mm
- Weight: 0.35 kg
Key Features
- Standard Density version with oscillating mirror sensor type
- Dynamic focus control with visible red laser light spot (655 nm)
- Reading distance from 45 mm to 755 mm with scanning frequency 400 Hz to 1200 Hz
- Supports all current 1D barcode types including Code 39, Code 128, GS1 DataBar, and more
- Multiple interface options including Ethernet, PROFINET, EtherNet/IP™, EtherCAT®, Serial, CAN, CANopen, and PROFIBUS DP
- IP65 rated aluminum die cast housing with plastic window
- Laser class 2 compliant with IEC 60825-1 standards
- Equipped with 6 LEDs and acoustic beeper indicators
- Configuration via SOPAS ET software and optional MicroSD memory card
Professional Installation Requirements
- Installation and configuration should be performed by qualified personnel familiar with industrial barcode scanning systems and network interfaces to ensure optimal performance and safety.
Applications
- Industrial automation and manufacturing for barcode reading
- Logistics and warehousing for code scanning
- Quality control and traceability in production lines
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Energy-efficient laser technology reduces power consumption
- Durable IP65 housing extends product lifespan, reducing waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK CLV640-6121S01 barcode scanner is available for immediate purchase, ideal for industrial automation and barcode reading applications.
