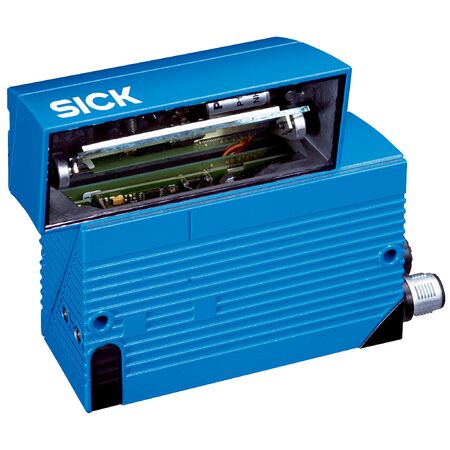

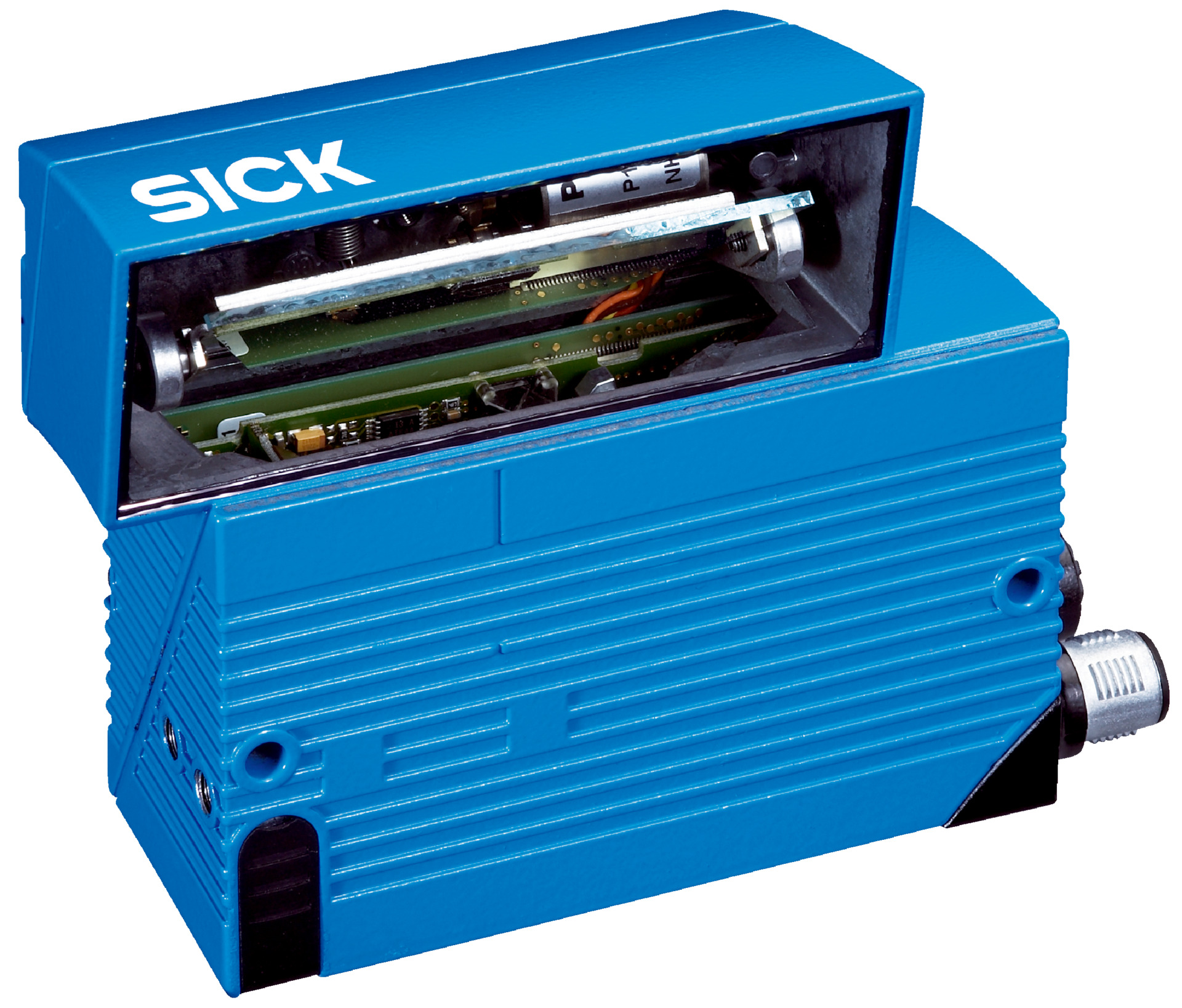

Industrial Barcode Scanner SICK CLV650-6120 | Ethernet & Auto Focus | IP65 Rated | by SICK
The SICK CLV650-6120 Industrial Barcode Scanner features an oscillating mirror reading field and auto focus optical system, making it ideal for industrial automation and logistics applications. With a robust IP65 rated aluminum housing and support for multiple 1D barcode types, this scanner ensures reliable performance in demanding environments. Perfect for manufacturing process control and quality assurance, it offers a reading distance of 125 mm to 1,570 mm and scanning frequencies up to 1,000 Hz.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Industrial Barcode Scanner SICK CLV650-6120 | Ethernet & Auto Focus | IP65 Rated | by SICK
Brand: SICK
SKU: 1042125
Alternatively Known As: Oscillating Mirror Barcode Scanner, SICK CLV650 Barcode Reader, Industrial Barcode Scanner, Ethernet Barcode Scanner
Technical Specifications
- Version: Standard Density
- Connection type: Ethernet and multiple fieldbus options
- Reading field: Oscillating mirror
- Sensor type: Oscillating mirror
- Optical focus: Auto focus
- Light source: Visible red laser, 658 nm
- Laser class: 2 (IEC 60825-1:2014+A11:2021 compliant)
- Aperture angle: ≤ 50°
- Reading distance: 125 mm to 1,570 mm
- Scanning frequency: 600 Hz to 1,000 Hz
- Code resolution: 0.25 mm to 1 mm
- Oscillating mirror functions: Fixed (adjustable position), oscillating (variable or fixed amplitude), one shot
- Oscillation frequency: 0.5 Hz to 6.25 Hz
- Angle of deflection: –20° to 20°
- Supply voltage: 18 V DC to 30 V DC
- Power consumption: 9.5 W
- Housing material: Aluminum die cast
- Window material: Glass
- Enclosure rating: IP65
- Protection class: III
- Weight: 250 g (without connecting cable)
- MTBF: 100,000 hours
- MTTF (Laser diode): 40,000 hours
- Readable code structures: 1D codes
- Supported barcode types: Code 39, Code 128, Code 93, Codabar, GS1-128 / EAN 128, UPC / GTIN / EAN, Interleaved 2 of 5, Pharmacode, GS1 DataBar, Telepen, MSI/Plessey
- Number of codes per scan: 1 to 20 (Standard decoder), 1 to 6 (SMART decoder)
- Number of codes per reading interval: 1 to 50 (auto-discriminating)
- Number of characters per reading interval: 5,000 (500 for multiplexer function in CAN operation)
- Number of multiple readings: 1 to 99
- Data transmission rates: Ethernet 10/100 MBit/s, CAN 20 kbit/s to 1 Mbit/s, Serial 2,400 Baud to 115.2 kBaud
- Indicators: 6 LEDs and acoustic beeper
- Configuration software: SOPAS ET
- Memory card: Optional MicroSD
- Dimensions (H x L x W): 41mm x 95mm x 107mm
- Weight: 0.25 kg
Key Features
- Standard density version with oscillating mirror reading field
- Auto focus optical system with visible red laser light source (658 nm)
- Laser class 2 compliant with IEC 60825-1:2014+A11:2021
- Reading distance from 125 mm to 1,570 mm
- Scanning frequency between 600 Hz and 1,000 Hz
- Supports multiple 1D barcode types including Code 39, Code 128, GS1 DataBar, and more
- Multiple interface options including Ethernet, PROFINET, EtherNet/IP™, EtherCAT®, Serial, CAN, CANopen, and PROFIBUS DP
- Robust aluminum die cast housing with IP65 rating
- 6 LED optical indicators and acoustic beeper for status feedback
- Configuration via SOPAS ET software and optional MicroSD memory card
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper integration with industrial networks and compliance with safety standards.
Applications
- Industrial automation for barcode reading
- Logistics and warehouse management
- Manufacturing process control
- Quality assurance and product tracking
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient laser scanning technology reduces power consumption
- Durable IP65 rated housing minimizes environmental impact by extending product lifespan
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK CLV650-6120 barcode scanner is available for immediate purchase, ideal for industrial automation and barcode reading applications.
