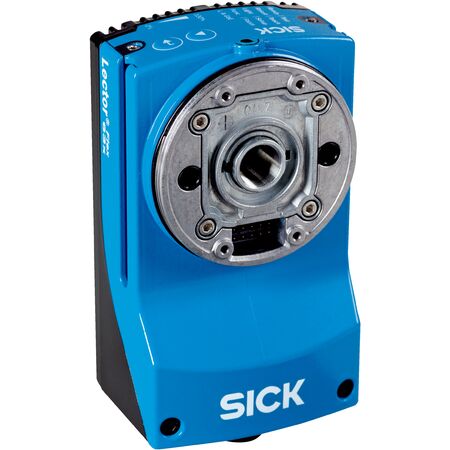

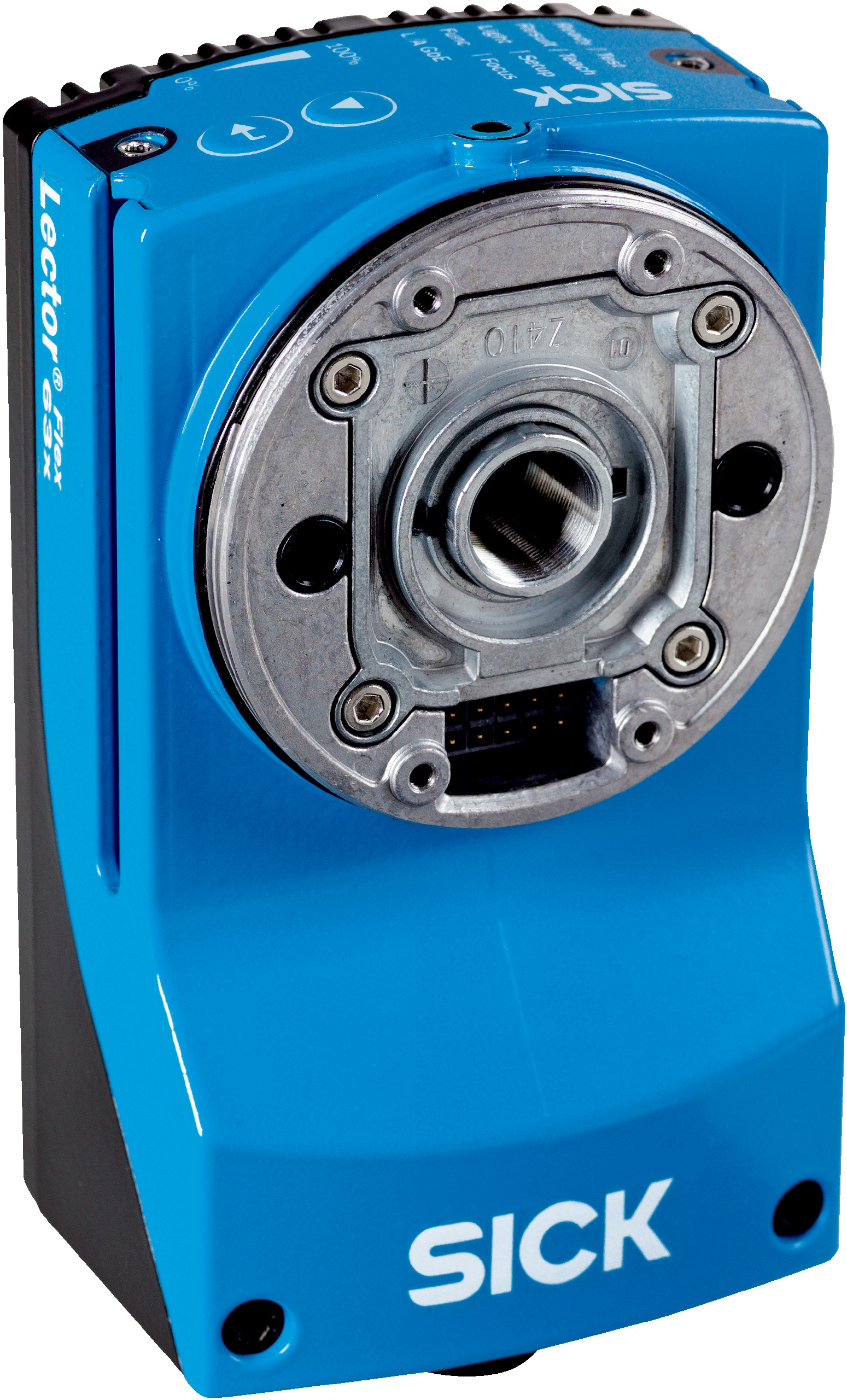

Industrial Barcode Scanner SICK V2D631R | CMOS 1.3MP | IP67 Rated | Adjustable Focus | by SICK
The SICK V2D631R industrial barcode scanner features a high-resolution 1.3 Megapixel CMOS sensor and adjustable manual optical focus, making it perfect for industrial automation and logistics applications. With support for 1D, 2D, and stacked barcode types, this robust scanner is IP67 rated for durability in harsh environments, ensuring reliable performance in quality control and inspection systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor: CMOS monochrome, 1280 x 1024 px (1.3 Megapixel)
- Optical focus: Adjustable manual
- Illumination: Ordered separately as accessories
- Laser alignment aid: Red laser 630-680 nm, Class 1 laser
- Working range: 50 mm to 2200 mm
- Connection types: 1x M12 17-pin plug, 1x M12 8-pin socket (Ethernet 1 Gbit/s), 1x M8 4-pin socket (USB), 1x M12 4-pin socket (illumination control)
- Supply voltage: 12-24 V DC ±20%
- Power consumption: Typical 10 W ±20%
- Output current: ≤ 100 mA
- Housing material: Aluminum die cast
- Window material: Plastic or glass (ordered separately)
- Enclosure rating: IP67
- Electrical safety: EN 60950-1
- Readable code types: 1D, 2D, stacked codes including GS1-128, QR, Data Matrix ECC200, PDF417
- Interfaces: Ethernet (TCP/IP), PROFINET, EtherNet/IP™, Serial (RS-232, RS-422), CAN, PROFIBUS DP
- Digital inputs: 4; Digital outputs: 6; Configurable inputs and outputs
- Indicators: 11 LEDs, beeper
- Operator interface: Web server
- Configuration software: SOPAS ET
- Memory card: Micro SD up to 32 GB (optional)
- Operating temperature: 0°C to +50°C
- Storage temperature: -20°C to +70°C
- Relative humidity: 90%, non-condensing
- Vibration and shock resistance compliant with EN standards
- Dimensions (H x L x W): 46mm x 108mm x 63mm
- Weight: 0.43 kg
Key Features
- Adjustable manual optical focus
- CMOS monochrome sensor with 1.3 Megapixel resolution (1280 x 1024 px)
- Laser alignment aid with red laser (630 nm to 680 nm), Class 1 laser safety
- Supports 1D, 2D, and stacked barcode types including GS1-128, QR code, Data Matrix ECC200, PDF417
- Multiple communication interfaces including Ethernet (1 Gbit/s), PROFINET, EtherNet/IP™, Serial (RS-232, RS-422), CAN, PROFIBUS DP
- IP67 rated aluminum die cast housing for robust industrial use
- Power consumption typically 10 W with 12-24 V DC supply
- Configurable digital inputs and outputs with optical and acoustic indicators
- Web server operator interface and SOPAS ET configuration software
- Optional microSD memory card support for image and data storage
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure proper electrical connections and compliance with safety standards.
Applications
- Industrial automation and manufacturing for barcode reading
- Logistics and warehousing for package tracking
- Quality control and inspection systems
- Pharmaceutical and postal code scanning
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable IP67 housing reduces need for frequent replacements
- Energy-efficient operation with low power consumption (typ. 10 W)
- Supports digital data transmission reducing paper-based processes
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK V2D631R-MXSXB0 barcode scanner is available for immediate purchase, ideal for industrial automation, logistics, and quality control applications.
