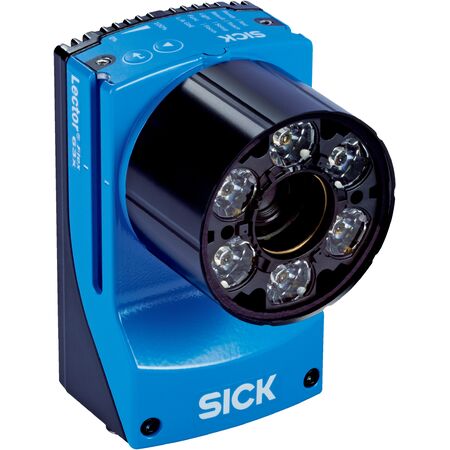

Industrial Barcode Scanner SICK V2D631R | CMOS 1.3MP | IP67 Rated | Adjustable Focus | by SICK
The Industrial Barcode Scanner SICK V2D631R is designed for high-performance barcode reading in industrial automation. Featuring a CMOS monochrome sensor with 1.3 Megapixel resolution and adjustable manual optical focus, it ensures precise scanning across various applications. With an IP67 rated aluminum housing and integrated white LED illumination, this scanner is built for durability and reliability in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor: CMOS monochrome, 1280 x 1024 px (1.3 Megapixel)
- Optical focus: Adjustable manual
- Illumination: Integrated white LED
- Feedback spot: Green (525 nm ±15 nm) and Red (630 nm ±20 nm) LEDs
- Alignment aid: Red laser 630-680 nm, Class 1 laser
- Lens: C-mount (compact), 1/1.8" optical format, 25 mm focal length, aperture 8
- Scanning frequency: ≤ 50 Hz at 1.3 Megapixels
- Code resolution: ≥ 0.1 mm
- Working range: 50 mm to 2200 mm
- Connection types: M12 17-pin plug, M12 8-pin socket (Ethernet 1 Gbit/s), M8 4-pin socket (USB), M12 4-pin socket (illumination control)
- Supply voltage: 12 V DC to 24 V DC ±20%
- Power consumption: Typical 10 W ±20%
- Output current: ≤ 100 mA
- Housing material: Aluminum die cast
- Window material: Plastic
- Enclosure rating: IP67
- Electrical safety: EN 60950-1
- Readable code types: 1D, 2D, stacked codes including GS1-128, QR, Data Matrix ECC200, PDF417
- Interfaces: Ethernet (TCP/IP), PROFINET, EtherNet/IP™, Serial (RS-232, RS-422), CAN, PROFIBUS DP (optional)
- Digital inputs: 4
- Digital outputs: 6
- Operator interface: Web server
- Configuration software: SOPAS ET
- Memory card: Micro SD up to 32 GB
- Operating temperature: 0°C to +50°C
- Storage temperature: -20°C to +70°C
- Relative humidity: 90%, non-condensing
- EMC: EN 61000-6-2, EN 61000-6-4
- Vibration resistance: EN 60068-2-6
- Shock resistance: EN 60068-2-27
- Dimensions (H x L x W): 74mm x 108mm x 63mm
- Weight: 0.59 kg
Key Features
- Adjustable manual optical focus
- CMOS monochrome sensor with 1.3 Megapixel resolution (1280 x 1024 px)
- Integrated white LED illumination
- Visible green and red LED feedback spots
- Red laser alignment aid (Class 1 laser)
- Supports 1D, 2D, and stacked barcode types including GS1-128, QR code, Data Matrix ECC200
- Multiple interface options including Ethernet, PROFINET, EtherNet/IP™, Serial, CAN, PROFIBUS DP
- IP67 rated aluminum die cast housing for robust industrial use
- Operating temperature range 0°C to +50°C
- Configurable digital inputs and outputs with multiple feedback indicators
- Supports image and data storage via microSD card and FTP
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure proper integration with industrial systems and compliance with electrical safety standards.
Applications
- Industrial automation for barcode reading
- Logistics and warehouse management
- Manufacturing process control
- Quality assurance and traceability
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable IP67 rated housing reduces need for frequent replacements
- Energy-efficient LED illumination minimizes power consumption
- Supports digital data transmission reducing paper usage
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK V2D631R-MWMFB4 barcode scanner is available for immediate purchase, ideal for industrial automation and barcode reading applications.
