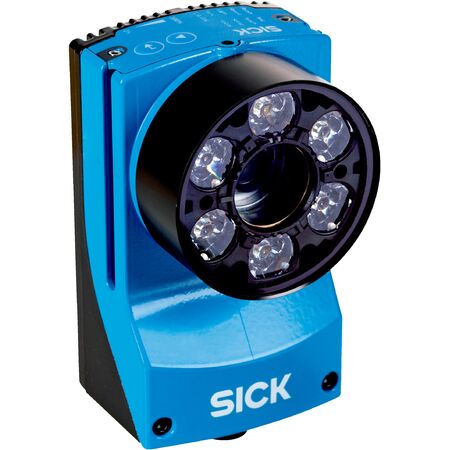

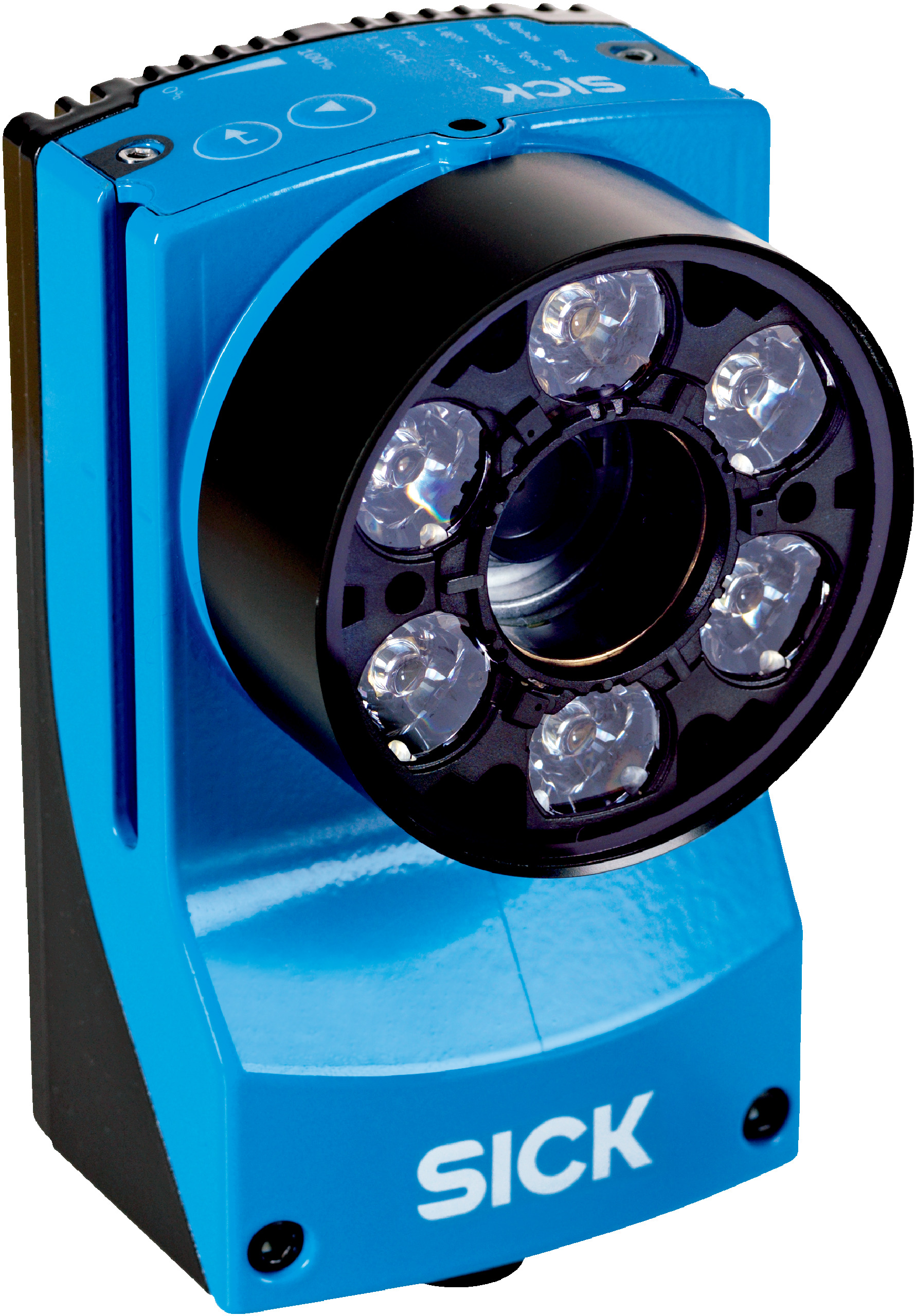

Industrial Barcode Scanner SICK V2D632R | 1.9 Megapixel CMOS | IP67 Rated | by SICK
The SICK V2D632R-MBMFB4 Industrial Barcode Scanner features a 1.9 Megapixel CMOS sensor and adjustable manual optical focus, making it perfect for industrial automation and logistics applications. With integrated blue LED illumination and multiple communication interfaces, this scanner ensures reliable performance in quality control and inspection systems, even in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor: CMOS monochrome, 1600 x 1200 px (1.9 Megapixel)
- Optical focus: Adjustable manual
- Illumination: Integrated blue LED
- Feedback spots: Green (525 nm ±15 nm) and Red (630 nm ±20 nm) LEDs
- Laser alignment aid: Red laser, Class 1 (630-680 nm)
- Lens: C-mount (compact), 1/1.8" optical format, 25 mm focal length, aperture 8
- Scanning frequency: ≤ 50 Hz at 1.9 megapixels
- Code resolution: ≥ 0.1 mm
- Working range: 50 mm to 2200 mm
- Connection types: M12 17-pin plug, M12 8-pin socket (Ethernet 1 Gbit/s), M8 4-pin socket (USB), M12 4-pin socket (illumination control)
- Supply voltage: 12 V DC to 24 V DC ±20%
- Power consumption: Typical 10 W ±20%
- Output current: ≤ 100 mA
- Housing material: Aluminum die cast
- Window material: Plastic
- Enclosure rating: IP67
- Electrical safety: EN 60950-1
- Readable code types: 1D, 2D, stacked codes including GS1-128, QR, Data Matrix ECC200, PDF417
- Interfaces: Ethernet (TCP/IP), PROFINET, EtherNet/IP, Serial (RS-232, RS-422), CAN, PROFIBUS DP
- Digital inputs: 4
- Digital outputs: 6
- Operator interface: Web server
- Configuration software: SOPAS ET
- Memory card: Optional microSD up to 32 GB
- Operating temperature: 0°C to +50°C
- Storage temperature: -20°C to +70°C
- Relative humidity: 90%, non-condensing
- EMC: EN 61000-6-2, EN 61000-6-4
- Vibration resistance: EN 60068-2-6
- Shock resistance: EN 60068-2-27
- Dimensions (H x L x W): 59mm x 108mm x 63mm
- Weight: 0.45 kg
Key Features
- Adjustable manual optical focus
- CMOS monochrome sensor with 1.9 Megapixel resolution (1600 x 1200 px)
- Integrated blue LED illumination
- Visible green and red LED feedback spots
- Red laser alignment aid (Class 1 laser)
- Supports 1D, 2D, and stacked barcode types including GS1, QR, Data Matrix, PDF417
- Multiple communication interfaces including Ethernet, PROFINET, EtherNet/IP, Serial, CAN, PROFIBUS DP
- IP67 rated aluminum die cast housing for robust industrial use
- Operating temperature range 0°C to +50°C
- Configurable digital inputs and outputs with multiple feedback indicators
- Web server operator interface and SOPAS ET configuration software
- Optional microSD memory card for image and data storage
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor integration and electrical safety standards.
Applications
- Industrial automation and manufacturing for barcode reading
- Logistics and warehousing for package tracking
- Quality control and inspection systems
- Pharmaceutical and postal code scanning
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable IP67 rated housing reduces need for frequent replacements
- Energy-efficient LED illumination minimizes power consumption
- Supports digital data transmission reducing paper usage
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK V2D632R-MBMFB4 barcode scanner is available for immediate purchase, ideal for industrial automation, logistics, and quality control applications.
