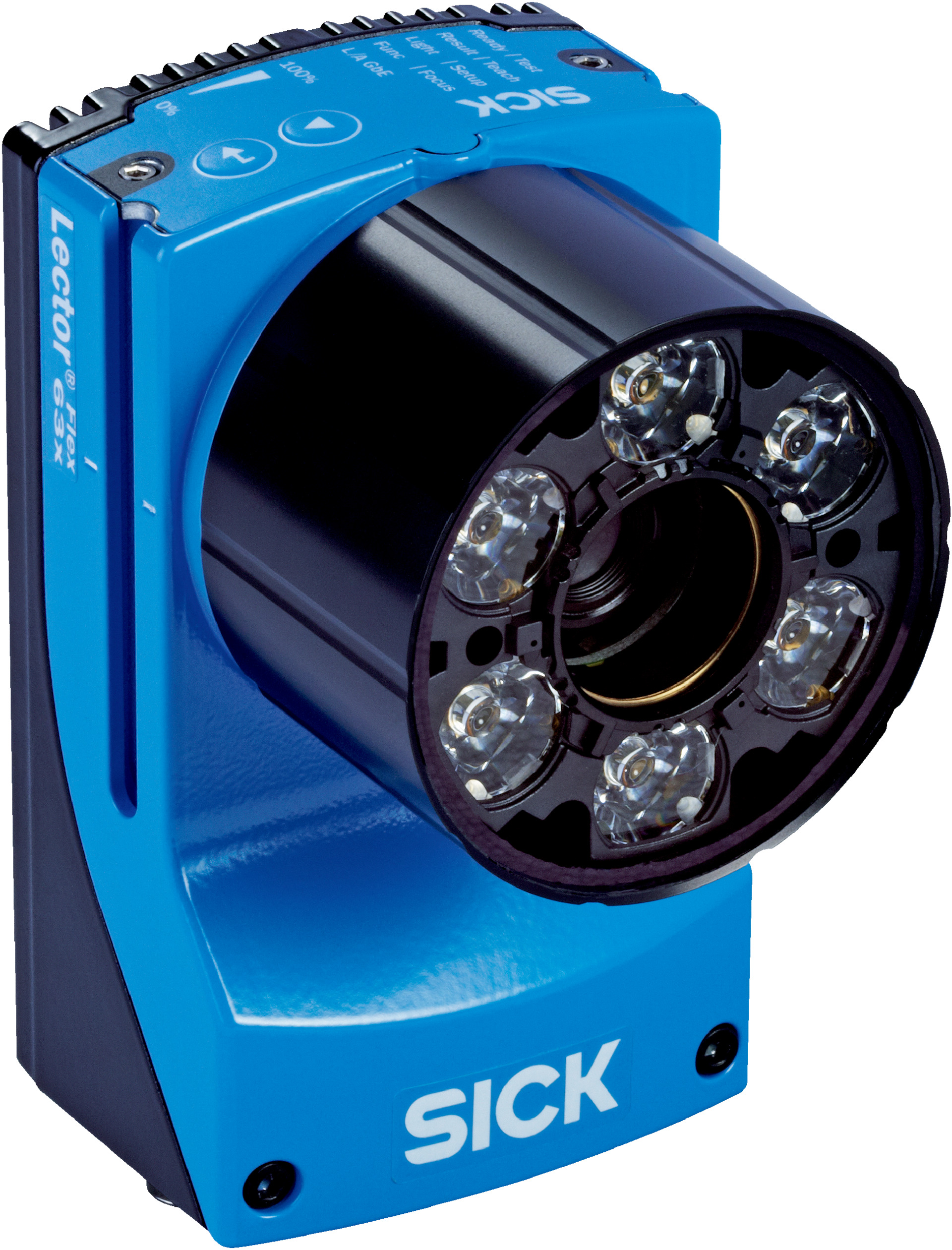

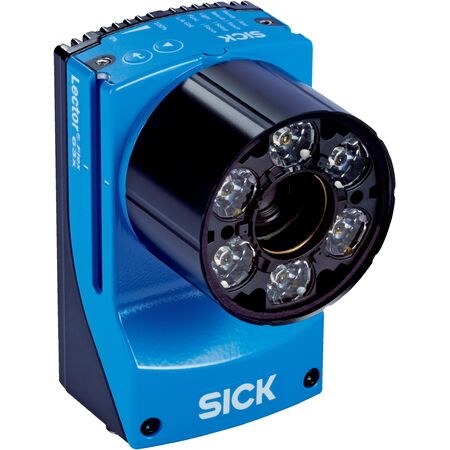

Industrial Barcode Scanner SICK V2D632R | CMOS 1.9MP | IP67 Rated | Adjustable Focus | by SICK
The SICK V2D632R-MKMEB1 Industrial Barcode Scanner features a high-resolution 1.9 Megapixel CMOS sensor and adjustable manual optical focus, making it perfect for industrial automation and logistics applications. With integrated white LED illumination and robust IP67 rated aluminum housing, this scanner ensures reliable performance in demanding environments, supporting various barcode types including QR codes and Data Matrix. Ideal for quality control and package tracking, it offers multiple interface options for seamless integration.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor: CMOS monochrome, 1600 x 1200 px (1.9 Megapixel)
- Optical focus: Adjustable manual
- Illumination: Integrated white LED
- Feedback spot: Green (525 nm ±15 nm) and Red (630 nm ±20 nm) LEDs
- Alignment aid: Red laser 630-680 nm, Class 1 laser compliant with IEC 60825-1 Ed.3
- Lens: C-mount (compact), 1/1.8" optical format, 16 mm focal length, aperture 8
- Scanning frequency: ≤ 50 Hz at 1.9 megapixels
- Code resolution: ≥ 0.1 mm
- Working range: 50 mm to 2200 mm
- Connection types: M12 17-pin plug, M12 8-pin socket (Ethernet 1 Gbit/s), M8 4-pin socket (USB), M12 4-pin socket (external illumination control)
- Supply voltage: 12 V DC to 24 V DC ±20%
- Power consumption: Typical 10 W ±20%
- Output current: ≤ 100 mA
- Housing material: Aluminum die cast
- Window material: Plastic
- Enclosure rating: IP67
- Electrical safety: EN 60950-1 (2011-01)
- Readable code structures: 1D, stacked, 2D codes
- Supported barcode types: GS1-128, UPC, EAN, Interleaved 2 of 5, Pharmacode, GS1 DataBar, Code 39, Code 128, Codabar, Code 32, Code 93, USPS, Australian Post, Dutch KIX Post, Royal Mail, Swedish Post
- 2D code types: Data Matrix ECC200, GS1 Data-Matrix, MaxiCode, QR code
- Stacked code types: PDF417
- Code qualification: ISO/IEC 16022, 15415, 18004
- Interfaces: Ethernet TCP/IP, SICK CAN sensor network CSN, PROFINET, EtherNet/IP™, Serial RS-232/422, CAN, PROFIBUS DP (optional)
- Digital inputs: 4
- Digital outputs: 6
- Optical indicators: 11 LEDs, 16 LED bar graphs, 1 green/red feedback spot
- Acoustic indicators: Configurable beeper
- Control elements: 2 buttons
- Operator interface: Web server
- Configuration software: SOPAS ET
- Memory card: Optional microSD up to 32 GB
- Data storage: Image and data storage via microSD and FTP
- Operating temperature: 0 °C to +50 °C
- Storage temperature: -20 °C to +70 °C
- Relative humidity: 90%, non-condensing
- Vibration resistance: EN 60068-2-6
- Shock resistance: EN 60068-2-27
- EMC: EN 61000-6-2, EN 61000-6-4
- Dimensions (H x L x W): 96mm x 108mm x 63mm
- Weight: 0.59 kg
Key Features
- Adjustable manual optical focus
- CMOS monochrome sensor with 1.9 Megapixel resolution (1600 x 1200 px)
- Integrated white LED illumination
- Visible green and red LED feedback spots
- Red laser alignment aid (Class 1 laser compliant with IEC 60825-1 Ed.3)
- Supports 1D, 2D, and stacked barcode types including GS1-128, QR code, Data Matrix ECC200
- Multiple interface options including Ethernet, PROFINET, EtherNet/IP™, Serial, CAN, PROFIBUS DP
- IP67 rated aluminum die cast housing for robust industrial use
- Configurable digital inputs and outputs with multiple status LEDs and acoustic beeper
- Web server operator interface and SOPAS ET configuration software
- Optional microSD memory card for image and data storage
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper electrical connections and compliance with safety standards.
Applications
- Industrial automation and manufacturing for barcode reading
- Logistics and warehousing for package tracking
- Quality control and inspection systems
- Retail and pharmaceutical for product identification
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Energy-efficient LED illumination reduces power consumption
- Durable IP67 rated housing extends product lifespan, reducing waste
- Supports digital data transmission reducing paper usage
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK V2D632R-MKMEB1 barcode scanner is available for immediate purchase, ideal for industrial automation, logistics, and quality control applications.
