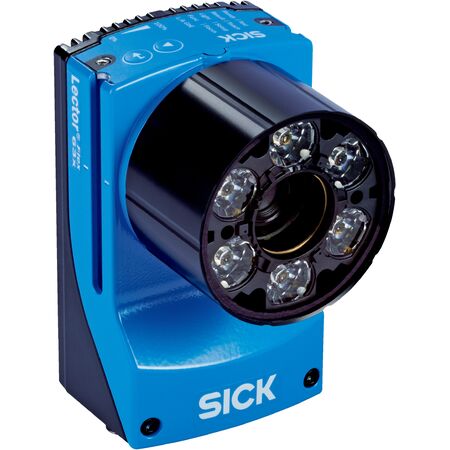

Industrial Barcode Scanner SICK V2D632R | CMOS 1.9 MP | IP67 Rated | by SICK
The Industrial Barcode Scanner SICK V2D632R features a high-resolution CMOS monochrome sensor with 1.9 MP for precise barcode reading. With adjustable manual optical focus and integrated white LED illumination, it's perfect for industrial automation, logistics, and quality control applications. Its robust IP67 rated aluminum housing ensures durability in harsh environments, making it an ideal choice for demanding settings.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor: CMOS monochrome, 1600 x 1200 px (1.9 MP)
- Optical focus: Adjustable manual
- Illumination: Integrated white LED
- Feedback spot: Green (525 nm) and Red (630 nm) LEDs
- Laser alignment aid: Red laser, Class 1
- Lens: C-mount (compact), 1/1.8" optical format, 35 mm focal length, aperture 8
- Scanning frequency: Up to 50 Hz at full resolution
- Code resolution: ≥ 0.1 mm
- Working range: 50 mm to 2200 mm
- Connection types: M12 17-pin plug, M12 8-pin socket (Ethernet 1 Gbit/s), M8 4-pin socket (USB), M12 4-pin socket (illumination control)
- Supply voltage: 12 V DC to 24 V DC ±20%
- Power consumption: Typical 10 W ±20%
- Output current: ≤ 100 mA
- Housing material: Aluminum die cast
- Window material: Plastic
- Enclosure rating: IP67
- Electrical safety: EN 60950-1
- Interfaces: Ethernet (TCP/IP), PROFINET, EtherNet/IP, Serial (RS-232, RS-422), CAN, PROFIBUS DP (optional)
- Digital inputs: 4
- Digital outputs: 6
- Operator interface: Web server
- Configuration software: SOPAS ET
- Memory card: Micro SD up to 32 GB (optional)
- Operating temperature: 0°C to +50°C
- Storage temperature: -20°C to +70°C
- Relative humidity: 90%, non-condensing
- Dimensions (H x L x W): 96mm x 108mm x 63mm
- Weight: 0.59 kg
Key Features
- Adjustable manual optical focus
- CMOS monochrome sensor with 1.9 Megapixel resolution (1600 x 1200 px)
- Integrated white LED illumination
- Visible green and red LED feedback spots
- Red laser alignment aid (Class 1 laser)
- Supports 1D, 2D, and stacked barcode types including GS1, QR, Data Matrix, PDF417
- Multiple communication interfaces including Ethernet, PROFINET, EtherNet/IP, Serial, CAN, PROFIBUS DP
- IP67 rated aluminum die cast housing for robust industrial use
- Operating temperature range 0°C to +50°C
- Configurable digital inputs and outputs with multiple status indicators
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper configuration and compliance with safety standards.
Applications
- Industrial automation and manufacturing for barcode reading
- Logistics and warehousing for package tracking
- Quality control and inspection systems
- Pharmaceutical and postal code scanning
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Energy-efficient LED illumination reduces power consumption
- Durable IP67 rated housing extends product lifespan, reducing waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK V2D632R-MWMGB1 barcode scanner is available for immediate purchase, ideal for industrial automation, logistics, and quality control applications.
