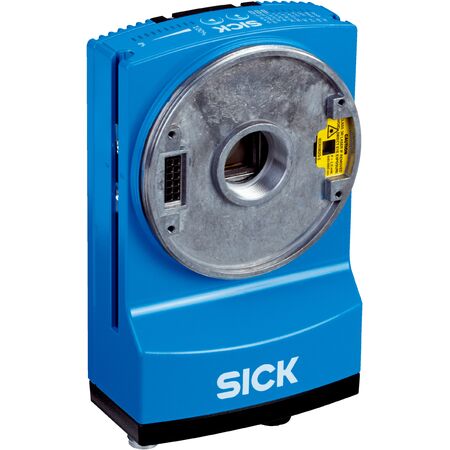

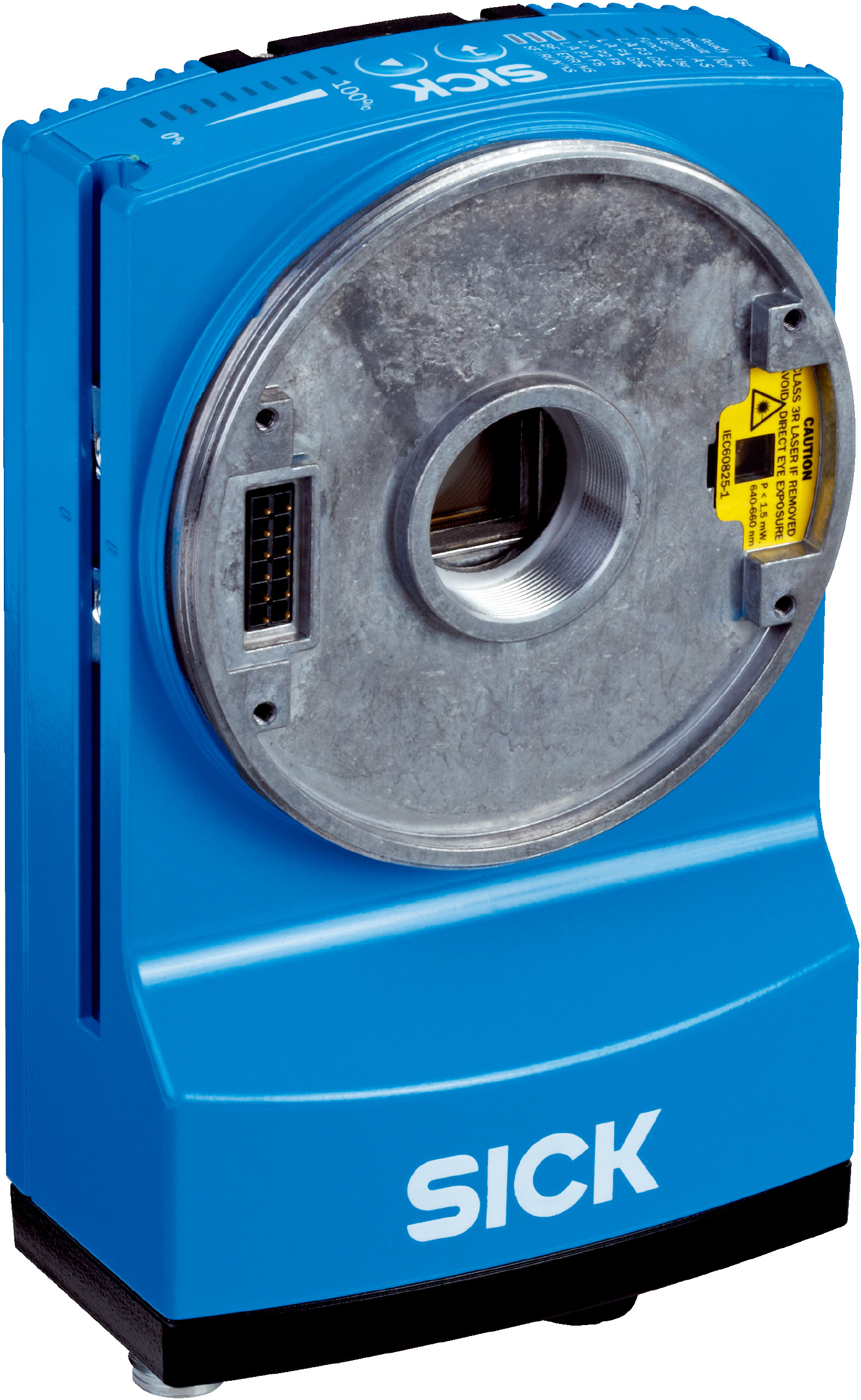

Industrial Barcode Scanner SICK V2D652R | 2.1 Megapixels | IP65 Rated | Adjustable Focus | by SICK
The SICK V2D652R-MCXXA6 industrial barcode scanner features a high-resolution 2.1 Megapixel CMOS sensor and adjustable manual optical focus, making it perfect for industrial automation and logistics applications. With robust IP65-rated housing and multiple communication interfaces, it ensures reliable performance in harsh environments, enhancing efficiency in quality control and traceability tasks.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor: CMOS monochrome, 2048 x 1088 pixels (2.1 Megapixels)
- Optical focus: Adjustable manual
- Illumination: Ordered separately as accessories
- Laser alignment aid: Red laser, 630 nm to 680 nm, Class 1
- Scanning frequency: 70 Hz at 2 Megapixels resolution
- Code resolution: ≥ 0.1 mm
- Working range: 300 mm to 2200 mm
- Connection types: 1 x M12 17-pin plug, 2 x M12 8-pin sockets, 1 x M8 4-pin socket
- Supply voltage: 24 V DC ± 20%
- Power consumption: Typical 20 W ± 20%
- Output current: ≤ 100 mA
- Housing material: Aluminum die cast, color light blue (RAL 5012)
- Window material: Plastic or glass (ordered separately)
- Enclosure rating: IP65
- Protection class: III
- Electrical safety: EN 60950-1 (2011-01)
- MTBF: 100,000 hours
- Readable code types: 1D, 2D, stacked codes including GS1-128, QR, Data Matrix, PDF417
- Interfaces: Ethernet (TCP/IP), PROFINET, EtherNet/IP™, Serial (RS-232/422), CAN, PROFIBUS DP
- Digital inputs: 4; Digital outputs: 6; Configurable inputs and outputs
- Indicators: 21 LEDs, beeper/buzzer
- Operating temperature: 0°C to +50°C
- Storage temperature: -20°C to +70°C
- Relative humidity: 90%, non-condensing
- Ambient light immunity: 2000 lx on code
- Dimensions (H x L x W): 46mm x 142mm x 89mm
- Weight: 0.635 kg
Key Features
- Adjustable manual optical focus with 1" optical format
- High resolution CMOS monochrome sensor with 2.1 Megapixels (2048 x 1088 px)
- Supports reading of 1D, 2D, and stacked barcodes including GS1-128, QR code, Data Matrix ECC200, PDF417
- Laser alignment aid with Class 1 laser safety compliance
- Robust aluminum die-cast housing with IP65 rating for harsh environments
- Multiple communication interfaces including Ethernet, PROFINET, EtherNet/IP™, Serial RS-232/422, CAN, and PROFIBUS DP
- Internal image storage of 512 MB and optional microSD card support up to 16 GB
- Operating temperature range from 0°C to +50°C with high ambient light immunity
- Comprehensive LED and acoustic indicators for status feedback
- Configurable digital inputs and outputs for flexible integration
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician to ensure proper electrical connections and compliance with safety standards.
Applications
- Industrial automation and manufacturing for barcode reading
- Logistics and warehousing for package and product identification
- Quality control and inspection systems
- Traceability in pharmaceutical and retail sectors
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
- AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing electronic waste
- Energy-efficient operation with typical power consumption of 20 W
- Supports digital data transmission reducing paper-based processes
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK V2D652R-MCXXA6 barcode scanner is available for immediate purchase, ideal for industrial automation, logistics, and quality control applications.
