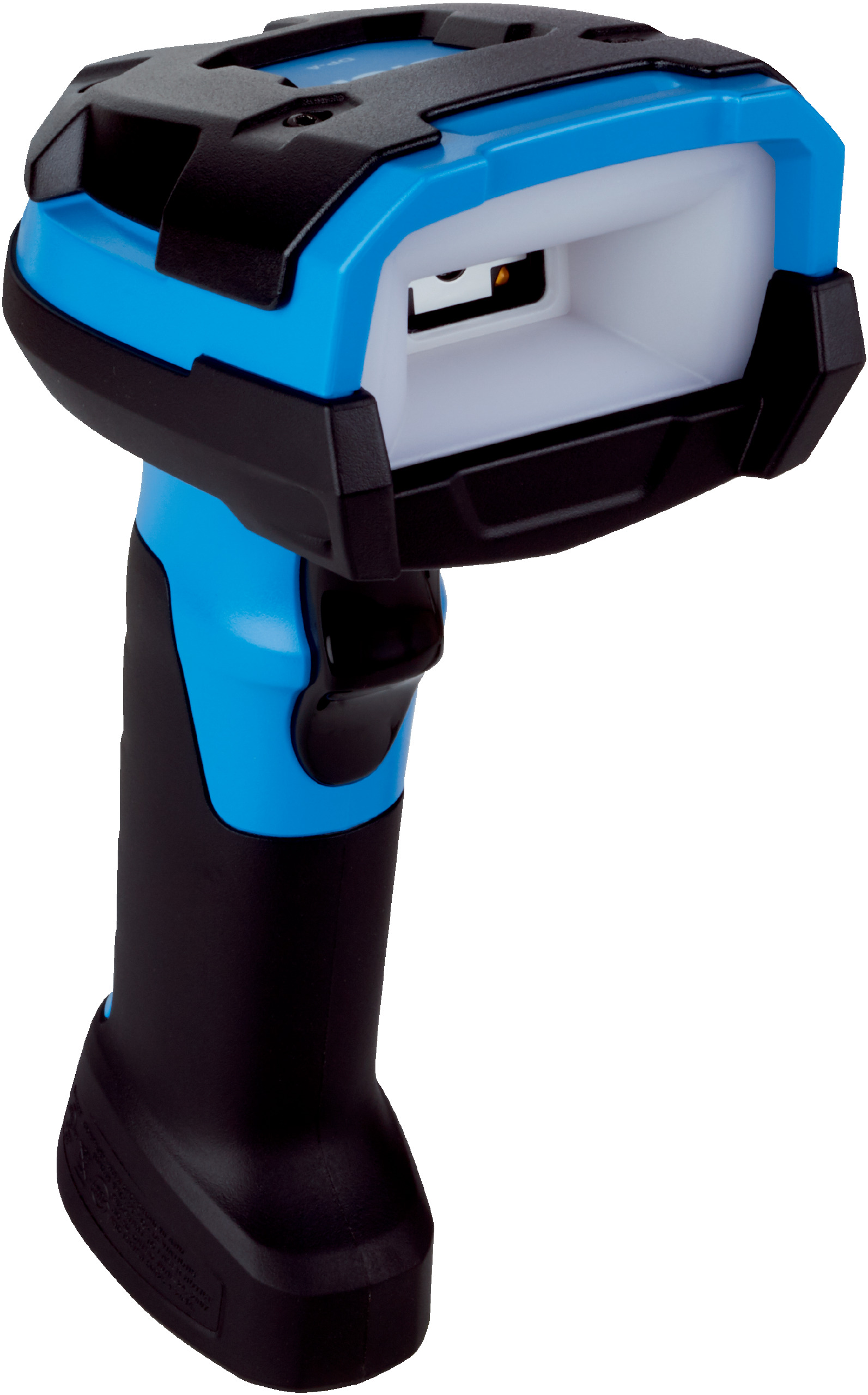

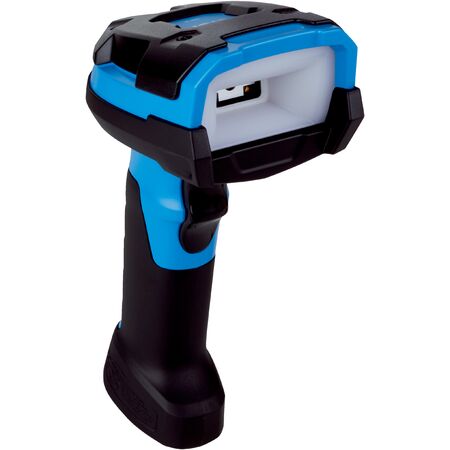

Industrial Barcode Scanner SICK ZS3608 | 1280px x 960px Resolution | IP65 & IP68 Rated | by SICK
The Industrial Barcode Scanner SICK ZS3608 is designed for high-resolution barcode reading in demanding environments. With a sensor resolution of 1280px x 960px and an impressive reading distance of 3 mm to 125 mm, it excels in industrial applications. Its robust IP65 and IP68 ratings ensure durability against dust and water, making it perfect for manufacturing and logistics operations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 5 V DC ±10% via host, 12 V DC ±5% external supply
- Current consumption: 360 mA during operation, 100 mA standby
- Weight: 304 g
- Enclosure rating: IP65 and IP68
- Sensor resolution: 1,280 px x 960 px
- Light source: LED visible warm white and red (634 nm), diffuse
- Reading distance: 3 mm to 125 mm
- Code resolution: ≥ 0.08 mm and ≥ 0.13 mm
- Supported codes: 1D, 2D, stacked, direct-marked codes including Code 39, QR code, Data Matrix, PDF417, and more
- Interfaces: Ethernet (TCP/IP), PROFINET, EtherCAT, PROFIBUS DP, Serial RS-232 TTL, USB
- Indicators: 2 LEDs for operational status and good read, beeper, vibration
- Operating temperature: -30 °C to +50 °C
- Storage temperature: -40 °C to +70 °C
- Shock resistance: Multiple falls from 2.4 m onto concrete
- Ambient light immunity: 108,000 lx
- Dimensions (H x L x W): 185mm x 132mm x 77mm
- Weight: 0.3 kg
Key Features
- Standard Density (DPA) version with cable connection variant
- Sensor resolution of 1,280 px x 960 px
- LED light source: visible warm white and red (634 nm), diffuse
- Alignment aid with red LED (630 nm)
- Reading distance from 3 mm to 125 mm
- Omni-directional code alignment
- Supports a wide range of 1D, 2D, and stacked barcode types
- Battery power of 3,100 mAh enabling over 100,000 scans per full charge
- Code buffer capacity of 9,000 codes for batch scanning
- Multiple interface options including Ethernet, PROFINET, EtherCAT, PROFIBUS DP, Serial RS-232 TTL, and USB
- Shock resistant to multiple falls from 2.4 m onto concrete
- Operating temperature range from -30 °C to +50 °C
- Enclosure rated IP65 and IP68 for dust and water protection
Professional Installation Requirements
- Installation and configuration by qualified personnel recommended to ensure proper integration and operation.
Applications
- Industrial applications requiring high-resolution barcode scanning
- Reading 1D, 2D, stacked, and direct-marked codes in manufacturing and logistics
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces replacement frequency and electronic waste
- Energy-efficient operation with low current consumption
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK ZS3608-DPA0262VZWW industrial barcode scanner is available for immediate purchase, ideal for industrial and manufacturing environments requiring reliable barcode reading.
