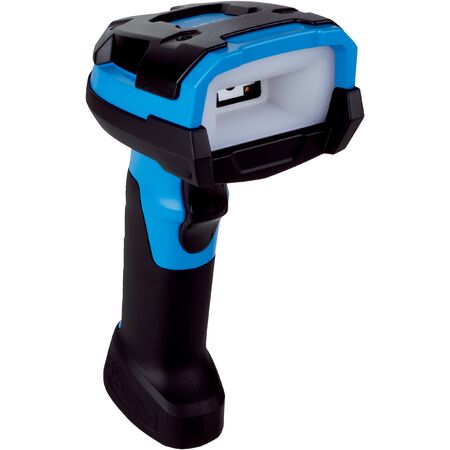

Industrial Barcode Scanner SICK ZS3608-DPA0262VZCN | 1280px x 960px Resolution | IP65 & IP68 Rated | by SICK
The Industrial Barcode Scanner SICK ZS3608-DPA0262VZCN features a high sensor resolution of 1280 px x 960 px and an LED light source for optimal performance in various lighting conditions. Designed for industrial applications, it supports multiple code types and offers robust protection with IP65 and IP68 ratings, making it ideal for demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor resolution: 1,280 px x 960 px
- Light source: LED, Visible, Warm white and Red (634 nm, diffuse)
- Reading distance: 3 mm to 125 mm
- Code resolution: ≥ 0.08 mm and ≥ 0.13 mm
- Supply voltage: 5 V DC ±10% via host, 12 V DC ±5% external supply
- Current consumption: 360 mA operation, 100 mA standby
- Enclosure rating: IP65, IP68
- Weight: 304 g
- Dimensions: 132 mm x 77 mm x 185 mm
- Readable code types: 1D, 2D, stacked, direct-marked codes
- Interfaces: Ethernet (TCP/IP), PROFINET, EtherCAT, Serial RS-232 TTL, PROFIBUS DP, USB
- Optical indicators: 2 LEDs for operational status and good read
- Acoustic indicators: Beeper with off switch
- Shock resistance: Multiple falls from 2.4 m onto concrete
- Operating temperature: -30 °C to +50 °C
- Storage temperature: -40 °C to +70 °C
- Relative humidity: 95%, non-condensing
- Ambient light immunity: 108,000 lx
- Dimensions (H x L x W): 185mm x 132mm x 77mm
- Weight: 0.3 kg
Key Features
- Standard Density (DPA) version
- Cable connection variant scanner design
- Sensor resolution of 1,280 px x 960 px
- LED light source: Visible, Warm white and Red (634 nm, diffuse)
- Alignment aid with Red LED (630 nm)
- Reading distance from 3 mm to 125 mm
- Omni-directional code alignment
- Supports 1D, 2D, stacked, and direct-marked codes
- Multiple interface options including Ethernet, PROFINET, EtherCAT, Serial RS-232 TTL, PROFIBUS DP, and USB
- Optical indicators with 2 LEDs for operational status and good read
- Acoustic beeper with switch off option
- Vibration feedback
- Configuration software: Z-Up Tool
- Shock resistant to multiple falls from 2.4 m onto concrete
- Wide ambient operating temperature range from -30 °C to +50 °C
- High ambient light immunity up to 108,000 lx
- IP65 and IP68 rated enclosure for robust protection
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure proper integration with industrial systems and compliance with electrical standards.
Applications
- Industrial application for barcode scanning and code reading
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable IP65/IP68 housing reduces need for frequent replacements
- Energy-efficient LED light sources minimize power consumption
- Long operational life reduces electronic waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK ZS3608-DPA0262VZCN Industrial Barcode Scanner is available for immediate purchase, ideal for industrial barcode scanning applications requiring high resolution and robust performance.
