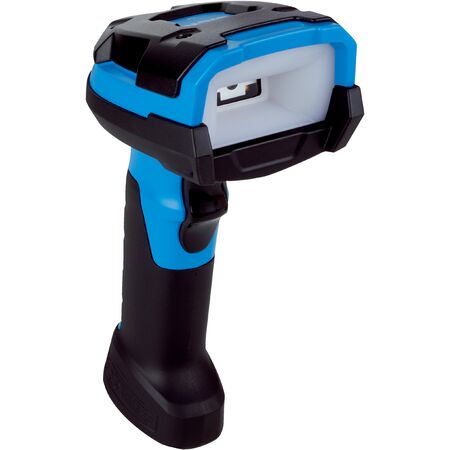

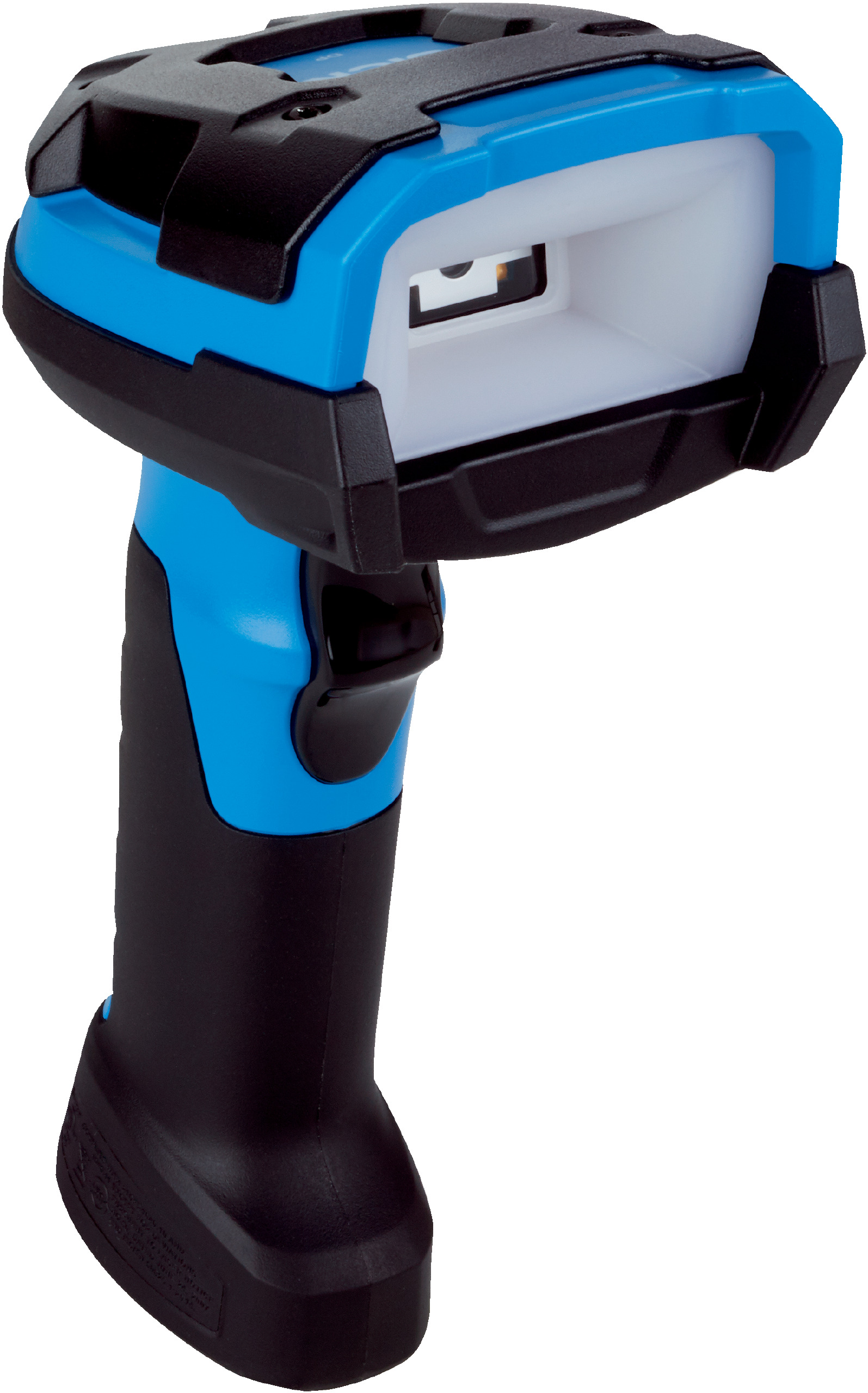

Industrial Barcode Scanner SICK ZS3608-DP | 1280px x 960px Resolution | IP65 & IP68 Rated | by SICK
The Industrial Barcode Scanner SICK ZS3608-DP is designed for high-density code reading, featuring a 1280px x 960px sensor resolution and robust IP65/IP68 enclosure ratings. Ideal for industrial applications, this scanner supports a wide range of 1D and 2D codes, ensuring precise scanning in challenging environments. With multiple interface options and high ambient light immunity, it’s perfect for seamless integration into your industrial systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor resolution: 1,280 px x 960 px
- Light source: LED, Visible, Warm white and Red (634 nm, diffuse)
- Reading distance: 0 mm to 86 mm
- Code resolution: ≥ 0.08 mm and ≥ 0.13 mm
- Supply voltage: 5 V DC ±10% via host, 12 V DC ±5% external supply
- Current consumption: 360 mA operation, 100 mA standby
- Enclosure rating: IP65 and IP68
- Weight: 304 g
- Readable code structures: 1D, 2D, stacked, direct-marked codes
- Supported barcode types: Code 39, Code 128, GS1-128, UPC/EAN, MSI/Plessey, Interleaved 2 of 5, GS1 DataBar, Australian Post, US Planet, British Post, Japan Post, Dutch KIX Post
- Supported 2D codes: Data Matrix, QR code, MicroQR-Code, Aztec, MaxiCode, TLC-39, Chinese Sensible (Han Xin)
- Stacked codes: PDF417, MicroPDF417, Code 49, Code 16K, Composite, Codablock F
- Code buffer: 9,000 codes (EAN) for batch scanning
- Interfaces: Ethernet (TCP/IP), PROFINET, EtherCAT, Serial RS-232 TTL, PROFIBUS DP, USB
- Indicators: 2 LEDs, beeper, vibration
- Operating temperature: -30°C to +50°C
- Storage temperature: -40°C to +70°C
- Relative humidity: 95%, non-condensing
- Shock resistance: Multiple falls from 2.4 m onto concrete
- Ambient light immunity: 108,000 lx
- Dimensions (H x L x W): 185mm x 132mm x 77mm
- Weight: 0.3 kg
Key Features
- High Density (DP) version for precise scanning
- Cable connection variant scanner design
- Sensor resolution of 1,280 px x 960 px
- LED light source: Visible, Warm white and Red (634 nm, diffuse)
- Alignment aid with Red LED at 630 nm
- Omni-directional code alignment
- Supports 1D, 2D, stacked, and direct-marked codes
- Multiple interface options including Ethernet, PROFINET, EtherCAT, Serial RS-232 TTL, PROFIBUS DP, and USB
- Optical indicators with 2 LEDs for operational status and good read
- Acoustic beeper with on/off option
- Vibration feedback
- Configuration software: Z-Up Tool
- Robust with IP65 and IP68 enclosure rating
- Shock resistant to multiple falls from 2.4 m concrete height
- Wide ambient operating temperature range from -30°C to +50°C
- High ambient light immunity up to 108,000 lx
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure proper integration with industrial systems and compliance with safety standards.
Applications
- Industrial application for barcode and code scanning
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces replacement frequency and electronic waste
- Energy-efficient LED light sources minimize power consumption
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms.
Available Now
The SICK ZS3608-DP20263VZCN industrial scanner is available for immediate purchase, ideal for industrial barcode scanning applications requiring high precision and durability.
