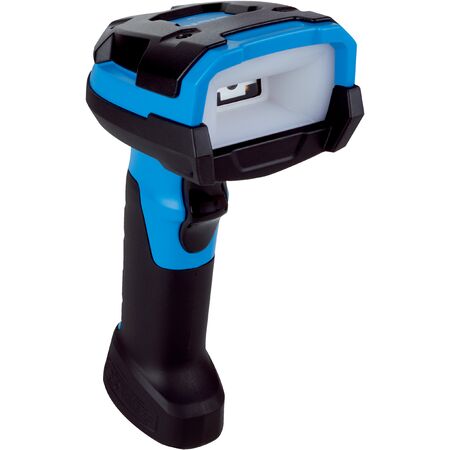

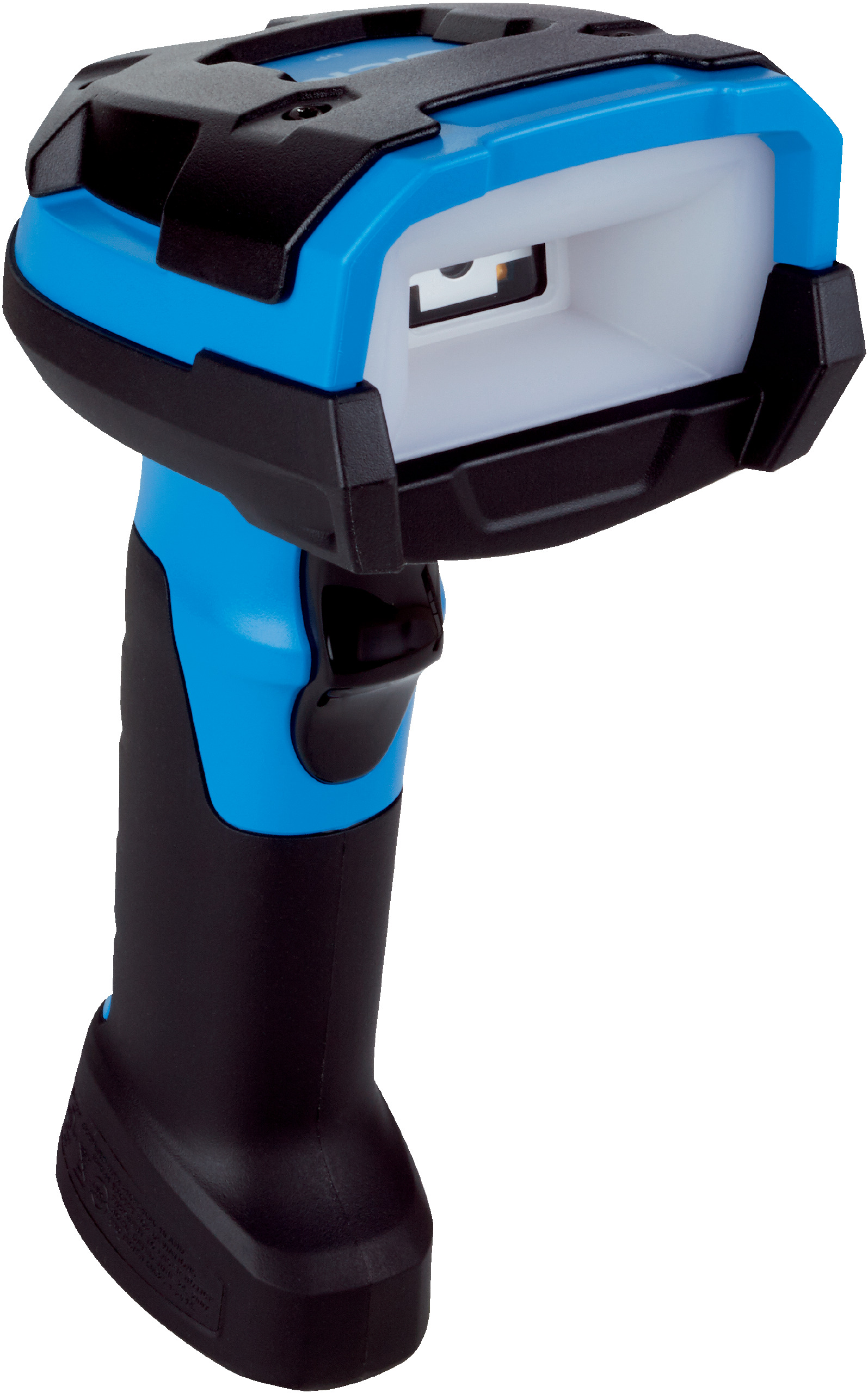

Industrial Barcode Scanner SICK ZS3608-DP20263VZK | High Density Reading | IP65 & IP68 Rated | by SICK
The Industrial Barcode Scanner SICK ZS3608-DP20263VZK is engineered for high-density code reading, featuring a robust design with IP65 and IP68 ratings. Ideal for industrial applications, it supports 1D, 2D, and stacked codes, ensuring reliable performance in challenging environments. With multiple interface options and a wide operating temperature range from -30°C to +50°C, this scanner is perfect for demanding industrial settings.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor resolution: 1280 px x 960 px
- Light source: LED visible warm white and red (634 nm diffuse)
- Reading distance: 0 mm to 86 mm
- Code resolution: ≥ 0.08 mm and ≥ 0.13 mm
- Supply voltage: 5 V DC ±10% via host, 12 V DC ±5% external supply
- Current consumption: 360 mA operation, 100 mA standby
- Enclosure rating: IP65 and IP68
- Weight: 304 g
- Readable code structures: 1D, 2D, stacked, direct-marked codes
- Battery: 3100 mAh supporting over 100,000 scans
- Code buffer: 9000 codes (EAN) for batch scanning
- Interfaces: Ethernet (TCP/IP), PROFINET, EtherCAT, PROFIBUS DP, Serial RS-232 TTL, USB
- Indicators: 2 LEDs for operational status and good read, beeper, vibration
- Shock resistance: Multiple falls from 2.4 m concrete
- Operating temperature: -30°C to +50°C
- Storage temperature: -40°C to +70°C
- Humidity: 95% non-condensing
- Ambient light immunity: 108,000 lx
- Dimensions (H x L x W): 185mm x 132mm x 77mm
- Weight: 0.3 kg
Key Features
- High Density (DP) version for precise code reading
- Omni-directional code alignment
- Reads 1D, 2D, stacked, and direct-marked codes
- Multiple interface options including Ethernet, PROFINET, EtherCAT, PROFIBUS DP, Serial RS-232 TTL, and USB
- LED and acoustic indicators with vibration feedback
- Robust housing with IP65 and IP68 enclosure rating
- Shock resistant to multiple falls from 2.4 m concrete
- Wide ambient operating temperature range from -30°C to +50°C
- Battery power supports over 100,000 scans per charge
Professional Installation Requirements
- Installation and configuration should be performed by qualified personnel familiar with industrial scanning equipment and network integration.
Applications
- Industrial application for barcode scanning and code reading
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces replacement frequency and electronic waste
- Energy efficient operation with low current consumption
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK ZS3608-DP20263VZK industrial barcode scanner is available for immediate purchase, ideal for industrial environments requiring high density and reliable code reading.
