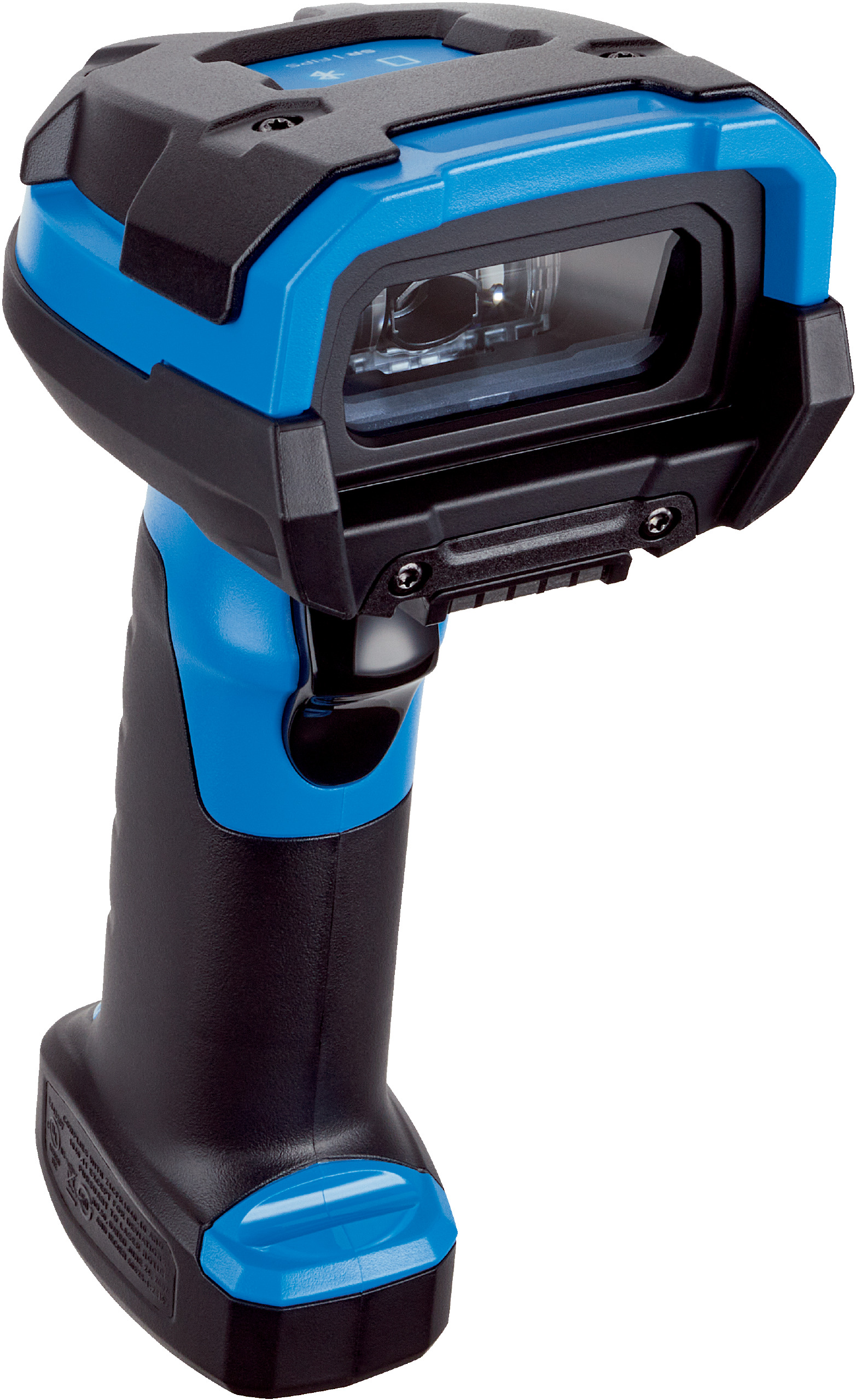

Industrial Barcode Scanner | Standard Range | 1D Code Reader | IP65 & IP68 Rated | by SICK
The Industrial Barcode Scanner is designed for reliable 1D code reading in industrial applications. With a standard range and high code resolution, it supports over 100,000 scans per charge, making it ideal for data capture in demanding environments. Its IP65 and IP68 ratings ensure durability against dust and water, while multiple interface options provide seamless integration into existing systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 5 V DC ±10% via host, 12 V DC ±5% external supply
- Light source: LED visible red 617 nm, laser visible red 655 nm
- Reading distance: 0 mm to 1067 mm
- Code buffer: 9,000 codes for batch scanning
- Battery capacity: 3,100 mAh
- Enclosure rating: IP65 and IP68
- Weight: 304 g
- Shock resistance: Multiple falls from 3 m onto concrete
- Operating temperature: –30 °C to +50 °C
- Storage temperature: –40 °C to +70 °C
- Relative humidity: 95%, non-condensing
- Ambient light immunity: 108,000 lx
- Interfaces: Ethernet (TCP/IP), PROFINET, EtherCAT, PROFIBUS DP, Serial RS-232 TTL, USB
- Indicators: 2 LEDs, beeper, vibration feedback
- Configuration software: Z-Up Tool
- Dimensions (H x L x W): 185mm x 132mm x 77mm
- Weight: 0.304 kg
Key Features
- Standard Range (SR) version for reliable scanning
- Cable connection variant scanner design
- Reads 1D codes including Code 39, Code 128, GS1 DataBar, and more
- High code resolution of ≥ 0.102 mm
- Battery power supports over 100,000 scans per charge
- Multiple interface options including Ethernet, PROFINET, EtherCAT, PROFIBUS DP, Serial RS-232 TTL, and USB
- Optical and acoustic indicators with vibration feedback
- Shock resistant to multiple falls from 3 meters onto concrete
- Wide ambient operating temperature range from –30 °C to +50 °C
- High ambient light immunity up to 108,000 lx
- IP65 and IP68 rated enclosure for dust and water protection
Professional Installation Requirements
- Installation and configuration should be performed by qualified personnel familiar with industrial barcode scanning systems and network integration.
Applications
- Industrial application for barcode scanning and data capture
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces replacement frequency and electronic waste
- Energy-efficient operation with low power consumption
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now

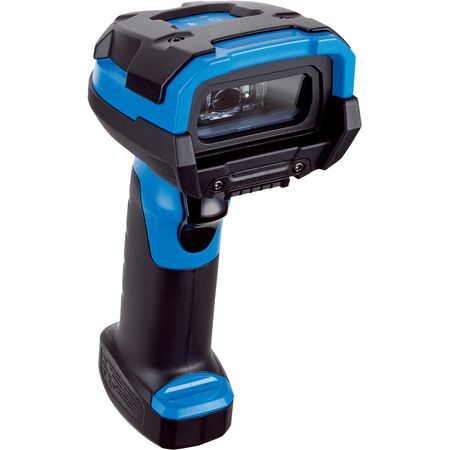

The SICK ZI3608-SR00263VZWW Industrial Standard Range Barcode Scanner is available for immediate purchase, ideal for industrial environments requiring reliable 1D barcode reading.
