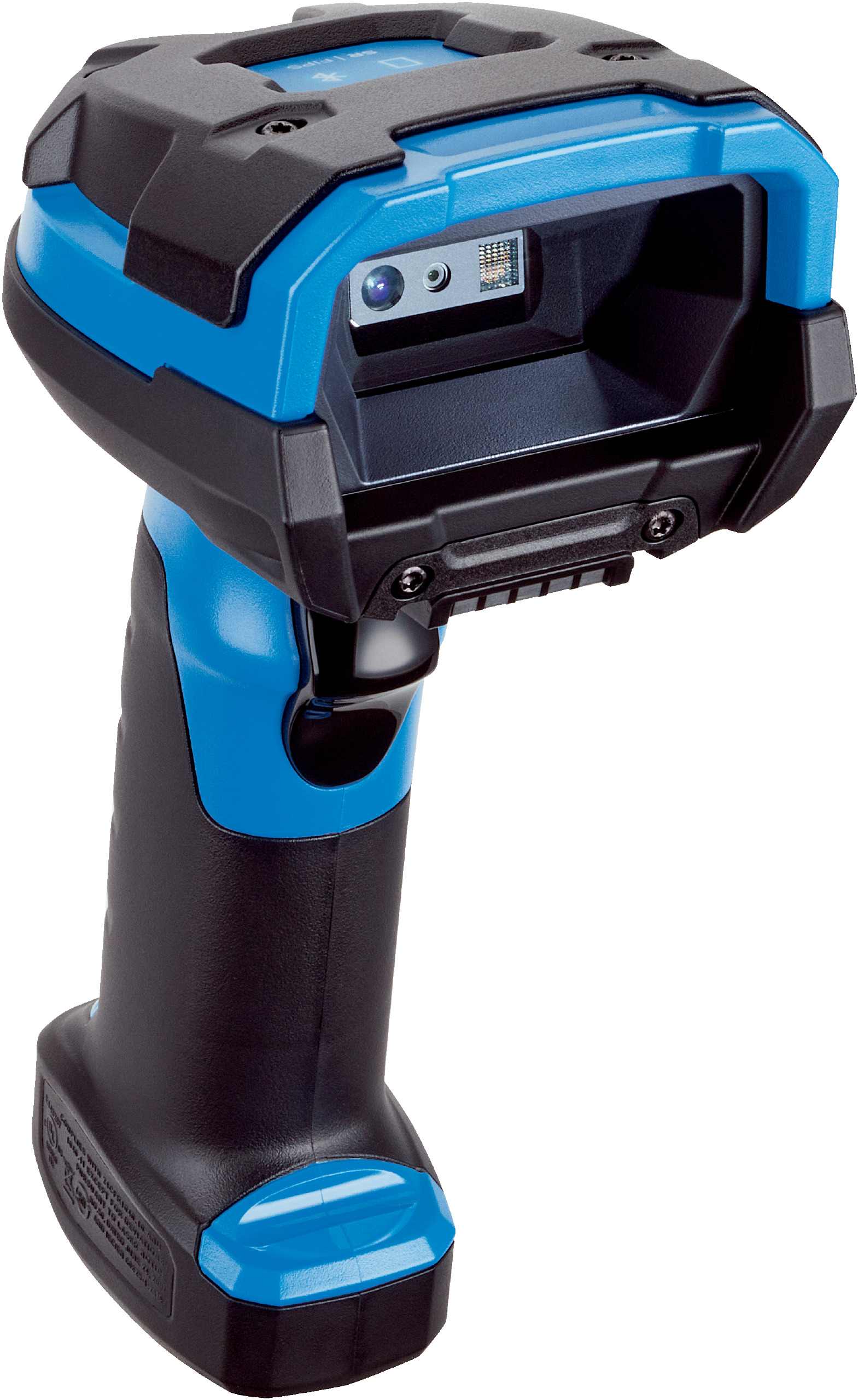

Industrial Barcode Scanner | Standard Range | IP65 & IP68 Rated | 1D/2D Code Reading | by SICK
The Industrial Barcode Scanner is designed for versatile scanning in industrial applications, featuring a standard range and robust IP65/IP68 enclosure. With the ability to read 1D, 2D, Stacked, and Digimarc® codes, it ensures reliable performance in various environments. Ideal for manufacturing and logistics, this scanner offers multiple interface options and high code resolution for efficient operations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Industrial Barcode Scanner | Standard Range | IP65 & IP68 Rated | 1D/2D Code Reading | by SICK
Brand: SICK
SKU: 6080544
Alternatively Known As: Industrial Barcode Scanner, Standard Range Barcode Reader, SICK ZS3608 Scanner, Cable Connection Barcode Scanner
Technical Specifications
- Light source: LED visible red 660 nm and laser visible red 610 nm
- Reading distance: 30 mm to 1,520 mm
- Code resolution: ≥ 0.13 mm and ≥ 0.19 mm
- Supply voltage: 5 V DC ±10% via host, 12 V DC ±5% external supply
- Enclosure rating: IP65 and IP68
- Weight: 305 g
- Readable code types: 1D, 2D, Stacked, Digimarc®
- Supported barcodes: Code 39, Code 93, Code 128, GS1-128, UPC/EAN, MSI/Plessey, Interleaved 2 of 5, GS1 DataBar, various postal codes, OCR symbologies
- Interfaces: Ethernet (TCP/IP), PROFINET, EtherCAT®, PROFIBUS DP, Serial RS-232 TTL, USB
- Indicators: 2 LEDs, acoustic beeper, vibration
- Operating temperature: –30 °C to +50 °C
- Storage temperature: –40 °C to +70 °C
- Relative humidity: 95% non-condensing
- Shock resistance: Multiple falls from 3 m onto concrete
- Ambient light immunity: 108,000 lx
- Code buffer: 9,000 codes
- Dimensions (H x L x W): 185mm x 132mm x 77mm
- Weight: 0.305 kg
Key Features
- Standard Range (SR) version for versatile scanning
- Cable connection variant scanner design
- Reads 1D, 2D, Stacked, and Digimarc® code structures
- Omni-directional code alignment
- High code resolution ≥ 0.13 mm and ≥ 0.19 mm
- Multiple interface options including Ethernet, PROFINET, EtherCAT®, PROFIBUS DP, Serial RS-232 TTL, and USB
- Optical indicators with 2 LEDs for operational status and good read
- Acoustic beeper with on/off switch
- Vibration feedback
- Robust IP65 and IP68 rated enclosure
- Shock resistant to multiple falls from 3 m onto concrete
- Wide ambient operating temperature range from –30 °C to +50 °C
- High ambient light immunity up to 108,000 lx
- Battery power of 3,100 mAh enabling over 100,000 scans per full charge
- Code buffer capacity of 9,000 codes for batch scanning
- Configuration software: Z-Up Tool
Professional Installation Requirements
- Installation and configuration should be performed by qualified personnel familiar with industrial barcode scanning systems and network integration.
Applications
- Industrial application for barcode scanning and code reading
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces replacement frequency and electronic waste
- Energy-efficient operation with low power consumption
- Long battery life reduces charging frequency and energy use
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now

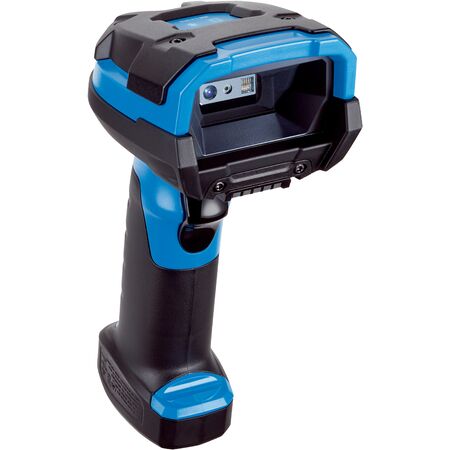

The SICK ZS3608-SR20263VZK Industrial Standard Range Barcode Scanner is available for immediate purchase, ideal for industrial barcode scanning applications requiring robust and versatile performance.
