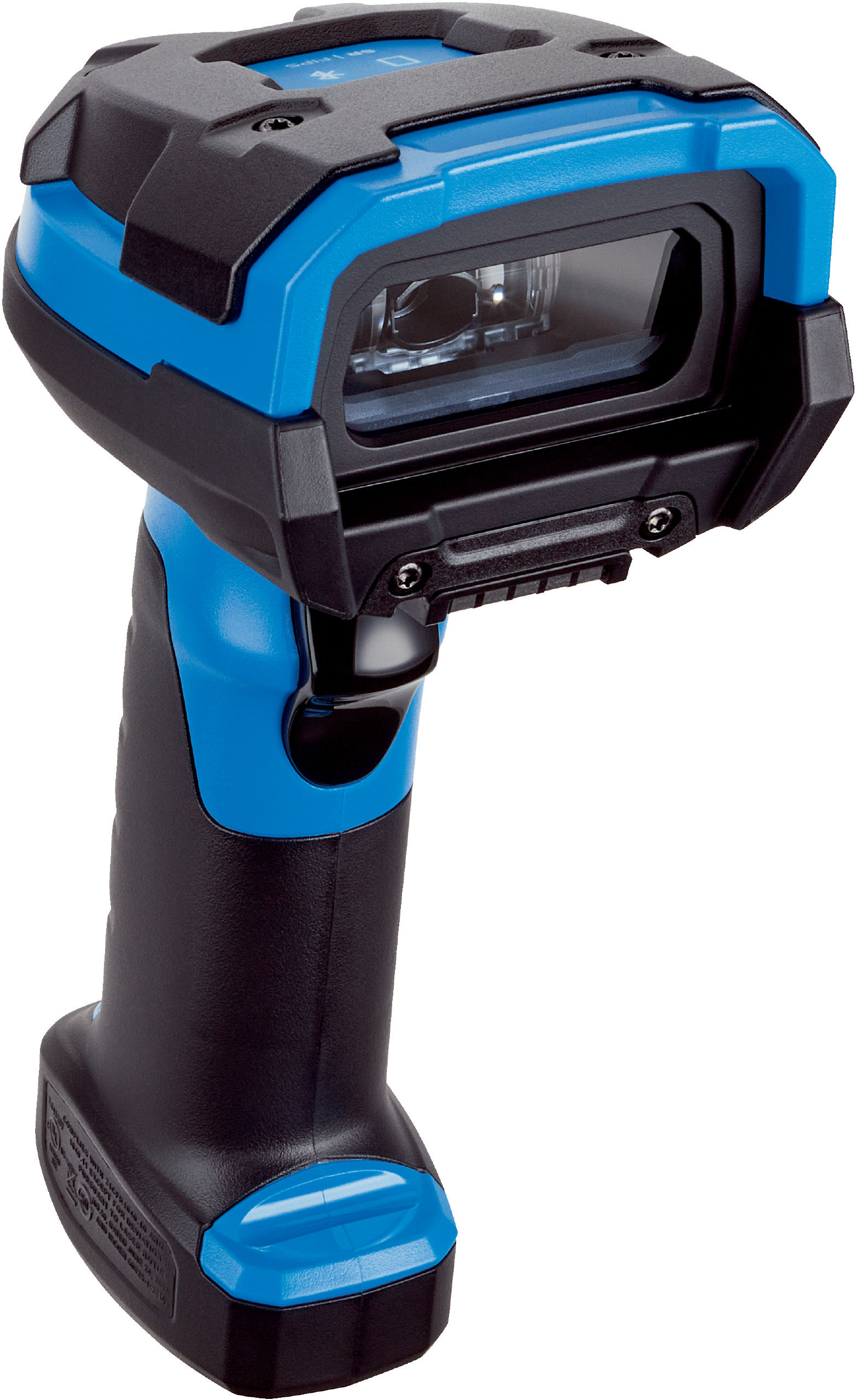

Industrial Barcode Scanner | Standard Range | IP65 & IP68 Rated | 1D Code Reader | by SICK
The Industrial Barcode Scanner is designed for reliable scanning in industrial applications, featuring a standard range for reading 1D codes with high resolution. With robust IP65 and IP68 ratings, it withstands harsh environments, making it ideal for manufacturing and logistics. Enjoy over 100,000 scans per charge with its powerful 3,100 mAh battery and a code buffer capacity of 9,000 codes for efficient batch processing.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Light source: LED visible red 617 nm and laser visible red 655 nm
- Reading distance: 0 mm to 1,067 mm
- Supply voltage: 5 V DC ±10% via host, 12 V DC ±5% external supply
- Enclosure rating: IP65 and IP68
- Weight: 304 g
- Readable code structures: 1D codes
- Battery capacity: 3,100 mAh
- Code buffer: 9,000 codes
- Interfaces: Ethernet (TCP/IP), PROFINET, EtherCAT, PROFIBUS DP, Serial RS-232 TTL, USB
- Indicators: 2 LEDs, acoustic beeper, vibration
- Shock resistance: Multiple falls from 3 m onto concrete
- Operating temperature: -30°C to +50°C
- Storage temperature: -40°C to +70°C
- Relative humidity: 95% non-condensing
- Ambient light immunity: 108,000 lx
- Dimensions (H x L x W): 185mm x 132mm x 77mm
- Weight: 0.304 kg
Key Features
- Standard Range (SR) version for reliable scanning
- Cable connection variant scanner design
- Reads 1D codes including Code 39, Code 128, GS1 DataBar, and various postal codes
- High code resolution of ≥ 0.102 mm
- Battery power of 3,100 mAh enabling over 100,000 scans per full charge
- Code buffer capacity of 9,000 codes for batch scanning
- Multiple interface options including Ethernet, PROFINET, EtherCAT, PROFIBUS DP, Serial RS-232 TTL, and USB
- Optical indicators with 2 LEDs for operational status and good read
- Acoustic beeper with mute option and vibration feedback
- Robust IP65 and IP68 rated enclosure for harsh environments
- Shock resistant to multiple falls from 3 m onto concrete
- Wide ambient operating temperature range from -30°C to +50°C
- High ambient light immunity up to 108,000 lx
Professional Installation Requirements
- Installation and configuration should be performed by qualified personnel familiar with industrial barcode scanning equipment and electrical standards.
Applications
- Industrial application for barcode scanning and identification
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing electronic waste
- Energy-efficient operation with low power consumption
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now

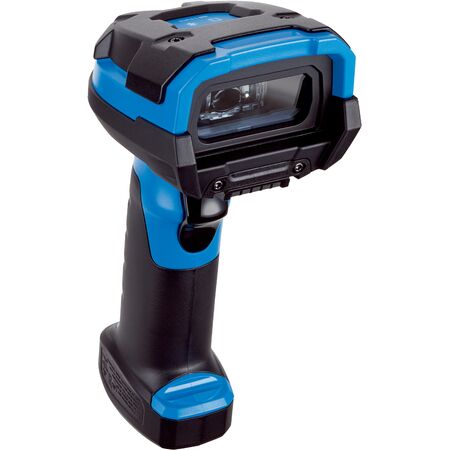

The SICK ZI3608-SR00263VZK Industrial Standard Range Barcode Scanner is available for immediate purchase, ideal for industrial barcode scanning applications.
