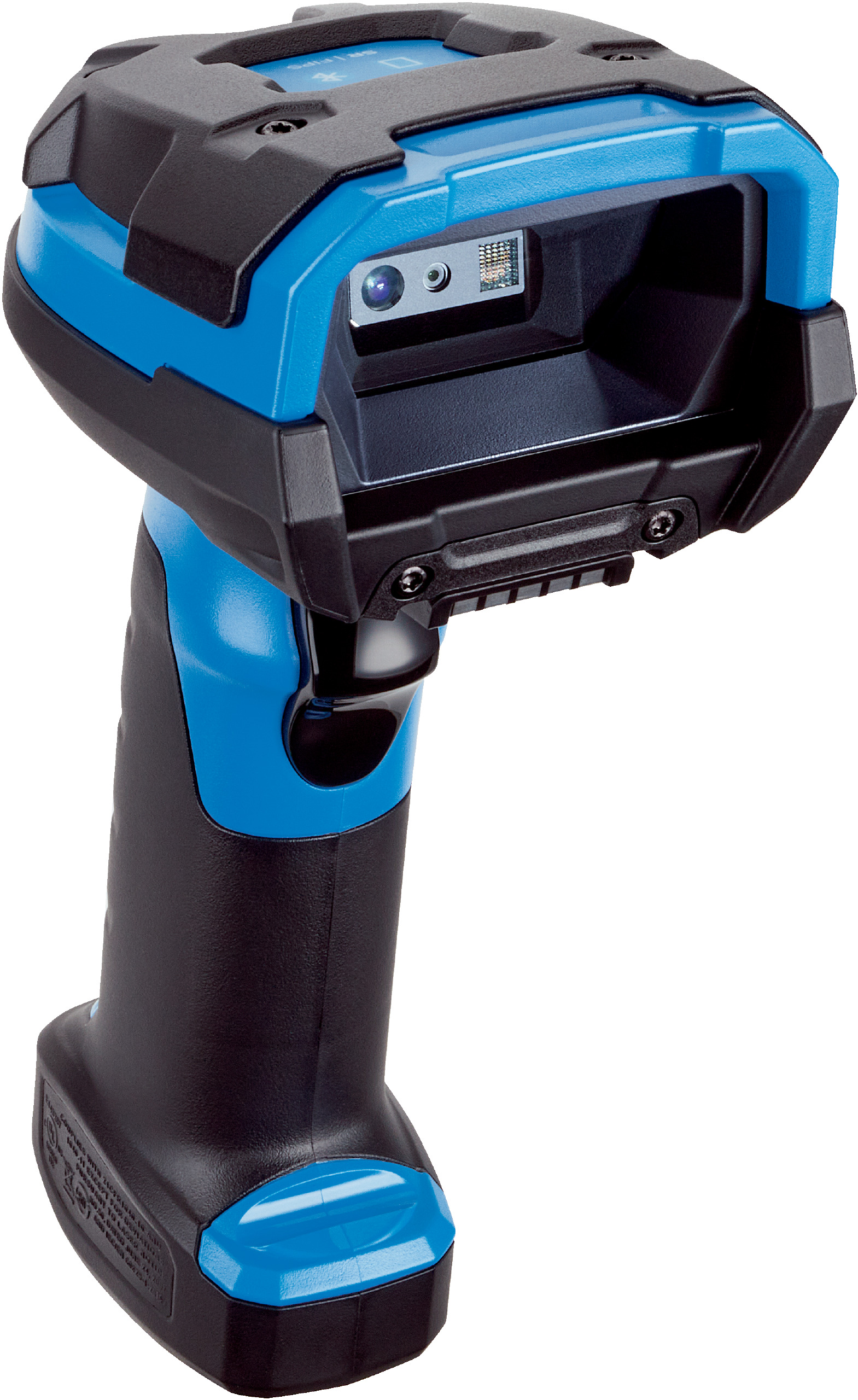

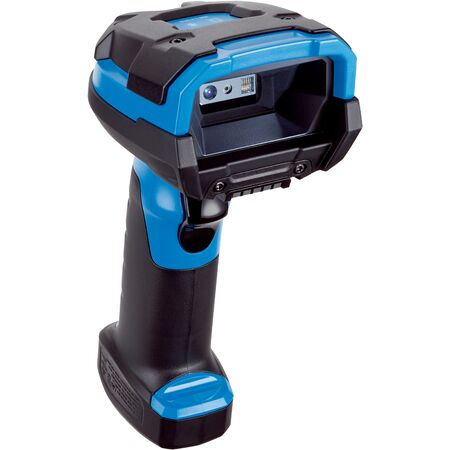

Industrial Barcode Scanner | Standard Range | IP65 & IP68 Rated | 30 mm to 1,520 mm Reading Distance | by SICK
The Industrial Barcode Scanner is designed for robust performance in industrial applications, featuring a standard range that reads 1D, 2D, stacked, and Digimarc® codes omni-directionally. With an impressive reading distance of 30 mm to 1,520 mm and a durable IP65/IP68 enclosure, this scanner is perfect for environments requiring reliable barcode scanning and code reading.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Light source: LED, Visible, Red, 660 nm and laser, Visible, Red, 610 nm
- Reading distance: 30 mm to 1,520 mm
- Code resolution: ≥ 0.13 mm and ≥ 0.19 mm
- Supply voltage: 5 V DC ±10% via host, 12 V DC ±5% external supply
- Enclosure rating: IP65 and IP68
- Weight: 305 g
- Readable code structures: 1D, 2D, Stacked, Digimarc®
- Supported barcode types: Code 39, Code 128, GS1-128, UPC/EAN, MSI/Plessey, Interleaved 2 of 5, Data Matrix, QR code, Aztec, MaxiCode, PDF417, and others
- Interfaces: Ethernet (TCP/IP), PROFINET, EtherCAT®, PROFIBUS DP, Serial RS-232 TTL, USB
- Indicators: 2 LEDs, beeper (switchable), vibration
- Operating temperature: -30 °C to +50 °C
- Storage temperature: -40 °C to +70 °C
- Shock resistance: Multiple falls from 3 m onto concrete
- Ambient light immunity: 108,000 lx
- Code buffer: 9,000 codes
- Dimensions (H x L x W): 185mm x 132mm x 77mm
- Weight: 0.305 kg
Key Features
- Standard Range (SR) version suitable for industrial use
- Cable connection variant scanner design
- Reads 1D, 2D, stacked, and Digimarc® codes omni-directionally
- Supports a wide range of barcode types including Code 39, QR code, Data Matrix, PDF417, and more
- High reading distance from 30 mm to 1,520 mm
- Battery power of 3,100 mAh enabling over 100,000 scans per full charge
- Code buffer capacity of 9,000 codes for batch scanning
- Multiple interface options including Ethernet, PROFINET, EtherCAT®, PROFIBUS DP, Serial RS-232 TTL, and USB
- Robust housing with IP65 and IP68 enclosure rating
- Shock resistant to multiple falls from 3 m onto concrete
- Operates in ambient temperatures from -30 °C to +50 °C
- Equipped with optical (2 LEDs), acoustic (switchable beeper), and vibration indicators
- Configuration via Z-Up Tool software
Professional Installation Requirements
- Installation and configuration should be performed by qualified personnel familiar with industrial barcode scanning equipment and network integration.
Applications
- Industrial application for barcode scanning and code reading
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable design reduces replacement frequency and electronic waste
- Energy-efficient operation with low power consumption
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK ZS3608-SR20263VZWW Industrial Standard Range Barcode Scanner is available for immediate purchase, ideal for industrial barcode scanning applications requiring robust and versatile code reading.
