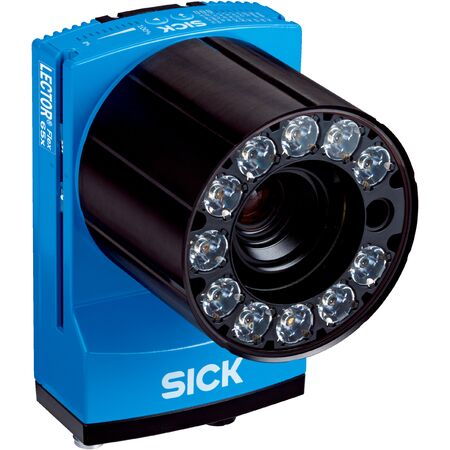

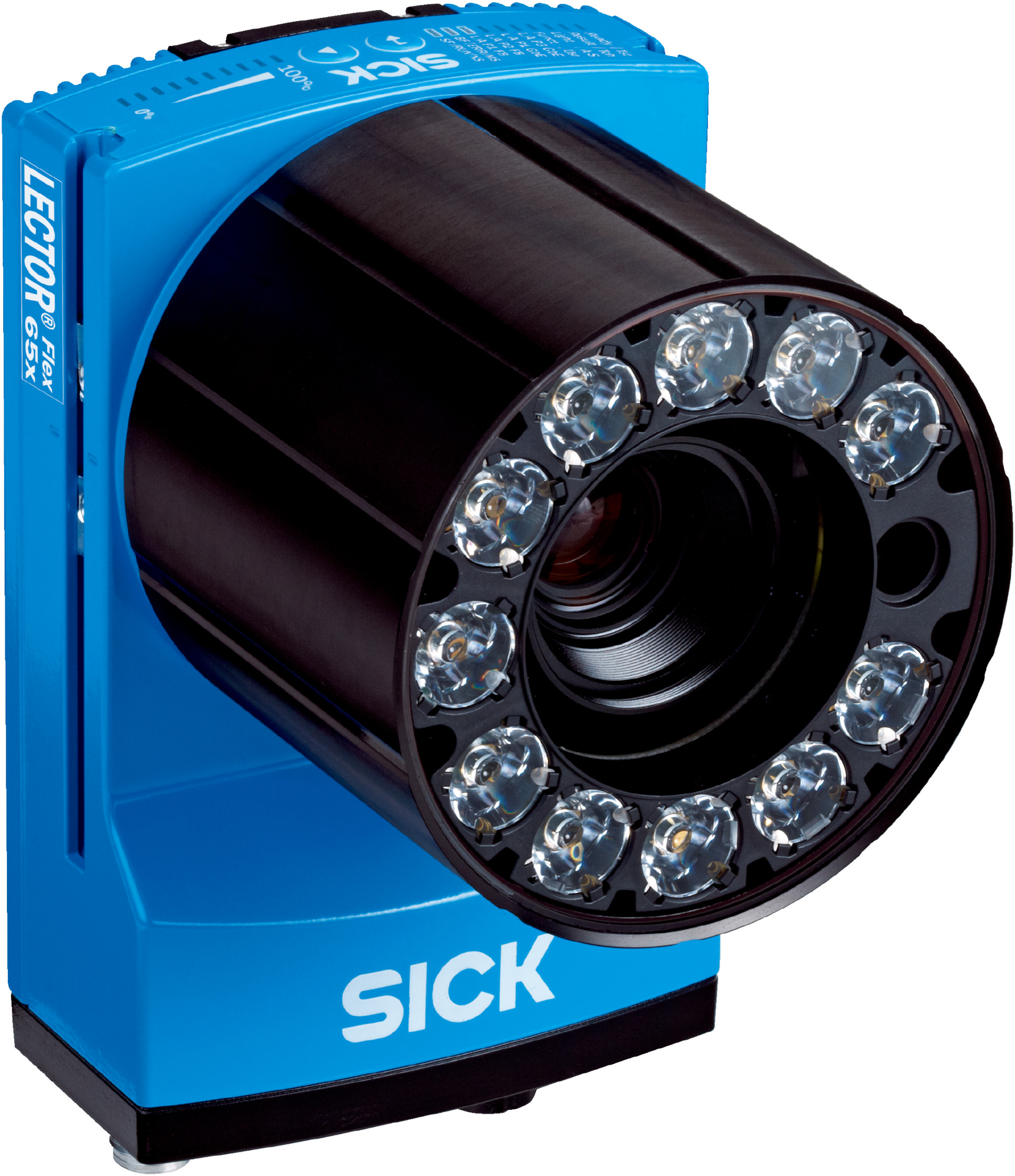

Industrial Barcode Scanner V2D652R-MCBGA6 | CMOS 2.1 MP | IP65 Rated | Adjustable Focus | by SICK
The Industrial Barcode Scanner V2D652R-MCBGA6 features a high-resolution 2.1 MP CMOS sensor and adjustable manual optical focus, making it perfect for industrial automation and logistics applications. With integrated blue LED illumination and robust IP65-rated housing, this scanner ensures reliable performance in demanding environments. Ideal for quality control and traceability, it supports various barcode types and offers multiple interface options for seamless integration.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor: CMOS monochrome, 2048 x 1088 px (2.1 MP)
- Optical focus: Adjustable manual
- Illumination: Integrated blue LED, Risk group 2
- Feedback spot: Green LED, 525 nm ± 15 nm
- Alignment aid: Red laser, 630-680 nm, Laser class 1
- Lens: C-mount, 1" optical format, 50 mm focal length, aperture 1.4 to 16
- Scanning frequency: 70 Hz at 2 MP resolution
- Code resolution: ≥ 0.1 mm
- Working range: 300 mm to 2200 mm
- Connection types: M12 17-pin plug, M12 8-pin sockets, M8 4-pin USB socket
- Supply voltage: 24 V DC ± 20%
- Power consumption: Typical 20 W ± 20%
- Output current: ≤ 100 mA
- Housing: Aluminum die cast, light blue (RAL 5012), glass window
- Enclosure rating: IP65
- Protection class: III
- Electrical safety: EN 60950-1
- MTBF: 100,000 hours
- Interfaces: Ethernet (TCP/IP), PROFINET, EtherNet/IP™, Serial (RS-232, RS-422), CAN, PROFIBUS DP
- Digital inputs: 4
- Digital outputs: 6
- Operator interface: Web server, 2 buttons
- Configuration software: SOPAS ET
- Memory: 512 MB internal, optional microSD up to 16 GB
- Ambient operating temperature: 0°C to +50°C
- Storage temperature: -20°C to +70°C
- Relative humidity: 90%, non-condensing
- EMC: EN 61000-6-2, EN 61000-6-3
- Vibration and shock resistance: EN 60068-2-6
- Dimensions (H x L x W): 106mm x 143mm x 90mm
- Weight: 0.96 kg
Key Features
- Complete device with adjustable manual optical focus
- CMOS monochrome sensor with 2.1 Megapixel resolution (2048 x 1088 px)
- Integrated blue LED illumination with risk group 2 classification
- Green visible LED feedback spot and red laser alignment aid
- Supports 1D, 2D, and stacked barcode types including GS1, QR, Data Matrix, PDF417
- Multiple interface options including Ethernet, PROFINET, EtherNet/IP™, Serial, CAN, and PROFIBUS DP
- Robust aluminum die cast housing with IP65 rating
- Operating temperature range 0°C to +50°C with high vibration and shock resistance
- Internal image storage of 512 MB and optional microSD card support
- Comprehensive operator interface with web server and SOPAS ET configuration software
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper electrical connections and compliance with safety standards.
Applications
- Industrial automation and manufacturing
- Logistics and warehouse management
- Quality control and traceability
- Packaging and labeling processes
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Energy-efficient LED illumination reduces power consumption
- Durable design minimizes waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK V2D652R-MCBGA6 barcode scanner is available for immediate purchase, ideal for industrial automation and logistics applications.
