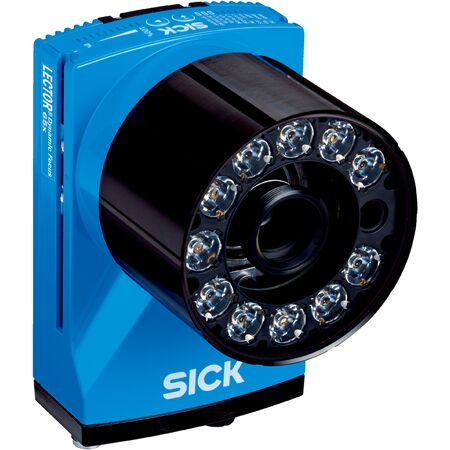

Industrial Barcode Scanner V2D654R-MEBHF6 | CMOS Monochrome Sensor | 2048 x 2048 Resolution | IP65 Rated | by SICK
The Industrial Barcode Scanner V2D654R-MEBHF6 features a high-resolution 2048 x 2048 CMOS monochrome sensor and dynamic focus control, making it perfect for industrial automation and logistics applications. With integrated blue LED illumination and multiple code reading capabilities, this robust scanner ensures reliable performance in harsh environments, while its IP65 rating guarantees durability and protection against dust and water.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor: CMOS monochrome, 2048 x 2048 px (4.2 Mpixel)
- Optical focus: Dynamic focus control
- Illumination: Integrated blue LED (455 nm ± 20 nm)
- LED class: Risk group 2 (IEC 62471)
- Feedback spot: Green LED (525 nm ± 15 nm)
- Alignment aid: Red laser (630-680 nm), Laser class 1
- Lens: C-mount, 1" optical format, 54 mm focal length, aperture 8
- Scanning frequency: 40 Hz at 4 megapixels resolution
- Code resolution: ≥ 0.12 mm
- Working range: 500 mm to 2500 mm
- Connection types: Multiple M12 and M8 plugs and sockets for CAN, Ethernet, and external illumination
- Supply voltage: 24 V DC ± 20%
- Power consumption: Typical 20 W ± 20%
- Output current: ≤ 100 mA
- Housing material: Aluminum die cast, light blue (RAL 5012)
- Window material: Glass
- Enclosure rating: IP65
- Protection class: III
- Electrical safety: EN 60950-1
- MTBF: 100,000 hours
- Readable code types: 1D, stacked, 2D codes including GS1-128, QR code, Data Matrix ECC200, PDF417
- Interfaces: Ethernet (TCP/IP), PROFINET, EtherNet/IP, CAN
- Digital inputs/outputs: 4 inputs, 6 outputs configurable
- Operator interface: Web server, SOPAS ET configuration software
- Memory: 512 MB internal, optional microSD up to 16 GB
- Ambient operating temperature: 0°C to +50°C
- Storage temperature: -20°C to +70°C
- Relative humidity: 90%, non-condensing
- EMC: EN 61000-6-2 / EN 61000-6-3
- Vibration and shock resistance: EN 60068-2-6
- Dimensions (H x L x W): 106mm x 143mm x 90mm
- Weight: 0.96 kg
Key Features
- Dynamic focus control with CMOS monochrome sensor
- High sensor resolution of 2048 x 2048 pixels (4.2 Megapixel)
- Integrated blue LED illumination (455 nm) with risk group 2 laser safety
- Multiple code reading capabilities including 1D, 2D, and stacked codes
- Robust aluminum die cast housing with IP65 rating for harsh environments
- Multiple communication interfaces including Ethernet, PROFINET, CAN, and EtherNet/IP
- Internal image storage of 512 MB and optional microSD card support
- Operating temperature range from 0°C to +50°C with high ambient light immunity
Professional Installation Requirements
- Installation and configuration should be performed by qualified personnel familiar with industrial sensor systems and network protocols to ensure optimal performance and safety.
Applications
- Industrial automation and manufacturing for barcode and 2D code reading
- Logistics and warehousing for package and product identification
- Quality control and traceability in production lines
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Energy-efficient LED illumination reduces power consumption
- Durable housing extends product lifespan, reducing waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK V2D654R-MEBHF6 barcode scanner is available for immediate purchase, ideal for industrial automation, logistics, and quality control applications.
