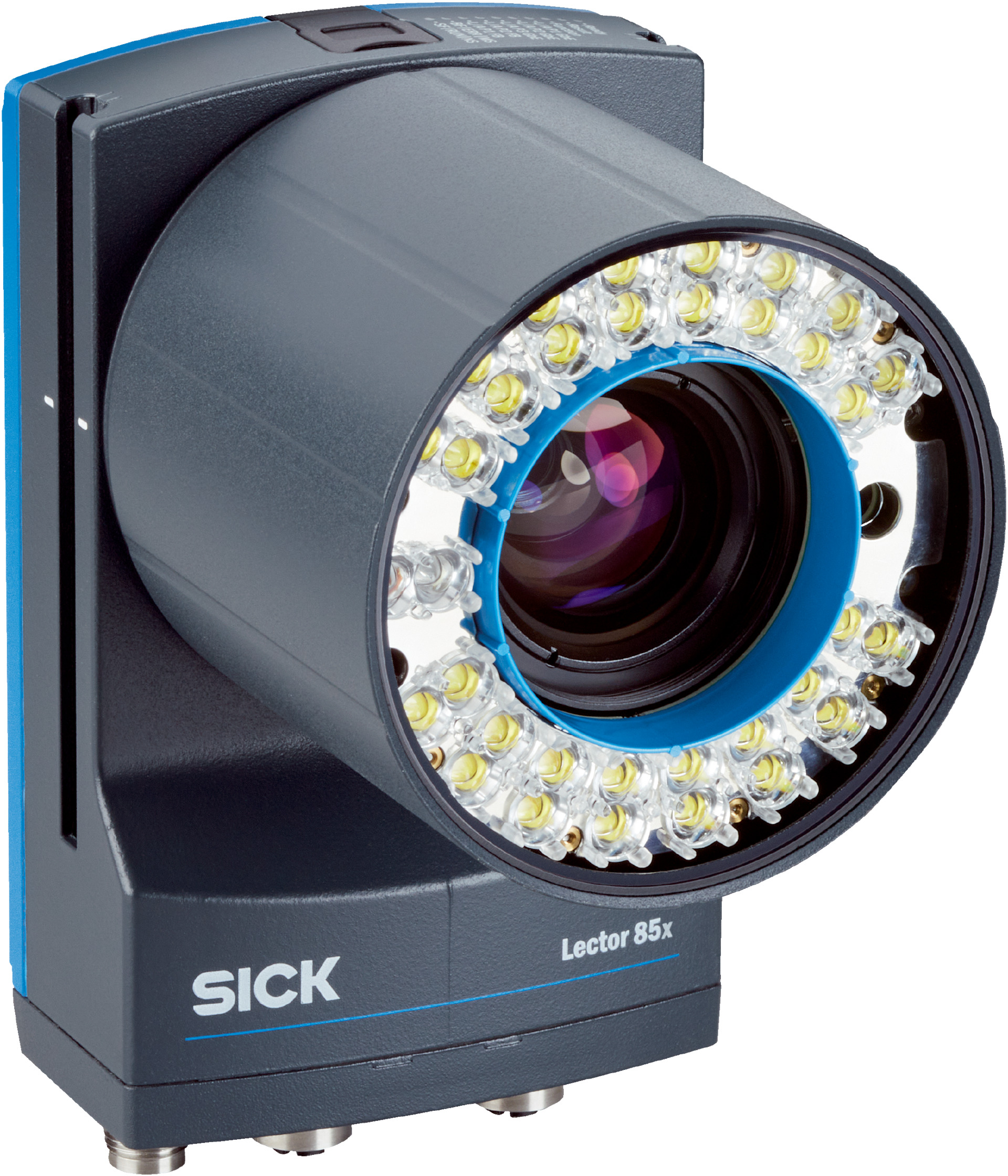

Industrial CMOS Sensor | 12 Megapixel Resolution | Adjustable Optical Focus | Integrated LED Illumination | by SICK
The Industrial CMOS Sensor is designed for high-resolution barcode reading and optical inspection, featuring a 12 Megapixel monochrome sensor with 4096 x 3008 px resolution. Ideal for indoor applications, it includes adjustable optical focus and integrated white LED illumination, ensuring precise performance in various industrial settings.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Dimensions (H x L x W): 46mm x 143mm x 90mm
- Weight: 0.64 kg
Key Features
- Adjustable manual optical focus
- 12 Megapixel CMOS monochrome sensor with 4096 x 3008 px resolution
- Integrated white LED illumination with 32 LEDs and 31° aperture angle
- Risk group 1 LED class for low risk
- Visible green and red LED feedback spots
- Red laser alignment aid (630 nm to 680 nm), Laser class 1 compliant
- C-mount lens with 1" optical format, 25 mm focal length, aperture 1.8 to 22
- Scanning frequency of 15 Hz at 12 MP resolution
- Code resolution ≥ 0.1 mm
- Working range from 500 mm to 3000 mm
- Multiple industrial interfaces including Ethernet, EtherNet/IP™, CAN, Serial RS-232, USB 2.0, PROFINET
- Robust aluminum die cast housing with IP65 rating and scratch-proof glass window
- Operating temperature 0 °C to +50 °C, storage -20 °C to +70 °C
- EMC compliant with IEC 61000-6-2 and IEC 61000-6-4
- Shock and vibration resistant per EN 60068 standards
- Conformance Class B safety rating
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure proper electrical connections and compliance with safety standards.
Applications
- Indoor area applications requiring high-resolution code reading and optical inspection
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Durable aluminum housing and scratch-proof glass extend product lifespan reducing waste
- Low power consumption (typical 24 W) reduces energy usage
- Complies with RoHS regulations limiting hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK official documentation for details.
Available Now

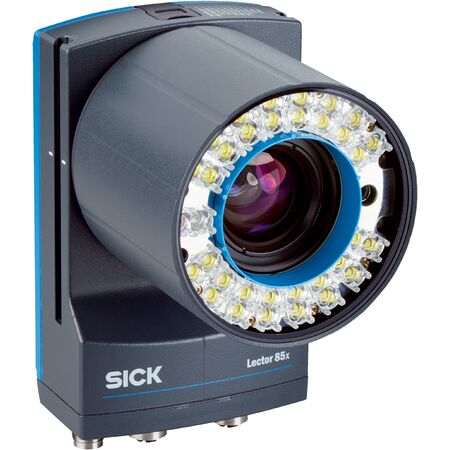

The SICK V2D8512R-1MCKEXAF2SXXXX sensor is available for immediate purchase, ideal for indoor industrial applications requiring precise optical code reading and inspection.
