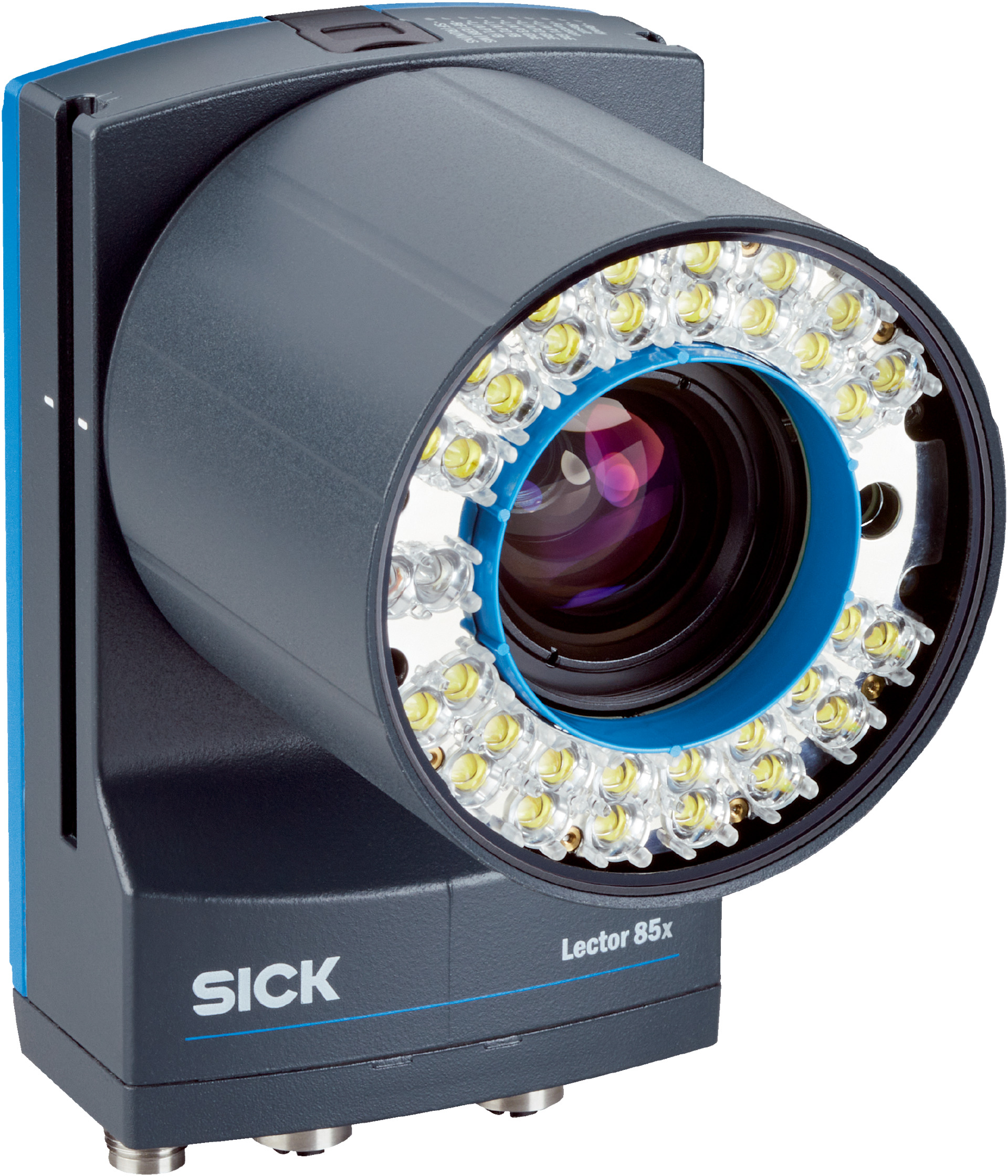

12MP Industrial CMOS Sensor | Adjustable Optical Focus | Integrated Red LED | IP65 Rated | by SICK
The 12MP Industrial CMOS Sensor is designed for high-resolution barcode reading and inspection in indoor industrial settings. With an adjustable optical focus and integrated red LED illumination, it ensures precise scanning from 500 mm to 3000 mm. Built for durability with an IP65 rating, this sensor is perfect for professionals seeking reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor resolution: 4096 px x 3008 px (12 Megapixel)
- Optical focus: Adjustable manual
- Illumination: Integrated red LED, 32 LEDs, 47° aperture angle
- Lens: C-mount, 1" optical format, 16 mm focal length, aperture 1.8 to 16
- Scanning frequency: 15 Hz at 12 megapixels
- Code resolution: ≥ 0.1 mm
- Working range: 500 mm to 3000 mm
- Connection types: M12 connectors (17-pin male, 5-pin male, 8-pin female), Gigabit Ethernet
- Supply voltage: 24 V DC ± 20%
- Power consumption: Typical 24 W, max current 2 A
- Housing: Aluminum die cast, anthracite gray
- Window: 2 mm thick scratch-proof glass
- Enclosure rating: IP65
- Electrical safety: EN 61010 compliant
- Supported codes: 1D, 2D, stacked codes including Code 128, QR, Data Matrix ECC200, PDF417
- Interfaces: Ethernet (TCP/IP), CAN, Serial (RS-232/422), USB 2.0
- Digital inputs: 2 insulated inputs, configurable digital I/Os
- Operator interface: Web server, SOPASair software
- Memory: Micro SD card slot for parameter cloning and data storage
- EMC: IEC 61000-6-2 and IEC 61000-6-4 compliant
- Vibration and shock resistance: EN 60068-2-6, EN 60068-2-64, EN 60068-2-27
- Operating temperature: 0°C to +50°C
- Storage temperature: -20°C to +70°C
- Humidity: ≤ 90% non-condensing
- Altitude: < 5000 m
- Dimensions (H x L x W): 46mm x 143mm x 90mm
- Weight: 0.64 kg
Key Features
- Adjustable manual optical focus
- 12 Megapixel CMOS monochrome sensor with 4096 x 3008 px resolution
- Integrated red LED illumination with 32 LEDs
- Aperture angle of 47° for illumination
- Low risk LED class 1 compliant with EC 62471-1 and EN 62471-1
- Visible green and red LED feedback spots
- Red laser alignment aid (630 nm to 680 nm), laser class 1 compliant with EN 60825-1
- C-mount lens with 1" optical format, 16 mm focal length, aperture range 1.8 to 16
- Scanning frequency of 15 Hz at 12 megapixels resolution
- Code resolution ≥ 0.1 mm
- Working range from 500 mm to 3000 mm
- Multiple connection types including M12 connectors and Gigabit Ethernet
- Supply voltage 24 V DC ± 20%
- Power consumption typically 24 W, max current 2 A
- Aluminum die cast housing with anthracite gray color
- Scratch-proof 2 mm thick glass window
- IP65 rated enclosure
- Complies with electrical safety EN 61010 standards
- Supports 1D, 2D, and stacked barcode types including Code 128, QR code, Data Matrix ECC200, PDF417
- Interfaces include Ethernet, CAN, Serial RS-232/422, USB 2.0
- Digital inputs and configurable digital I/Os
- Web server operator interface and SOPASair configuration software
- Micro SD memory card slot for parameter cloning and data storage
- EMC compliant with IEC 61000-6-2 and IEC 61000-6-4
- Vibration and shock resistant per EN 60068 standards
- Operating temperature 0°C to +50°C, storage -20°C to +70°C
- Non-condensing humidity up to 90%
- Altitude operation up to 5000 m
Professional Installation Requirements
- Professional installation by qualified personnel recommended to ensure proper electrical connections and compliance with safety standards.
Applications
- Indoor area industrial code reading and inspection
Standards & Compliance
- Complies with AS/NZS 61010 for electrical safety requirements
Environmental Benefits
- Durable aluminum housing and scratch-proof glass extend product lifespan reducing waste
- Energy efficient 24 W power consumption for industrial sensor applications
- Compliant with China-RoHS and other environmental regulations
Warranty Information
Standard manufacturer warranty applies; please refer to SICK official documentation for details.
Available Now
The SICK V2D8512R-1MCLDXAL2SXXXX sensor is available for immediate purchase, ideal for indoor industrial barcode reading and inspection applications.
