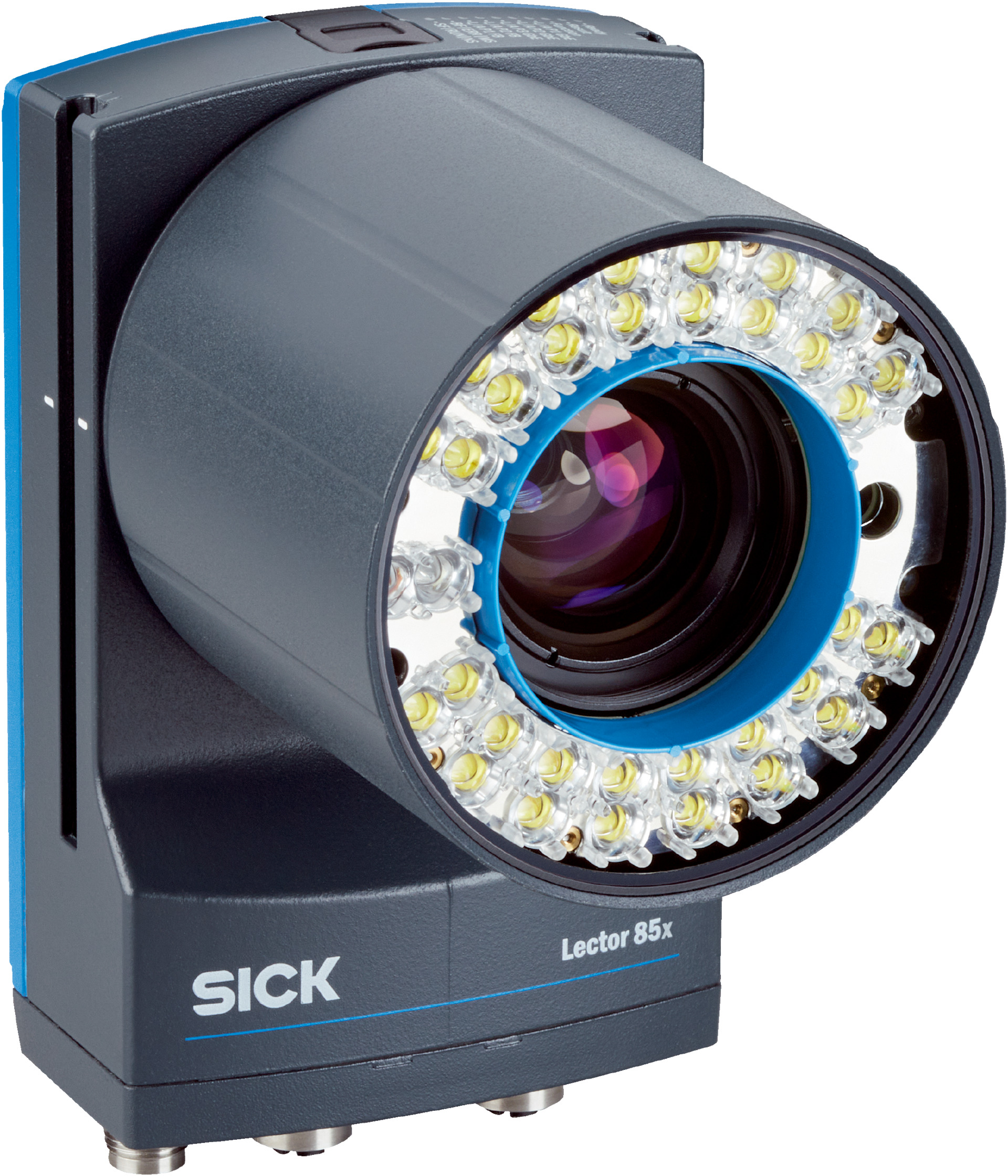

Industrial CMOS Sensor | 5 Megapixel Resolution | Adjustable Optical Focus | IP65 Rated | by SICK
The Industrial CMOS Sensor is designed for high-resolution barcode reading and optical inspection in indoor applications. Featuring a 5 Megapixel monochrome sensor with a resolution of 2464 x 2048 px and adjustable manual optical focus, it ensures precise code reading. With integrated white LED illumination and an IP65 rated enclosure, this sensor is built for durability and reliability in industrial environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Dimensions (H x L x W): 46mm x 143mm x 90mm
- Weight: 0.64 kg
Key Features
- Adjustable manual optical focus
- 5 Megapixel CMOS monochrome sensor with 2464 x 2048 px resolution
- Integrated white LED illumination with 32 LEDs
- Aperture angle of 31° for illumination
- Low risk LED class 1 compliant with EC 62471-1 and EN 62471-1
- Visible green and red LED feedback spots
- Red laser alignment aid (630 nm to 680 nm), laser class 1 compliant with IEC 60825-1
- C-mount lens with 1/1.8" optical format, 16 mm focal length, aperture range 1.8 to 11
- Scanning frequency of 30 Hz at 5 megapixels resolution
- Code resolution ≥ 0.1 mm
- Working range from 500 mm to 3000 mm
- Robust aluminum die cast housing with anthracite gray color
- Scratch-proof 2 mm thick glass window
- IP65 rated enclosure for dust and water protection
- Multiple industrial interfaces including Ethernet, EtherNet/IP™, PROFINET, CAN, Serial RS-232/422, USB 2.0
- Supports 1D, 2D, and stacked barcode types including Code 128, GS1, Data Matrix ECC200, QR code, PDF417
- Configurable digital inputs and outputs
- Web server operator interface and SOPASair configuration software
- Micro SD memory card slot for parameter cloning and data storage
- Electromagnetic compatibility compliant with IEC 61000-6-2 and IEC 61000-6-4
- Vibration and shock resistant per EN 60068 standards
- Operating temperature range 0 °C to +50 °C
- Storage temperature range -20 °C to +70 °C
- Non-condensing humidity up to 90%
- Altitude operation up to 5000 m
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure proper electrical connections and compliance with safety standards.
Applications
- Indoor area applications requiring high-resolution code reading and optical inspection
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Durable aluminum housing and scratch-proof glass increase product lifespan reducing waste
- Energy-efficient LED illumination reduces power consumption
- Compliant with China-RoHS and other environmental regulations
Warranty Information
Standard manufacturer warranty applies; please refer to SICK official documentation for details.
Available Now
The SICK V2D8505R-1MCKDXAF2SXXXX sensor is available for immediate purchase. Ideal for indoor industrial applications requiring high precision optical code reading and inspection.
