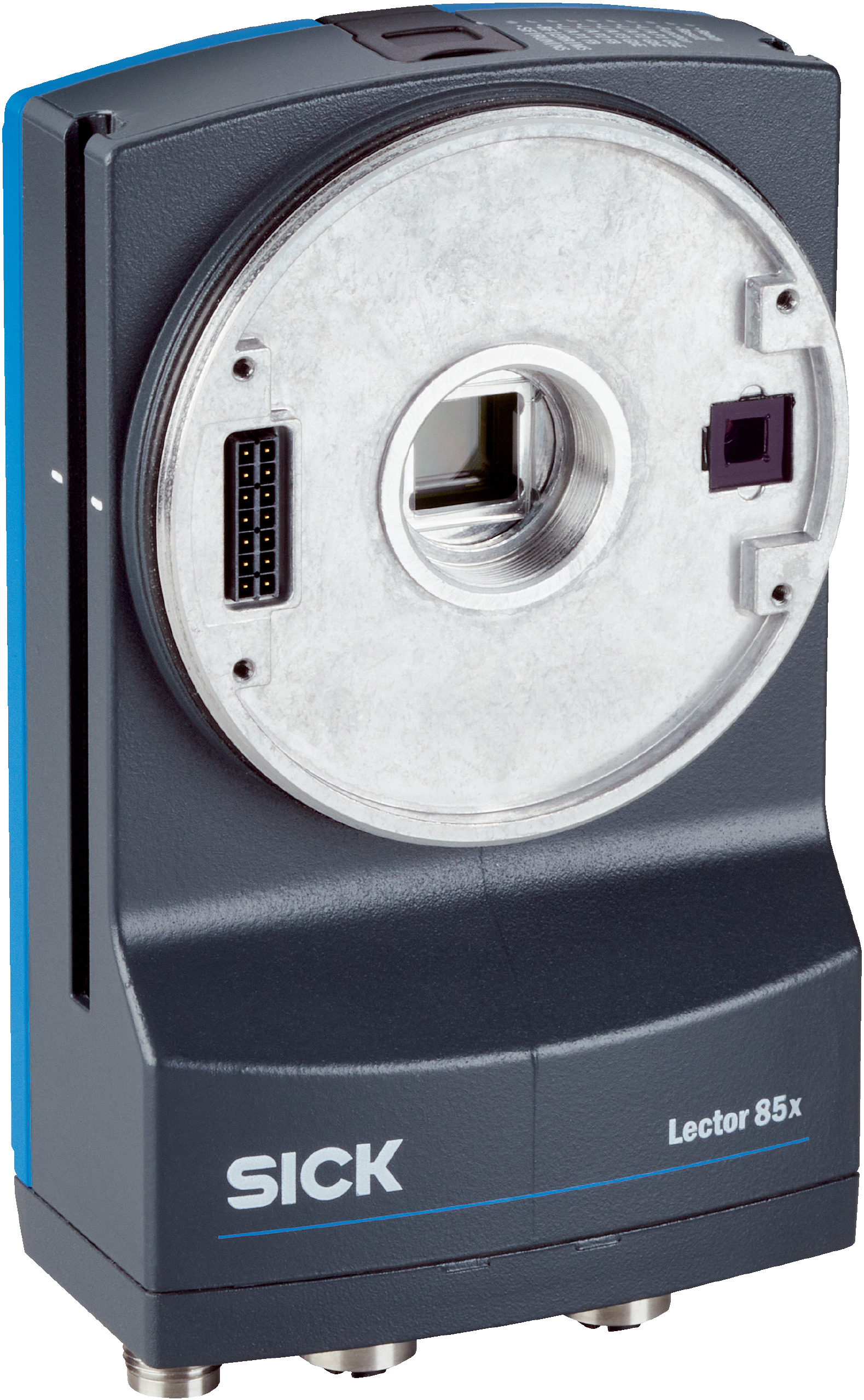

Industrial CMOS Sensor | 5 Megapixel Resolution | Adjustable Optical Focus | IP65 Rated | by SICK
The Industrial CMOS Sensor is designed for high-resolution code reading with a 5 Megapixel resolution and adjustable manual optical focus. Ideal for indoor applications, it reads 1D, 2D, and stacked codes, ensuring precision in scanning. With robust aluminum housing and IP65 rating, this sensor is built to withstand harsh environments while providing reliable performance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Dimensions (H x L x W): 46mm x 143mm x 90mm
- Weight: 0.64 kg
Key Features
- Adjustable manual optical focus
- CMOS monochrome sensor with 5 Megapixel resolution (2464 x 2048 px)
- LED feedback spot in green (530 nm) and red (660 nm)
- Red laser alignment aid (630 nm to 680 nm), Laser Class 1 compliant
- Supports multiple lens focal lengths (8 mm, 12 mm, 16 mm, 25 mm) - ordered separately
- Reads 1D, 2D, and stacked code structures including Code 128, QR code, Data Matrix ECC200, PDF417
- Multiple interfaces: Ethernet (Gigabit), CAN, Serial (RS-232, RS-422), USB 2.0
- Robust aluminum die-cast housing with IP65 rating and scratch-proof glass window
- Operating temperature range 0°C to +50°C with high vibration and shock resistance
- Supports image and data storage via external FTP and micro SD card
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure proper connection and configuration of multiple interfaces and accessories.
Applications
- Indoor area applications requiring high-resolution code reading and scanning
Standards & Compliance
- Complies with AS/NZS 61010-1 Electrical Equipment Safety Standards
Environmental Benefits
- Durable aluminum housing and scratch-proof glass extend product lifespan reducing waste
- Energy-efficient 24 V DC power supply with typical consumption of 24 W
- Complies with electromagnetic compatibility standards reducing interference and improving operational reliability
Warranty Information
Standard manufacturer warranty applies; please refer to SICK official documentation for details.
Available Now

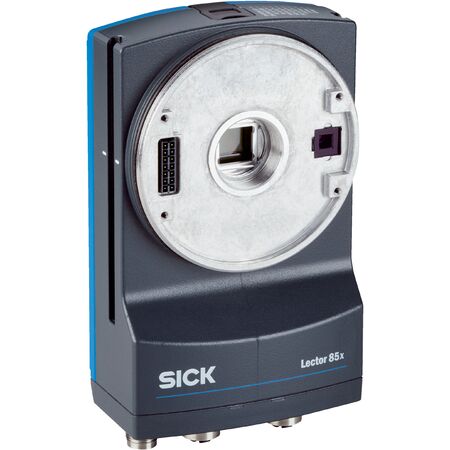

The SICK V2D8505R-1MCXXXAL0SXXXX sensor is available for immediate purchase, ideal for indoor industrial applications requiring precise code reading and scanning.
