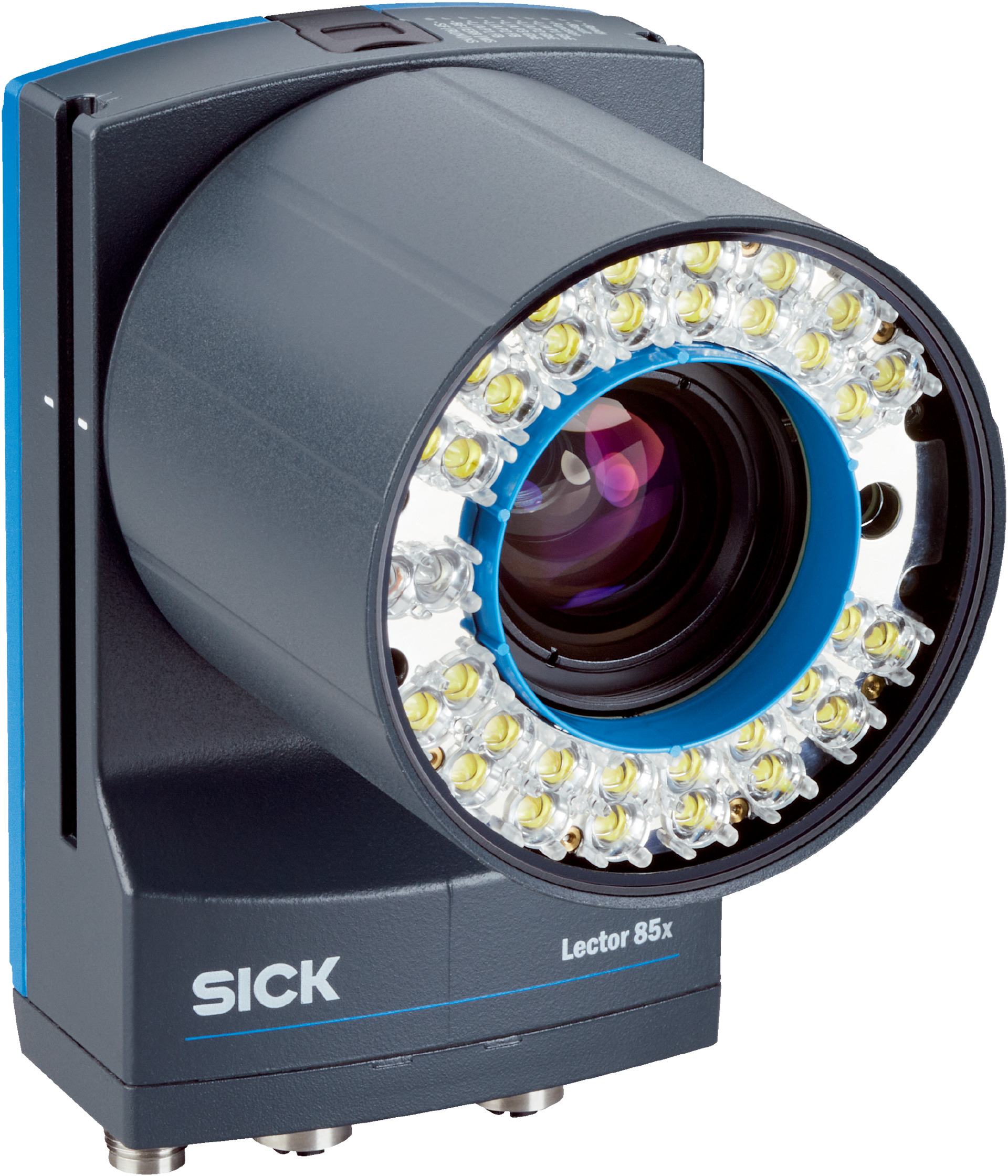

Industrial CMOS Sensor | 5 Megapixel Resolution | Adjustable Optical Focus | Integrated LED Illumination | by SICK
The Industrial CMOS Sensor offers a high-resolution 5 Megapixel imaging capability, perfect for indoor applications requiring precise barcode reading. With adjustable optical focus and integrated white LED illumination, this sensor is designed for robust performance in industrial automation settings. Its durable aluminum housing and IP65 rating ensure reliability in various environments, making it an ideal choice for professionals seeking quality and efficiency.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor resolution: 2464 px x 2048 px (5 Megapixel)
- Optical focus: Adjustable manual
- Illumination: Integrated white LED, 32 LEDs, 31° aperture angle
- Lens: C-mount, 16 mm focal length, aperture 1.8 to 11
- Scanning frequency: 30 Hz at 5 megapixels
- Code resolution: ≥ 0.1 mm
- Working range: 500 mm to 3000 mm
- Connection types: M12 connectors (17-pin male, 5-pin male, 8-pin female)
- Supply voltage: 24 V DC ± 20%
- Power consumption: Typically 24 W
- Current consumption: Max 2 A
- Housing material: Aluminum die cast, anthracite gray
- Window material: 2 mm thick scratch-proof glass
- Enclosure rating: IP65
- Electrical safety: EN 61010:2010 / EN 61010-1:2010/A1:2019/AC:2019-04
- Interfaces: Ethernet (Gigabit), CAN, Serial RS-232/422, USB 2.0
- Ambient operating temperature: 0°C to +50°C
- Storage temperature: -20°C to +70°C
- EMC: IEC 61000-6-2 and IEC 61000-6-4 compliant
- Vibration resistance: EN 60068-2-6 and EN 60068-2-64
- Shock resistance: EN 60068-2-27
- Weight: 640 g without lens and cables
- MTBF: 100,000 hours
- Dimensions (H x L x W): 46mm x 143mm x 90mm
- Weight: 0.64 kg
Key Features
- Adjustable manual optical focus
- 5 Megapixel CMOS monochrome sensor with 2464 x 2048 px resolution
- Integrated white LED illumination with 32 LEDs
- Low risk LED class 1 and laser class 1 compliant with safety standards
- C-mount lens with 16 mm focal length and aperture range 1.8 to 11
- Scanning frequency of 30 Hz at 5 megapixels resolution
- Reads 1D, 2D, and stacked barcodes including Code 128, QR code, Data Matrix ECC200, PDF417
- Multiple interfaces including Ethernet, CAN, Serial RS-232/422, USB 2.0
- Robust aluminum die cast housing with IP65 rating and scratch-proof glass window
- Wide ambient operating temperature range 0°C to +50°C
- High electromagnetic compatibility and vibration/shock resistance
Professional Installation Requirements
- Professional installation by qualified personnel recommended to ensure proper electrical and network connections and compliance with safety standards.
Applications
- Indoor area applications requiring high-resolution code reading and imaging
Standards & Compliance
- Complies with AS/NZS 61010 for electrical safety requirements
Environmental Benefits
- Durable aluminum housing extends product life reducing waste
- Low power consumption of typically 24 W reduces energy usage
- Complies with China-RoHS and other environmental regulations
Warranty Information
Standard manufacturer warranty applies; please refer to SICK official documentation for details.
Available Now
The SICK V2D8505R-1MCKDXAL2SXXXX sensor is available for immediate purchase, ideal for indoor industrial automation and barcode reading applications.
