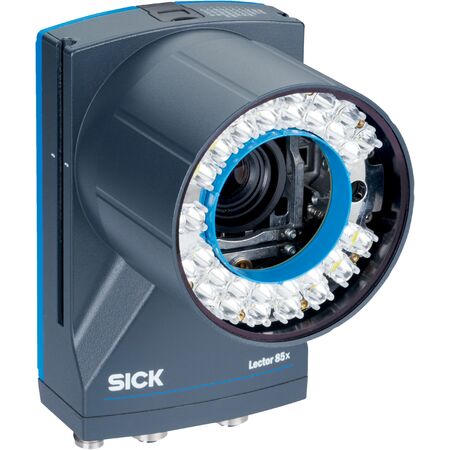

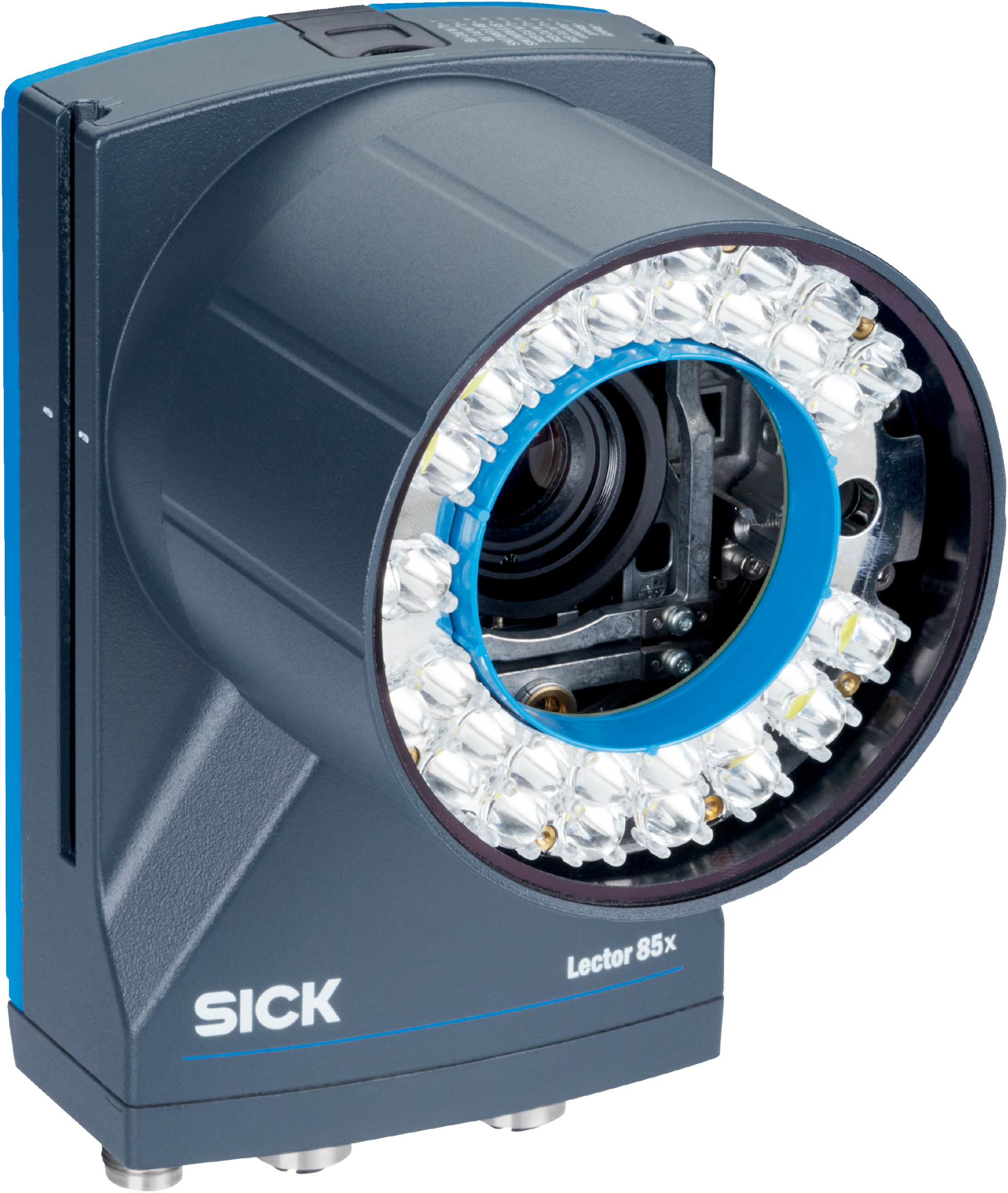

Industrial CMOS Sensor | 5MP Resolution | Dynamic Focus Control | Integrated LED Illumination | by SICK
The Industrial CMOS Sensor is designed for high-resolution code reading and scanning, featuring a 5MP monochrome sensor and dynamic focus control for precise optical focusing. Ideal for indoor applications, it includes integrated white LED illumination and multiple connection types, ensuring versatility and reliability in various industrial settings.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Dimensions (H x L x W): 106mm x 143mm x 90mm
- Weight: 0.975 kg
Key Features
- Dynamic focus control for precise optical focusing
- CMOS monochrome sensor with 5 Megapixel resolution (2464 x 2048 px)
- Integrated white LED illumination with 32 LEDs and 31° aperture angle
- Low risk LED class 1 compliant with EC 62471-1 and EN 62471-1 standards
- Red laser alignment aid (630 nm to 680 nm), laser class 1 compliant with EN 60825-1
- Focal length 25 mm with aperture 5.6
- Scanning frequency of 30 Hz at 5 megapixels resolution
- Code resolution capability ≥ 0.1 mm
- Working range from 500 mm to 2400 mm
- Multiple connection types including M12 connectors for power, CAN, serial, and Gigabit Ethernet
- Supply voltage 24 V DC ± 20%
- Power consumption typically 27 W, max current 2 A
- Robust aluminum die cast housing with anthracite gray color and scratch-proof glass window
- IP65 rated enclosure for dust and water protection
- Complies with electrical safety standards EN 61010
- Supports 1D, 2D, and stacked barcode types with ISO/IEC code qualification
- Multiple interfaces: Ethernet (TCP/IP), CAN, Serial (RS-232, RS-422), USB 2.0
- Configurable digital inputs/outputs and optical LED indicators
- Web server operator interface and SOPASair configuration software
- Micro SD memory card slot for parameter cloning and data storage
- High electromagnetic compatibility and vibration/shock resistance
- Operating temperature range 0°C to +50°C, storage -20°C to +70°C
- Suitable for altitudes up to 5000 m
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure proper electrical connections and compliance with safety standards.
Applications
- Indoor area applications requiring high-resolution code reading and scanning
Standards & Compliance
- AS/NZS 61010 – Safety requirements for electrical equipment for measurement, control, and laboratory use (aligned with EN 61010)
Environmental Benefits
- Integrated LED illumination reduces energy consumption compared to traditional lighting
- Durable aluminum housing extends product lifespan reducing waste
- Compliance with RoHS and China-RoHS ensures reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK V2D8505R-1MEKEXAL2SXXXX sensor is available for immediate purchase, ideal for indoor industrial applications requiring high precision code reading and scanning.
