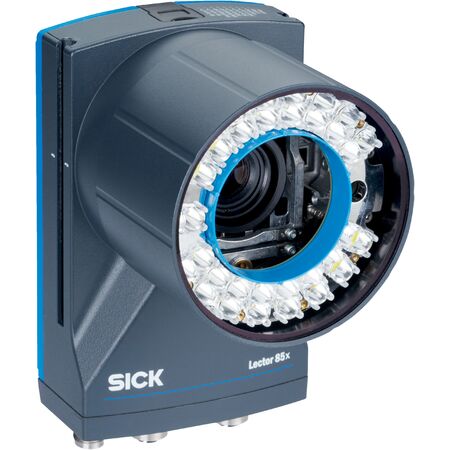

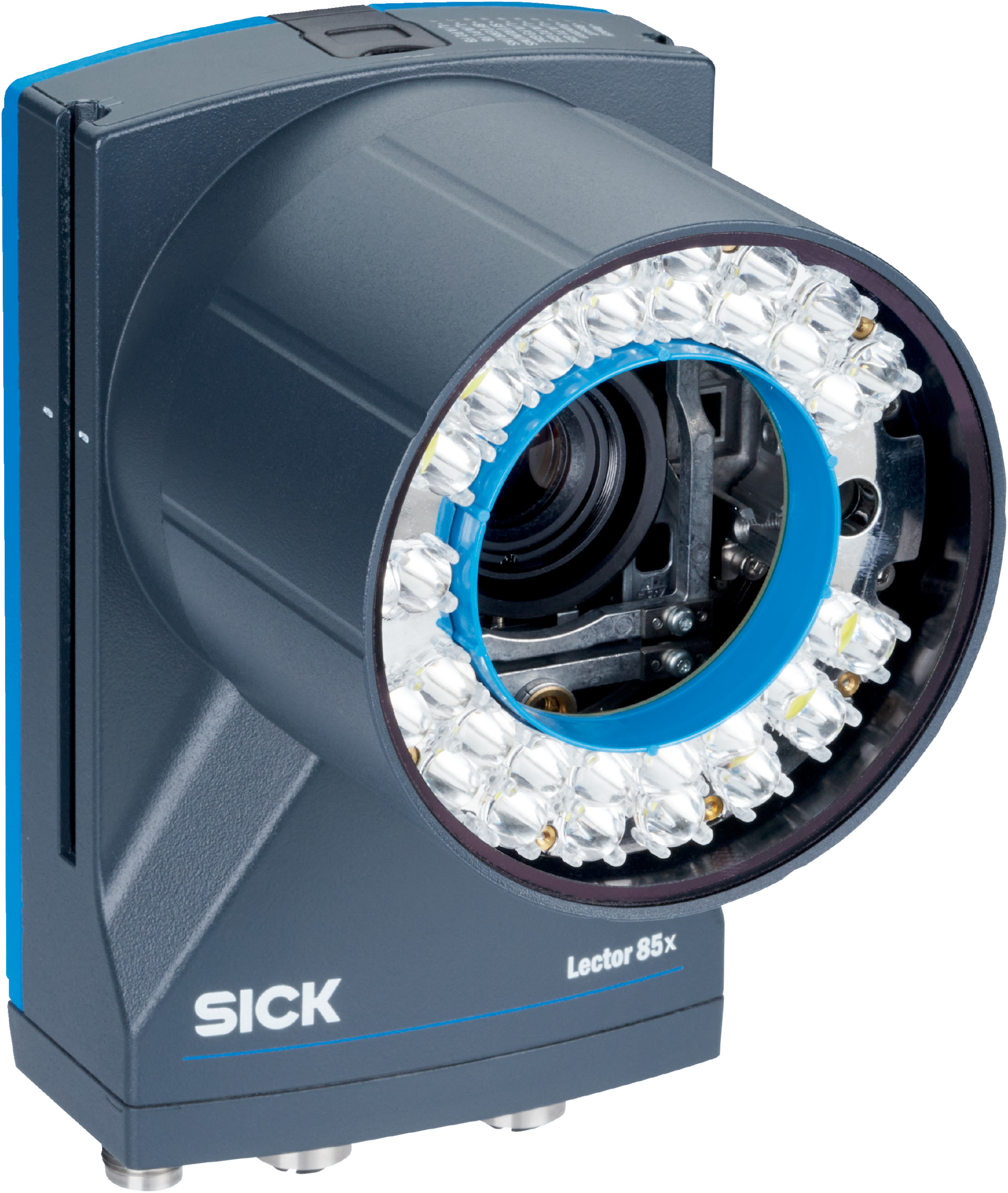

Industrial Code Reader | 12 Megapixel CMOS Sensor | Integrated LED Illumination | IP65 Rated | by SICK
The Industrial Code Reader features a high-resolution 12 Megapixel CMOS sensor and integrated LED illumination, making it perfect for barcode and 2D code scanning in manufacturing and logistics. With a wide working range of 500 mm to 2400 mm and support for multiple code types, this robust device ensures quality control and traceability in production lines, all housed in a durable IP65-rated aluminum casing.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor: CMOS monochrome
- Sensor resolution: 4096 px x 3008 px (12 Megapixel)
- Illumination: Integrated white LED, 32 LEDs
- Aperture angle: 47° illumination
- Laser class: Class 1, compliant with EN 60825-1:2014+A11:2021
- Focal length: 25 mm
- Aperture: 5.6
- Scanning frequency: 15 Hz at 12 Megapixel resolution
- Code resolution: ≥ 0.1 mm
- Working range: 500 mm to 2400 mm
- Connection types: Multiple M12 connectors (17-pin, 5-pin, 4-pin, 8-pin)
- Supply voltage: 24 V DC ± 20%
- Power consumption: Typical 27 W
- Current consumption: Max 2 A
- Housing material: Aluminum die cast
- Window material: 2 mm thick scratch-proof glass
- Enclosure rating: IP65
- Electrical safety: EN 61010:2010 / EN 61010-1:2010/A1:2019/AC:2019-04
- MTBF: 100,000 hours
- Readable code structures: 1D, 2D, Stacked codes
- Supported code types: Code 128, GS1-128, EAN 8/13, UPC-A/E, Interleaved 2 of 5, Codabar, Code 93, Postal code, Data Matrix ECC200, GS1 Data-Matrix, MaxiCode, QR code, Aztec, PDF417
- Data transmission rates: Ethernet 10/100/1000 Mbit/s, CAN 500 kbit/s, Serial 1.2 kBaud to 115.2 kBaud, USB 2.0 at 480 Mbit/s
- Ambient operating temperature: 0 °C to +50 °C
- Storage temperature: -20 °C to +70 °C
- Permissible relative humidity: ≤ 90%, non-condensing
- Electromagnetic compatibility: IEC 61000-6-2:2016 / IEC 61000-6-4:2018
- Vibration resistance: EN 60068-2-6:2007, EN 60068-2-64:2019
- Shock resistance: EN 60068-2-27:2008
- Altitude: < 5,000 m
- Dimensions (H x L x W): 106mm x 143mm x 90mm
- Weight: 0.975 kg
Key Features
- Dynamic focus control with CMOS monochrome sensor
- High sensor resolution of 4096 x 3008 pixels (12 Megapixel)
- Integrated white LED illumination with 32 LEDs
- Laser alignment aid with red laser (630 nm to 680 nm)
- Wide working range from 500 mm to 2400 mm
- Supports multiple code types including 1D, 2D, and stacked codes
- Multiple industrial interfaces including Ethernet, PROFINET, EtherNet/IP™, CAN, Serial, and USB
- Robust aluminum die cast housing with IP65 rating
- Scratch-proof 2 mm thick glass window
- Electromagnetic compatibility and vibration/shock resistance compliant
Professional Installation Requirements
- Professional installation by qualified personnel recommended to ensure proper integration with industrial systems and compliance with safety standards.
Applications
- Indoor area industrial code reading
- Barcode and 2D code scanning in manufacturing and logistics
- Quality control and traceability in production lines
Standards & Compliance
- AS/NZS 61010 – Safety requirements for electrical equipment for measurement, control, and laboratory use
Environmental Benefits
- Integrated LED illumination reduces energy consumption
- Durable housing and components extend product lifespan, reducing waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK V2D8512R-1MEKEXAF2SXXXX is available for immediate purchase, ideal for industrial indoor applications requiring advanced code reading capabilities.
