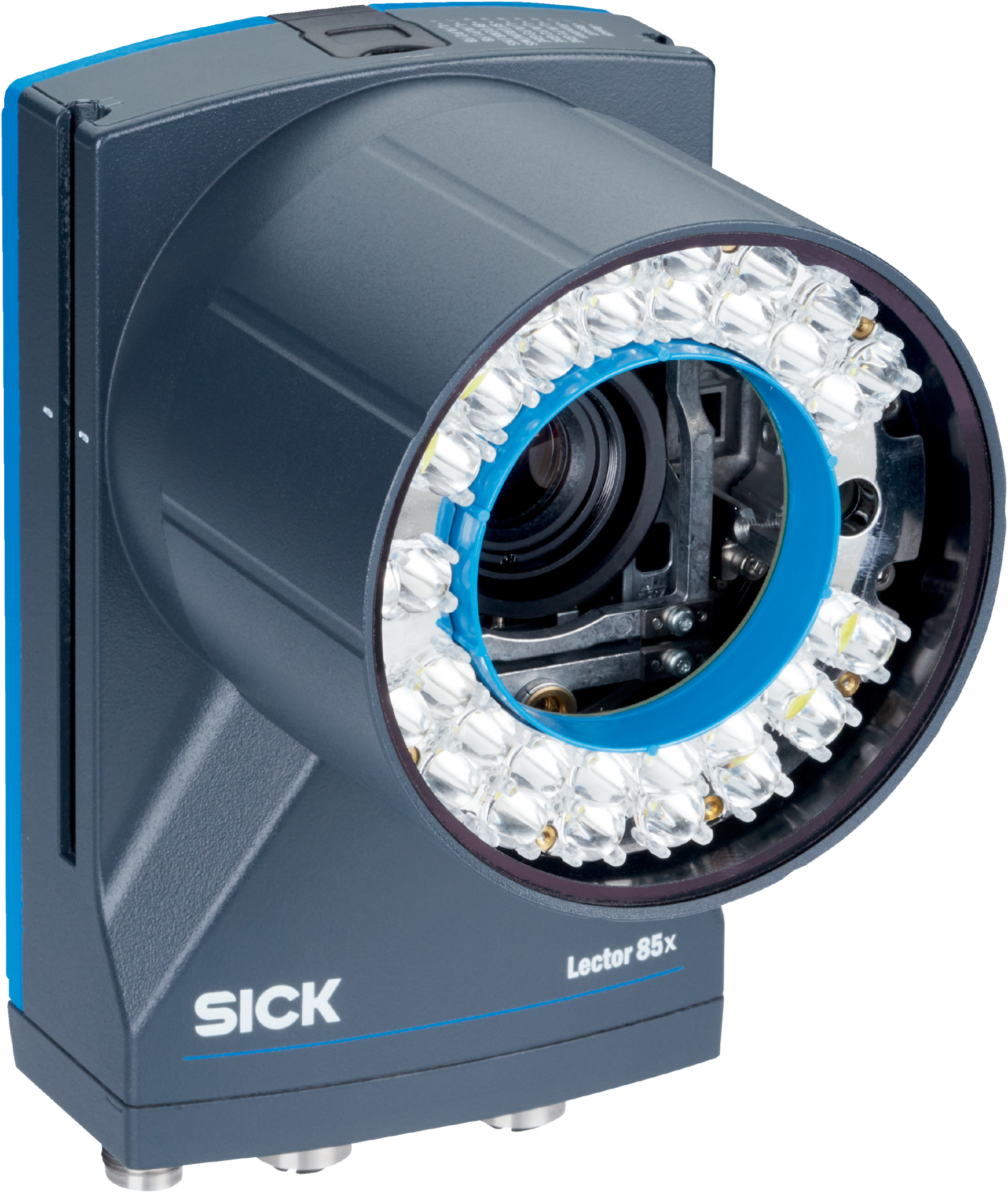

Industrial Code Reader | 9MP CMOS Sensor | Integrated Red LED | IP65 Rated | by SICK
The Industrial Code Reader features a high-resolution 9MP CMOS monochrome sensor and integrated red LED illumination, making it perfect for barcode and 2D code scanning in manufacturing and logistics. With a wide working range of 500 mm to 2400 mm and robust aluminum housing, it ensures reliable performance in various industrial applications, including quality control and traceability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor: CMOS monochrome, 4096 px x 2176 px (9 Megapixel)
- Illumination: Integrated red LED, 660 nm ± 20 nm, 32 LEDs
- Laser alignment aid: Red laser 630 nm to 680 nm, Laser class 1
- Focal length: 25 mm, Aperture: 5.6
- Scanning frequency: 20 Hz at 9 Megapixel resolution
- Code resolution: ≥ 0.1 mm
- Working range: 500 mm to 2400 mm
- Connection types: Multiple M12 connectors (17-pin, 5-pin, 4-pin, 8-pin)
- Supply voltage: 24 V DC ± 20%
- Power consumption: Typical 27 W
- Current consumption: Max 2 A
- Housing: Aluminum die cast, anthracite gray (RAL 7016)
- Window: 2 mm thick glass with scratch-proof coating
- Enclosure rating: IP65
- Electrical safety: EN 61010:2010 / EN 61010-1:2010/A1:2019/AC:2019-04
- MTBF: 100,000 hours
- Interfaces: Ethernet (TCP/IP), EtherNet/IP™, PROFINET, CAN, Serial (RS-232), USB 2.0
- Data transmission rates: Up to 1,000 Mbit/s Ethernet, 10/100 Mbit/s for other interfaces
- Ambient operating temperature: 0 °C to +50 °C
- Storage temperature: -20 °C to +70 °C
- Relative humidity: ≤ 90%, non-condensing
- EMC: IEC 61000-6-2:2016 / IEC 61000-6-4:2018
- Vibration resistance: EN 60068-2-6:2007, EN 60068-2-64:2019
- Shock resistance: EN 60068-2-27:2008
- Dimensions (H x L x W): 106mm x 143mm x 90mm
- Weight: 0.975 kg
Key Features
- Dynamic focus control with CMOS monochrome sensor
- High sensor resolution of 4096 px x 2176 px (9 Megapixel)
- Integrated red LED illumination (660 nm) with 32 LEDs
- Laser alignment aid with red laser (630 nm to 680 nm), Laser class 1
- Wide working range from 500 mm to 2400 mm
- Supports multiple code types including 1D, 2D, and stacked codes
- Multiple industrial interfaces including Ethernet, PROFINET, EtherNet/IP™, CAN, Serial, USB
- Robust aluminum die cast housing with IP65 rating and scratch-proof glass window
- Operating temperature range 0 °C to +50 °C with high EMC and vibration resistance
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper electrical connections and compliance with safety standards.
Applications
- Indoor area industrial code reading
- Barcode and 2D code scanning in manufacturing and logistics
- Quality control and traceability in production lines
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Energy-efficient LED illumination reduces power consumption
- Durable construction minimizes waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now

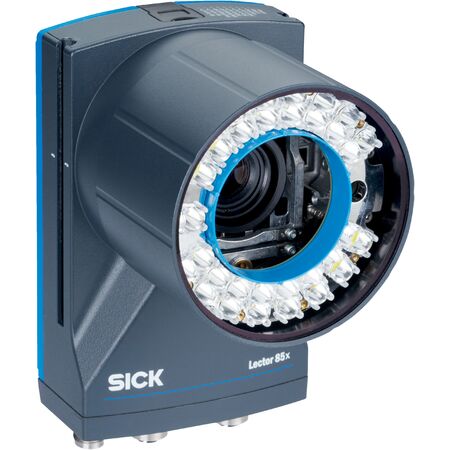

The SICK V2D8509R-1MEMEXAF2SXXXX is available for immediate purchase, ideal for industrial indoor barcode and 2D code reading applications.
