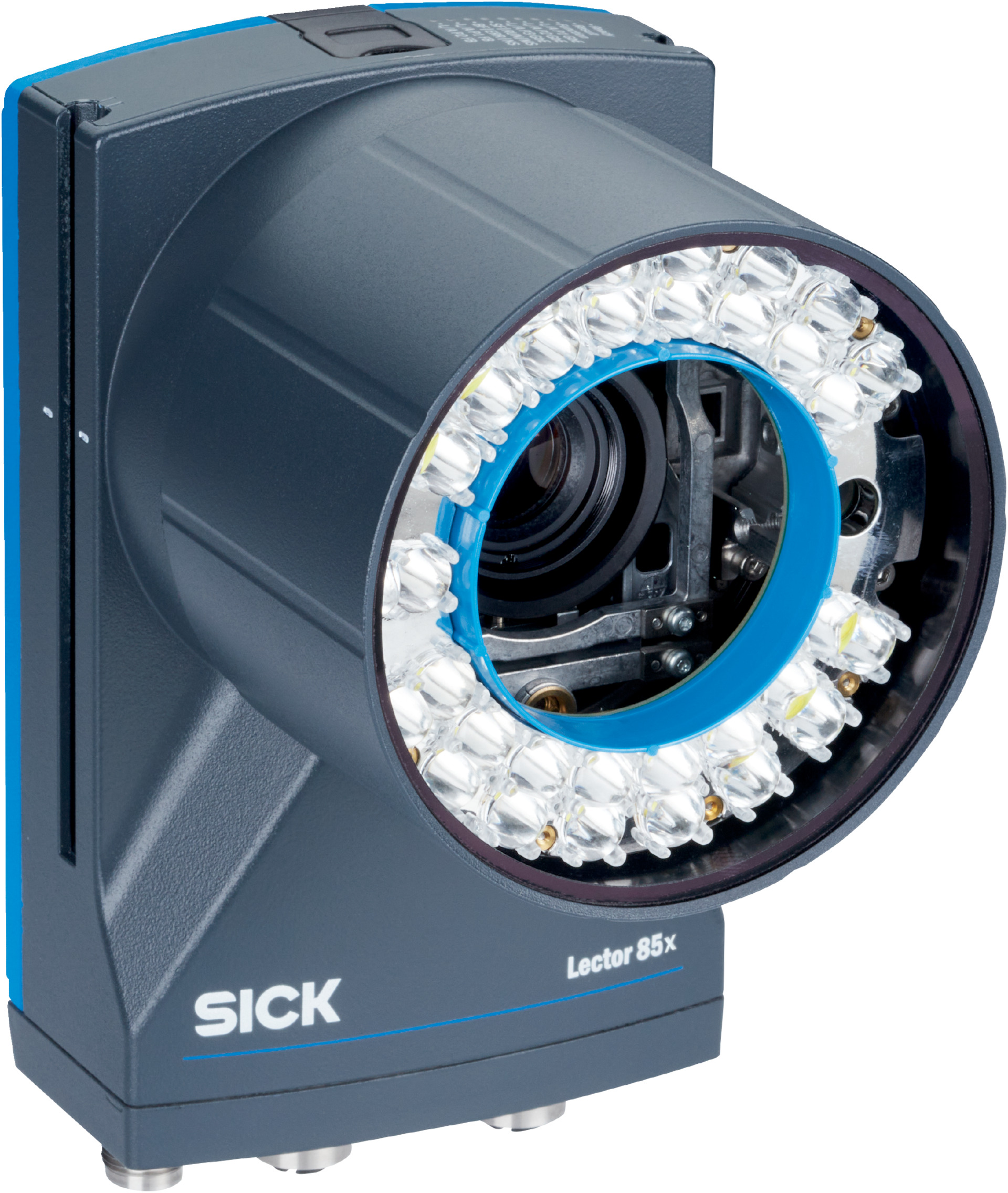

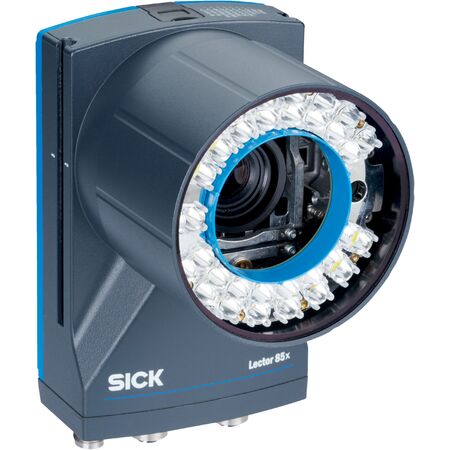

Industrial Code Reader | 9MP High-Resolution Scanner | Dynamic Focus Control | IP65 Rated | by SICK
The Industrial Code Reader is designed for high-precision barcode and 2D code scanning in indoor industrial applications. Featuring a 9MP resolution and dynamic focus control, this scanner ensures accurate readings in manufacturing and logistics environments. With robust aluminum housing and integrated LED illumination, it offers durability and efficiency, making it ideal for quality control and traceability in production lines.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Dimensions (H x L x W): 106mm x 143mm x 90mm
- Weight: 0.975 kg
Key Features
- Dynamic focus control with CMOS monochrome sensor
- High sensor resolution of 4096 x 2176 pixels (9 Megapixel)
- Integrated white LED illumination with 32 LEDs
- Aperture angle of 47° for illumination
- Low risk LED class 1 compliant with EC 62471-1 and EN 62471-1
- Visible green and red LED feedback spots
- Red laser alignment aid (630 nm to 680 nm), laser class 1 compliant
- Focal length 25 mm with aperture 5.6
- Scanning frequency of 20 Hz at 9 Megapixel resolution
- Code resolution ≥ 0.1 mm
- Working range from 500 mm to 2400 mm
- Multiple industrial interfaces including Ethernet, EtherNet/IP™, PROFINET, CAN, Serial RS-232, USB 2.0
- Robust aluminum die cast housing with IP65 rating
- Scratch-proof 2 mm thick glass window
- Operating temperature 0 °C to +50 °C
- EMC compliant with IEC 61000-6-2 and IEC 61000-6-4
- Shock and vibration resistant per EN 60068 standards
- Supports a wide range of 1D, 2D, and stacked barcode types
Professional Installation Requirements
- Professional installation by qualified personnel recommended to ensure proper integration with industrial networks and compliance with safety standards.
Applications
- Indoor area industrial code reading
- Barcode and 2D code scanning in manufacturing and logistics
- Quality control and traceability in production lines
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
- AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Durable aluminum housing reduces need for frequent replacements
- Energy-efficient LED illumination minimizes power consumption
- Long MTBF of 100,000 hours reduces electronic waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK V2D8509R-1MEKEXAF2SXXXX is available for immediate purchase. Ideal for indoor industrial applications requiring high-precision barcode and 2D code reading.
