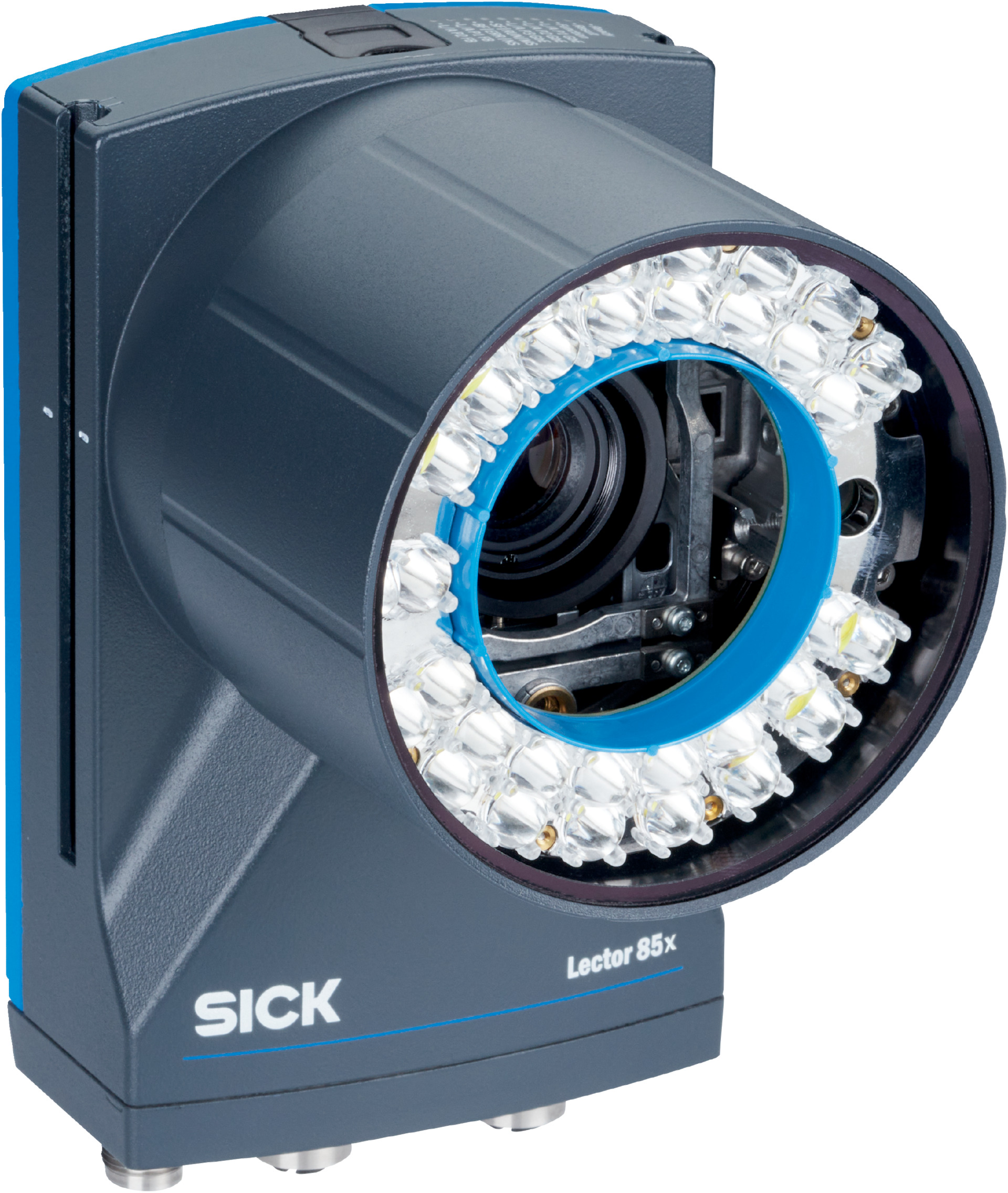

Industrial Code Reader | 9MP Resolution | Dynamic Focus Control | IP65 Rated | by SICK
The Industrial Code Reader with 9MP resolution and dynamic focus control is perfect for indoor barcode and 2D code scanning in manufacturing and logistics. Built for quality control and traceability, this robust device features integrated red LED illumination and a wide working range from 500 mm to 2400 mm, ensuring reliable performance in various industrial applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor: CMOS monochrome, 4096 px x 2176 px (9 Megapixel)
- Illumination: Integrated red LED, 660 nm ± 20 nm, 32 LEDs
- Optical focus: Dynamic focus control
- Focal length: 25 mm, Aperture: 5.6
- Scanning frequency: 20 Hz at 9 megapixels
- Code resolution: ≥ 0.1 mm
- Working range: 500 mm to 2400 mm
- Connection types: M12 connectors (17-pin male, 5-pin male, 8-pin female)
- Supply voltage: 24 V DC ± 20%
- Power consumption: Typical 27 W
- Current consumption: Max 2 A
- Housing material: Aluminum die cast, color anthracite gray (RAL 7016)
- Window material: 2 mm thick glass with scratch-proof coating
- Enclosure rating: IP65 (IEC 60529)
- Electrical safety: EN 61010 standards
- Interfaces: Ethernet (TCP/IP), CAN, Serial (RS-232, RS-422), USB 2.0
- Digital inputs: 2 insulated inputs, configurable digital I/Os
- Operating temperature: 0 °C to +50 °C
- Storage temperature: -20 °C to +70 °C
- EMC: IEC 61000-6-2 and IEC 61000-6-4 compliant
- Vibration and shock resistance: EN 60068-2 standards
- MTBF: 100,000 hours
- Dimensions (H x L x W): 106mm x 143mm x 90mm
- Weight: 0.975 kg
Key Features
- Dynamic focus control with CMOS monochrome sensor
- High sensor resolution of 4096 px x 2176 px (9 Megapixel)
- Integrated red LED illumination (660 nm ± 20 nm) with 32 LEDs
- Risk group 1 low risk LED and laser classes compliant with safety standards
- Focal length 25 mm with aperture 5.6
- Scanning frequency of 20 Hz at 9 megapixels resolution
- Wide working range from 500 mm to 2400 mm
- Robust aluminum die cast housing with anthracite gray color
- Scratch-proof 2 mm thick glass window
- IP65 rated enclosure for dust and water protection
- Multiple interfaces including Ethernet, CAN, Serial, USB
- Supports 1D, 2D, and stacked code types with ISO/IEC qualification
- Electromagnetic compatibility and vibration/shock resistance certified
- Operating temperature range 0 °C to +50 °C
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper electrical connections and compliance with safety standards.
Applications
- Indoor area industrial code reading
- Barcode and 2D code scanning in manufacturing and logistics
- Quality control and traceability in production lines
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Energy-efficient LED illumination reduces power consumption
- Durable housing and long MTBF (100,000 hours) reduce waste and replacement frequency
Warranty Information
Warranty details available upon request from SICK; typically includes coverage against manufacturing defects.
Available Now

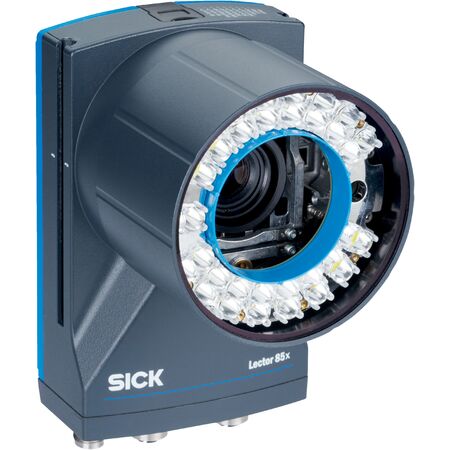

The SICK V2D8509R-1MEMEXAL2SXXXX industrial code reader is available for immediate purchase, ideal for indoor industrial barcode and 2D code scanning applications.
