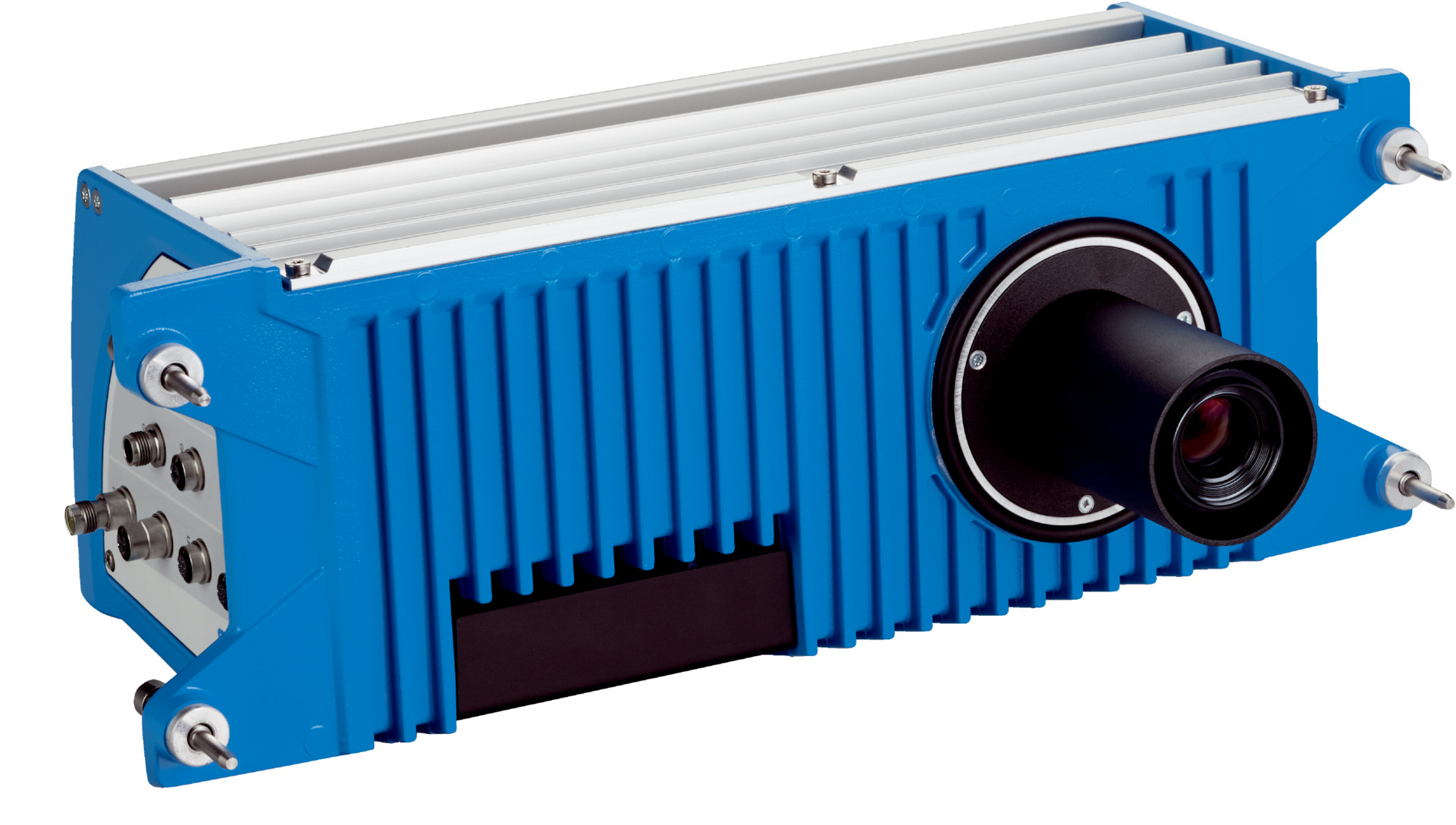

Industrial Code Reader SICK ICD890 | CMOS Sensor 8192 px | IP65 Rated | by SICK
The Industrial Code Reader SICK ICD890 is designed for high-precision code reading in indoor industrial and logistics applications. Featuring a CMOS line sensor with 8192 px resolution and a reading distance of 1550 mm to 3600 mm, it supports 1D and 2D codes, ensuring reliable performance at transport speeds up to 4.5 m/s. Built with an IP65 rated aluminum housing, this reader is perfect for demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor: CMOS line sensor monochrome, 8192 px (200 dpi)
- Line frequency: Max. 25 kHz
- Lens: Integrated, 95 mm focal length
- Reading distance: 1550 mm to 3600 mm
- Field of view: 1200 mm (170 dpi), 1035 mm (200 dpi)
- Code resolution: ≥ 0.1 mm
- Operating modes: Forward, backward, start/stop
- Readable codes: 1D, 2D, stacked including GS1-128, QR, Data Matrix
- Transport speed: ≤ 4.5 m/s
- Image output formats: JPEG, TIFF, BMP
- Connectivity: 3x M12 Ethernet (1 Gbit/s), CAN In/Out, multiple I/O connectors
- Power supply: 24 V DC, -10% +20%, typical 50-55 W
- Housing: Aluminum die cast, IP65 rated
- Operating temperature: -10°C to +50°C
- Weight: Approx. 11 kg
- Dimensions (H x L x W): 179mm x 487mm x 300mm
- Weight: 11 kg
Key Features
- Dynamic and fixed optical focus control
- CMOS line sensor monochrome with 8192 px resolution
- Max line frequency of 25 kHz
- Integrated 95 mm focal length lens
- Reading distance from 1550 mm to 3600 mm
- Field of view up to 1200 mm at 170 dpi
- Extended code quality analysis and empty tote detection
- Supports 1D, 2D, and stacked code types
- High transport speed up to 4.5 m/s
- Multiple Ethernet and CAN interfaces
- IP65 rated aluminum die cast housing
- Operating temperature range from -10°C to +50°C
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure proper electrical connections and alignment for optimal performance.
Applications
- Indoor area code reading and analysis
- Industrial automation and logistics
- Barcode and 2D code scanning in manufacturing
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
- AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Durable IP65 housing reduces need for frequent replacements
- Energy-efficient 24 V DC operation minimizes power consumption
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now

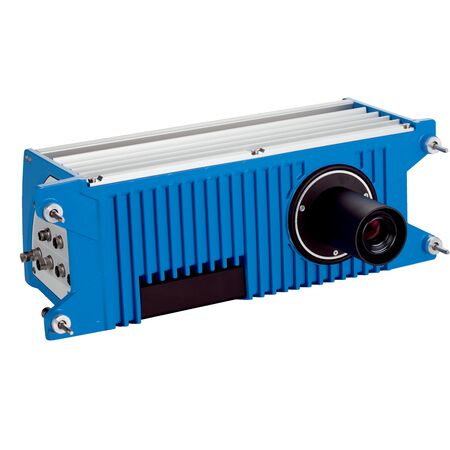

The SICK ICD890-44342031 Industrial Code Reader is available for immediate purchase, ideal for indoor industrial and logistics applications requiring high-precision code reading.
