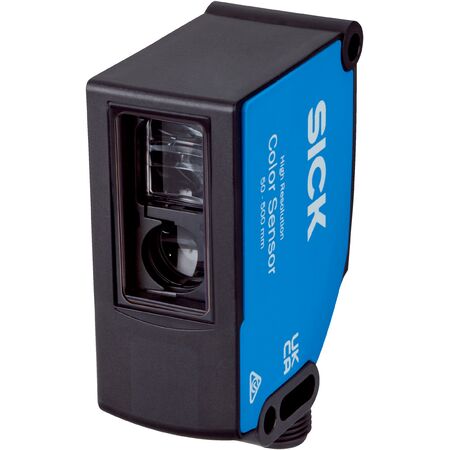

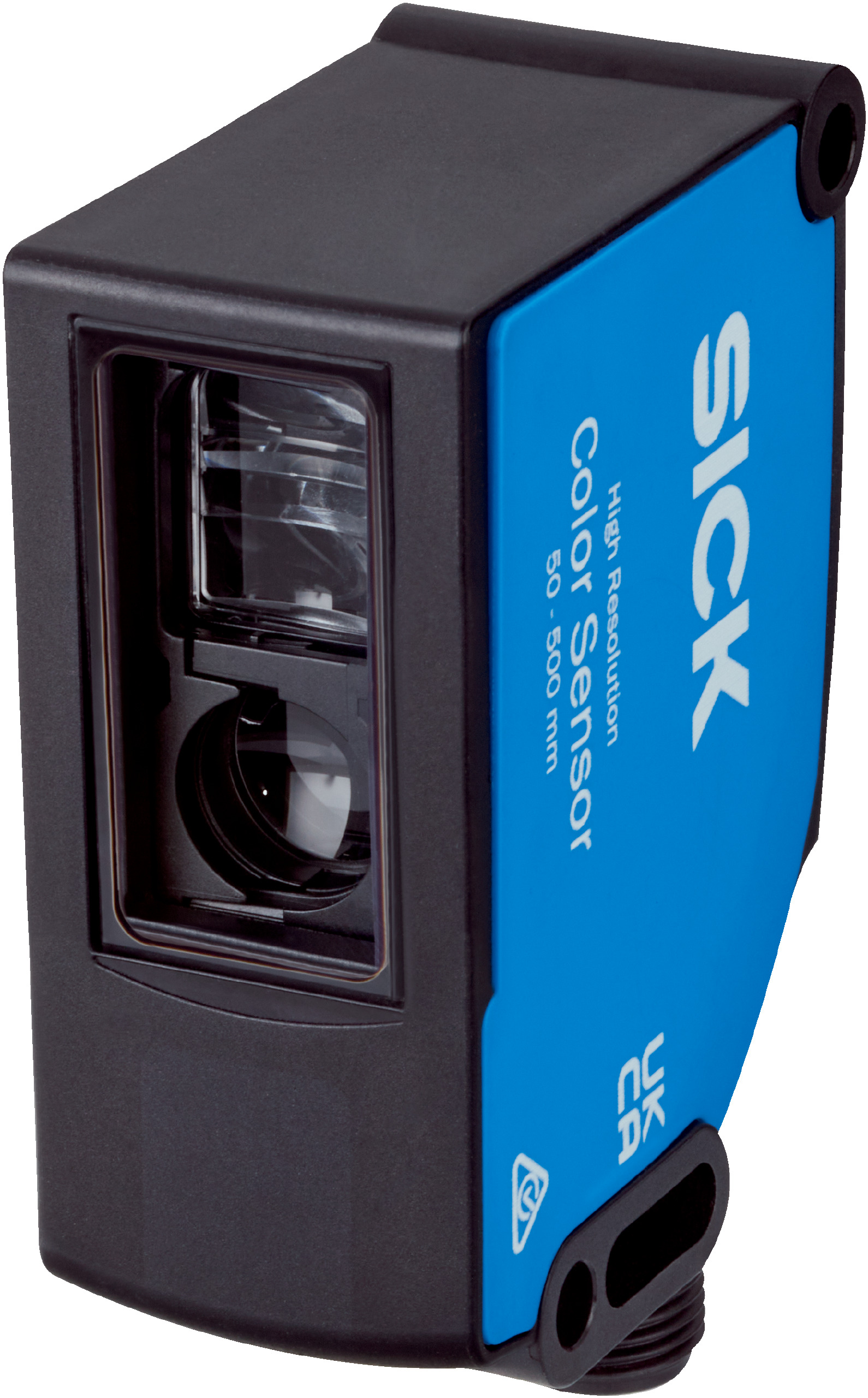

Industrial Color Sensor CSS-WBGAD4118AA10Z | IP67 Rated | RGB LED Light Source | 50 mm to 500 mm Sensing Distance | by SICK
The Industrial Color Sensor CSS-WBGAD4118AA10Z is designed for precise color detection and sorting in industrial automation. With a sensing distance of 50 mm to 500 mm and an IP67 rated enclosure, it operates efficiently in harsh environments. Featuring a versatile RGB LED light source and multiple output options, this sensor is perfect for quality control and material inspection applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensing distance: 50 mm to 500 mm
- Light source: LED RGB (450 nm, 550 nm, 610 nm)
- Light spot size: Ø 8 mm to 32 mm
- Output mode: 4 colors standard, 15 colors coded
- Supply voltage: 10.8 V DC to 28.8 V DC
- Current consumption: < 150 mA
- Switching frequency: 4 kHz
- Response time: 120 µs
- Switching output: Push-pull PNP/NPN, max 100 mA
- Connection: Male M12, 8-pin connector
- Enclosure rating: IP67
- Operating temperature: -20°C to +55°C
- Weight: 70 g
- Dimensions (H x L x W): 62mm x 48mm x 26mm
- Weight: 0.1 kg
Key Features
- Sensing distance from 50 mm to 500 mm
- S-housing design with LED RGB light source
- 4 hardware switching outputs and 24 virtual switching outputs via IO-Link
- Continuous sensitivity adjustment from 0 to 999
- Teach-in modes: single value and multi value
- Protection class III with reverse polarity and short-circuit protection
- IP67 rated enclosure for harsh environments
- Operating temperature range from -20°C to +55°C
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician familiar with industrial sensor systems and IO-Link communication protocols.
Applications
- Industrial automation for color detection and sorting
- Quality control in manufacturing processes
- Material identification and inspection
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable IP67 housing minimizes waste by extending product lifespan
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK CSS-WBGAD4118AA10Z Color Sensor is available for immediate purchase, ideal for industrial automation and quality control applications.
