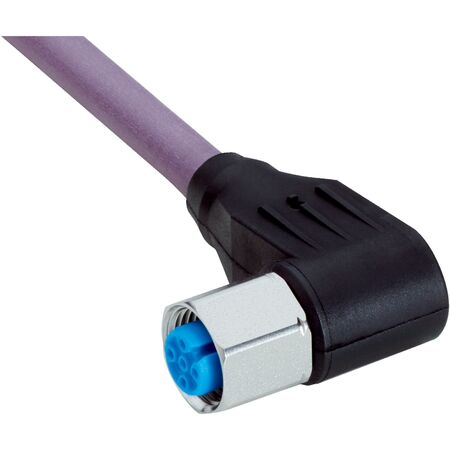

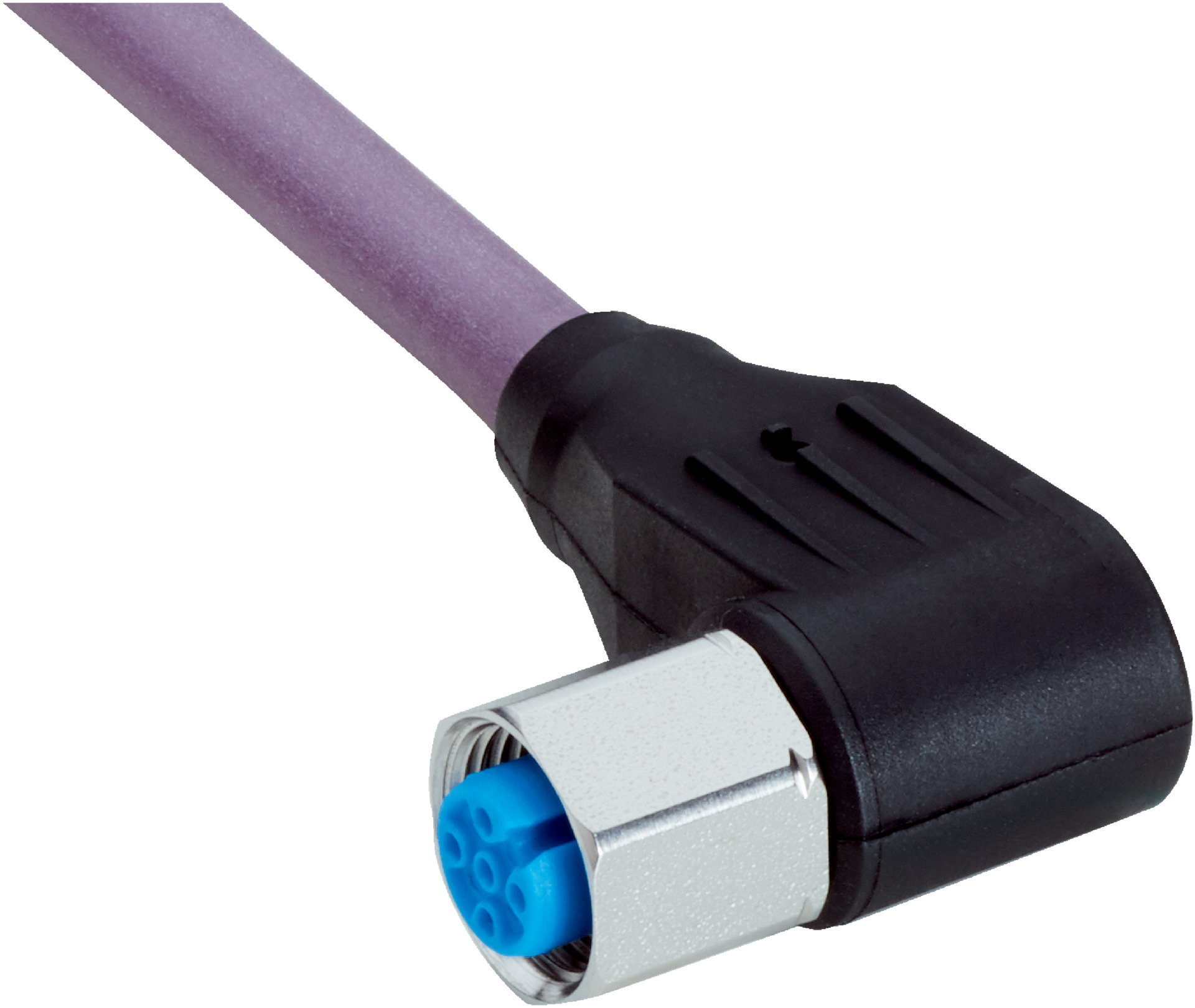

Industrial Connector Cable M12 5-Pin Angled | Shielded PUR | IP65/IP66K/IP67 | by SICK
The Industrial Connector Cable M12 5-Pin Angled is designed for robust performance in industrial automation, featuring a shielded 2 m PUR halogen-free cable with 4 wires. With an IP65/IP66K/IP67 enclosure rating and a wide operating temperature range from -40 °C to +85 °C, this cable is perfect for drag chain operations and fieldbus communication systems, ensuring high durability and safety in harsh environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Connection type head A: Female connector, M12, 5-pin, angled, A-coded
- Connection type head B: Flying leads
- Locking plug connector: Screw connection
- Connector material: TPU
- Locking nut material: Stainless steel (V4A/1.4404)
- Seal material: FKM
- Tightening torque: 0.6 Nm
- Cable length: 2 m
- Cable type: 4-wire, PUR, halogen-free
- Cable diameter: 6.9 mm
- Conductor cross section: 2 x 0.25 mm² + 2 x 0.34 mm²
- Shielding: Shielded
- Bending radius for flexible use: > 10 x cable diameter
- Nominal voltage: 300 V AC
- Test voltage: 2,000 V AC
- Rated impulse voltage: 1.5 kV
- Current loading: ≤ 4 A
- Traversing speed: 3 m/s
- Travelling distance: 5 m
- Acceleration: ≤ 5 m/s²
- Signal type: Fieldbus, CANopen, DeviceNet™
- Enclosure rating: IP65 / IP66K / IP67
- Operating temperature flexible use: -30 °C to +70 °C
- Operating temperature stationary position: -40 °C to +80 °C
- Operating temperature head: -25 °C to +85 °C
- Contamination rating: 3
- Insulation resistance: 100 MΩ
- Overvoltage category: III
- Thermal resistance: Flame retardant acc. to UL 1581 Section 1090, Section 1100 (FT2) / IEC 60332-1-2
- Dimensions (H x L x W): 20mm x 2000mm x 13mm
- Weight: 0.2 kg
Key Features
- Female connector M12, 5-pin, angled, A-coded
- Shielded 2 m PUR halogen-free cable with 4 wires
- High durability with 1,000,000 bending cycles
- IP65 / IP66K / IP67 enclosure rating for robust protection
- Operating temperature range from -40 °C to +85 °C depending on use
- Screw connection locking plug with stainless steel locking nut
- Flame retardant cable jacket according to UL 1581 and IEC 60332-1-2
Professional Installation Requirements
- Installation should be performed by a qualified electrician or technician experienced with industrial connectors and fieldbus systems to ensure proper connection and compliance with safety standards.
Applications
- Drag chain operation in industrial automation
- Zones with oils and lubricants
- Fieldbus communication systems including CANopen and DeviceNet™
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen-free PUR cable reduces harmful emissions in case of fire
- Flame retardant materials enhance safety and reduce environmental impact
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for detailed warranty terms.
Available Now
The SICK YG2A55-020C1BXLEAX industrial connector cable is available for immediate purchase, ideal for industrial automation and drag chain applications in harsh environments.
