Industrial Connector Cable M12 5-Pin | IP68 Rated | Nickel-Plated Brass | by SICK

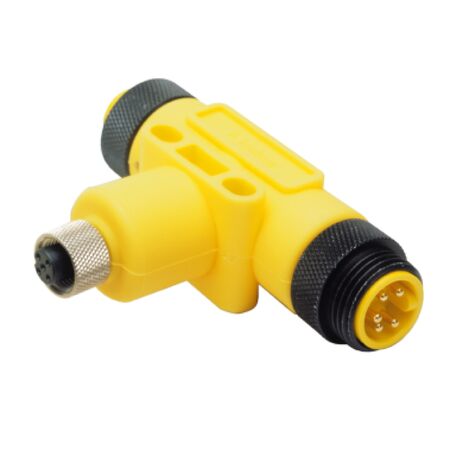

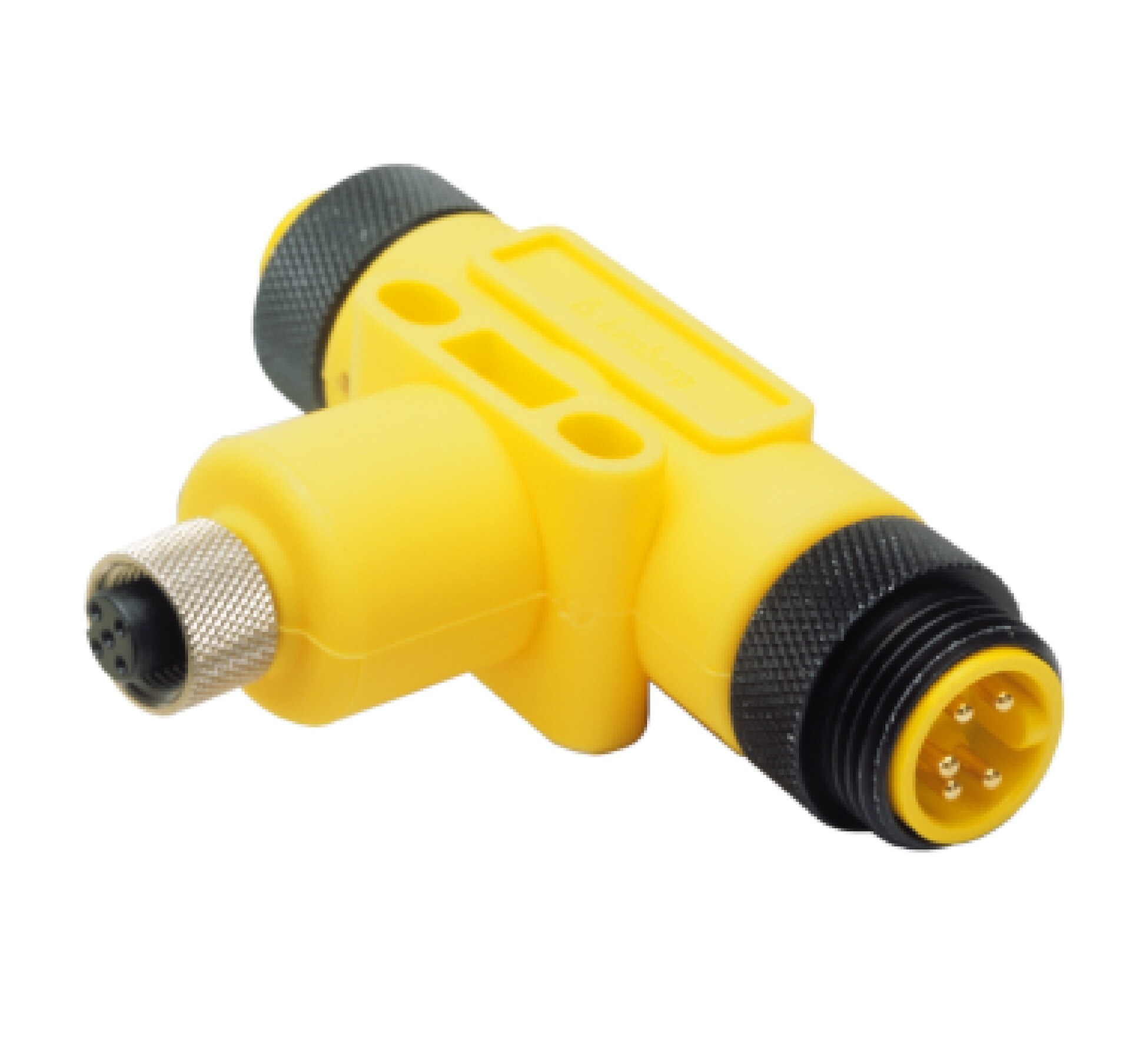

The SDO-02D78-SF industrial connector cable features a female M12 5-pin A-coded connector and a 7/8 inch 5-pin connector, making it ideal for industrial automation systems and sensor connections. With an IP68 rating for dust and water resistance and a durable nickel-plated brass locking nut, this cable ensures reliable performance in harsh environments, perfect for factory and process automation applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Connection type head A: Female connector, M12, 5-pin, A-coded
- Connection type head B: Female connector, 7/8", 5-pin
- Connection type head C: Male connector, 7/8", 5-pin
- Locking nut material: Nickel-plated brass
- Shielding: Unshielded
- Reference voltage: ≤ 36 V DC
- Current loading: 4 A
- Enclosure rating: IP68
- Operating temperature: -25 °C to +90 °C
- Dimensions (H x L x W): 20mm x 200mm x 50mm
- Weight: 0.1 kg
Key Features
- Female connector, M12, 5-pin, A-coded on head A
- Female connector, 7/8", 5-pin on head B
- Male connector, 7/8", 5-pin on head C
- Nickel-plated brass locking nut for durability
- Unshielded cable and connector heads
- High enclosure rating of IP68 for dust and water resistance
- Operating temperature range from -25 °C to +90 °C
Professional Installation Requirements
- Installation should be performed by a qualified electrician or technician experienced with industrial electrical connectors to ensure proper connection and safety.
Applications
- Industrial automation systems
- Sensor and actuator connections
- Factory and process automation
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable materials reduce replacement frequency and waste
- High IP68 rating protects against environmental damage, extending product life
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy.
Available Now
The SICK SDO-02D78-SF industrial connector cable is available for immediate purchase, ideal for industrial automation and sensor connection applications.
