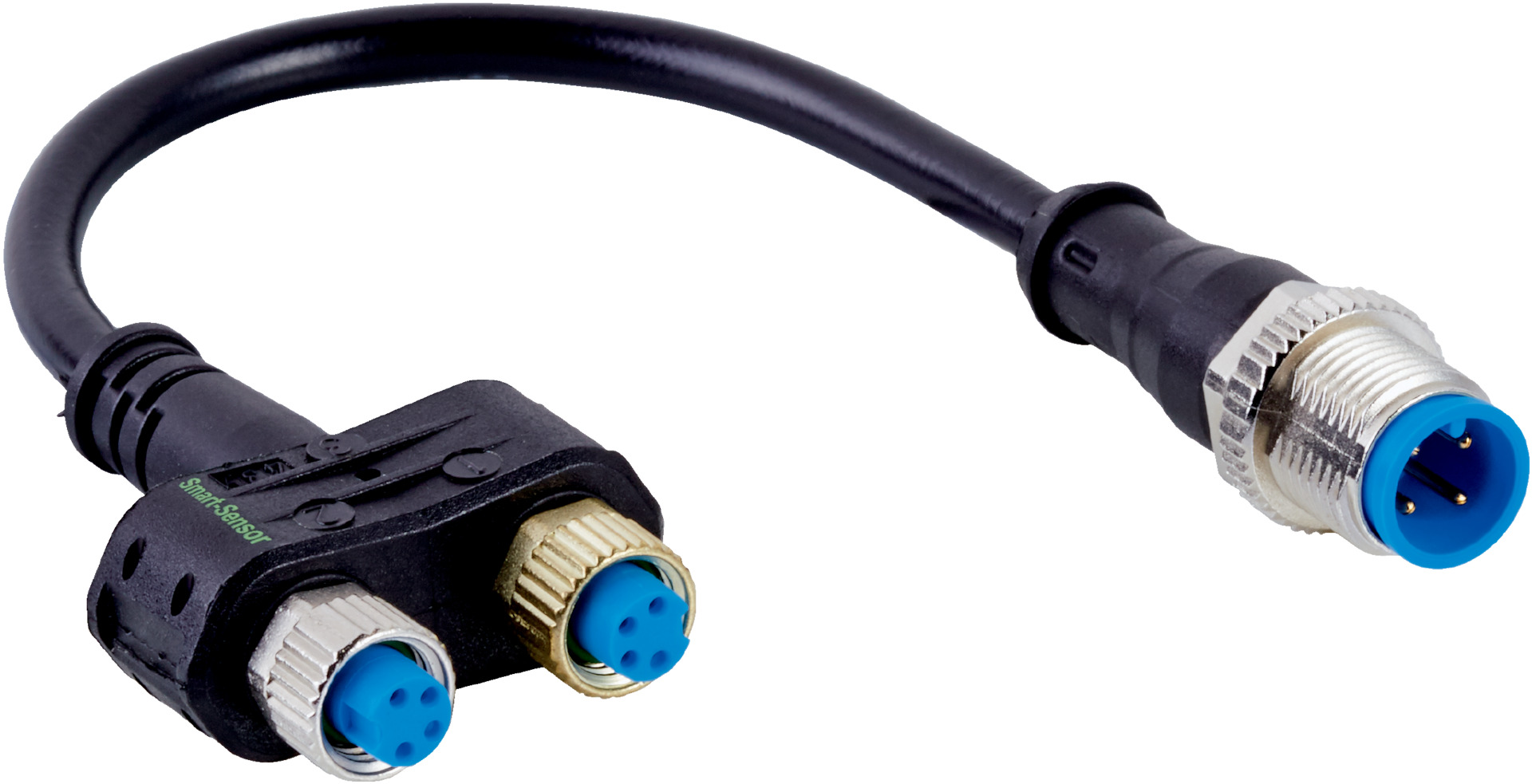

Industrial Connector Cable M12 to M8 | IP67 Rated | 0.11m Length | by SICK
The Industrial Connector Cable M12 to M8 is designed for reliable sensor and actuator connections in industrial automation systems. Featuring a durable PVC construction and IP67 rating, this cable ensures protection against dust and water, making it ideal for factory and process automation applications. With male M12 and female M8 connectors, it supports a wide range of connectivity needs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Connection type head A: Male connector, M12, 4-pin, A-coded
- Connection type head B: Female connector, M8, 4-pin, A-coded
- Connection type head C: Female connector, M8, 4-pin, A-coded
- Connecting cable length: 0.11 m
- Cable material: PVC
- Conductor cross section: 0.34 mm²
- Locking nut material: Zinc die-cast, nickel-plated
- Width across flats: 9 mm (M8), 13 mm (M12)
- Tightening torque: 0.4 Nm (M8), 0.6 Nm (M12)
- Shielding: Unshielded
- Reference voltage: ≤ 30 V DC
- Rated impulse voltage: 0.8 kV
- Current loading: ≤ 4 A
- Contamination rating: 3
- Operating temperature: -25 °C to +80 °C
- Enclosure rating: IP67
- Dimensions (H x L x W): 10mm x 110mm x 13mm
- Weight: 0.1 kg
Key Features
- Male connector M12, 4-pin, A-coded
- Female connectors M8, 4-pin, A-coded
- PVC connecting cable length 0.11 m
- Zinc die-cast, nickel-plated locking nut
- IP67 rated enclosure for dust and water protection
- Operating temperature range -25°C to +80°C
- Unshielded cable and connectors
Professional Installation Requirements
- Installation by a qualified electrician or technician is recommended to ensure proper connection and compliance with electrical standards.
Applications
- Industrial automation systems
- Sensor and actuator connections
- Factory and process automation
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable materials reduce replacement frequency and waste
- IP67 rating protects against environmental damage, extending product life
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for detailed warranty terms.
Available Now

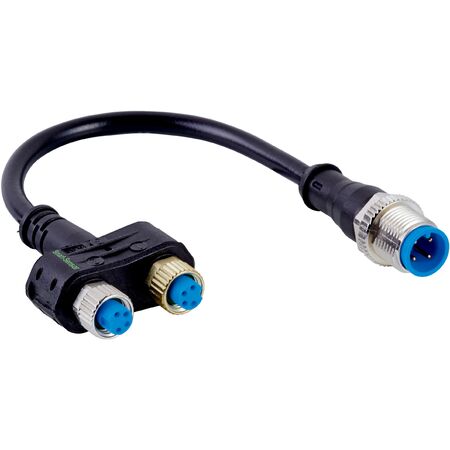

The SICK SYL-8204-G0M11-X2 connector cable is available for immediate purchase, ideal for industrial automation and sensor connection applications.
