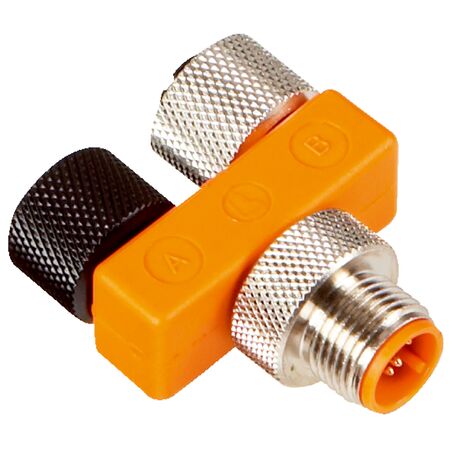

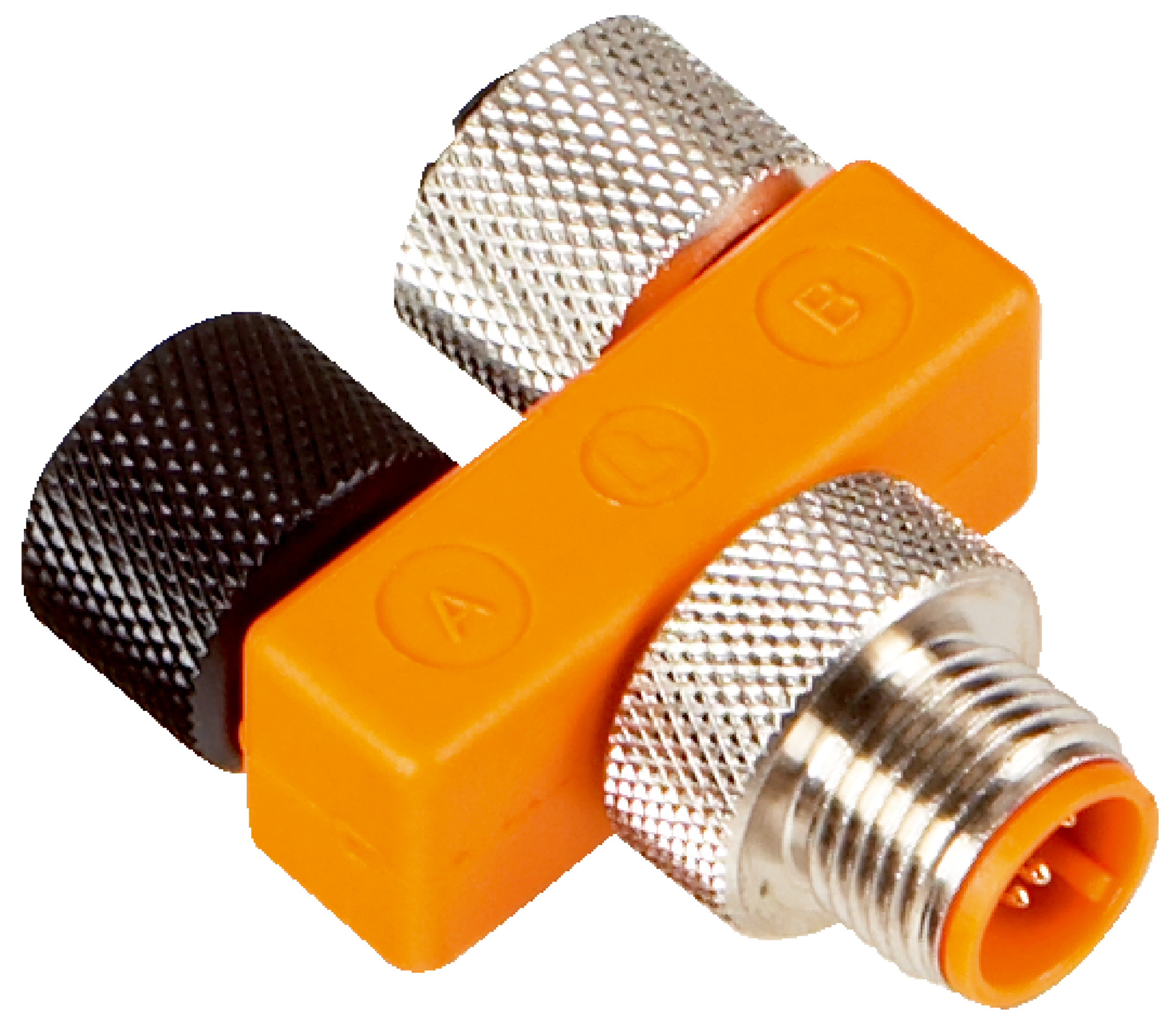

Industrial Connector Cable M12 to M8 | IP67 Rated | Durable TPU Housing | by SICK
The SBO-02C08-SF industrial connector cable features a male M12, 4-pin connector and female M8, 3-pin connectors, making it ideal for sensor and actuator connections in industrial automation. With an IP67 rating for dust and water protection and a durable TPU housing, this cable ensures reliable performance in harsh environments, supporting current loads of up to 4 A and operating temperatures from -25 °C to +90 °C.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Connection type head A: Male connector, M12, 4-pin, A-coded
- Connection type head B: Female connector, M8, 3-pin, A-coded
- Connection type head C: Female connector, M8, 3-pin, A-coded
- Conductor cross section: 0.14 mm²
- Housing material: TPU
- Locking nut material: Zinc die-cast, nickel-plated
- Shielding: Unshielded
- Reference voltage: ≤ 60 V DC, ≤ 75 V DC
- Current loading: 4 A
- Operating temperature: -25 °C to +90 °C
- Enclosure rating: IP67
- Dimensions (H x L x W): 10mm x 200mm x 10mm
- Weight: 0.1 kg
Key Features
- Male connector M12, 4-pin, A-coded on head A
- Female connector M8, 3-pin, A-coded on heads B and C
- Housing made of durable TPU material in orange color
- Locking nut made of zinc die-cast, nickel-plated
- Unshielded cable and connectors
- IP67 rated for dust and water protection
- Current loading capacity of 4 A
- Reference voltage up to 60 V DC (≤ 75 V DC)
- Operating temperature range from -25 °C to +90 °C
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Industrial automation and control systems
- Sensor and actuator connections
- Factory and process automation
Standards & Compliance
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Durable TPU housing extends product life reducing waste
- RoHS compliant, free from hazardous substances
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy.
Available Now
The SICK SBO-02C08-SF industrial connector cable is available for immediate purchase, ideal for industrial automation and sensor connection applications.
