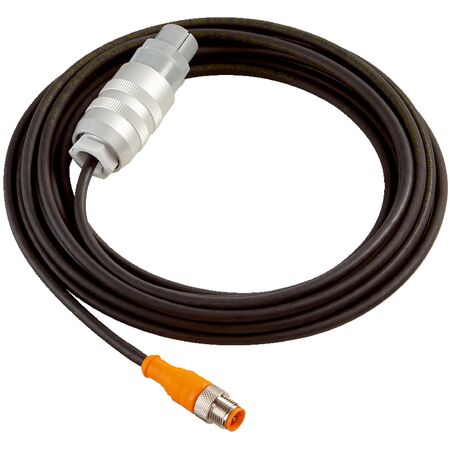

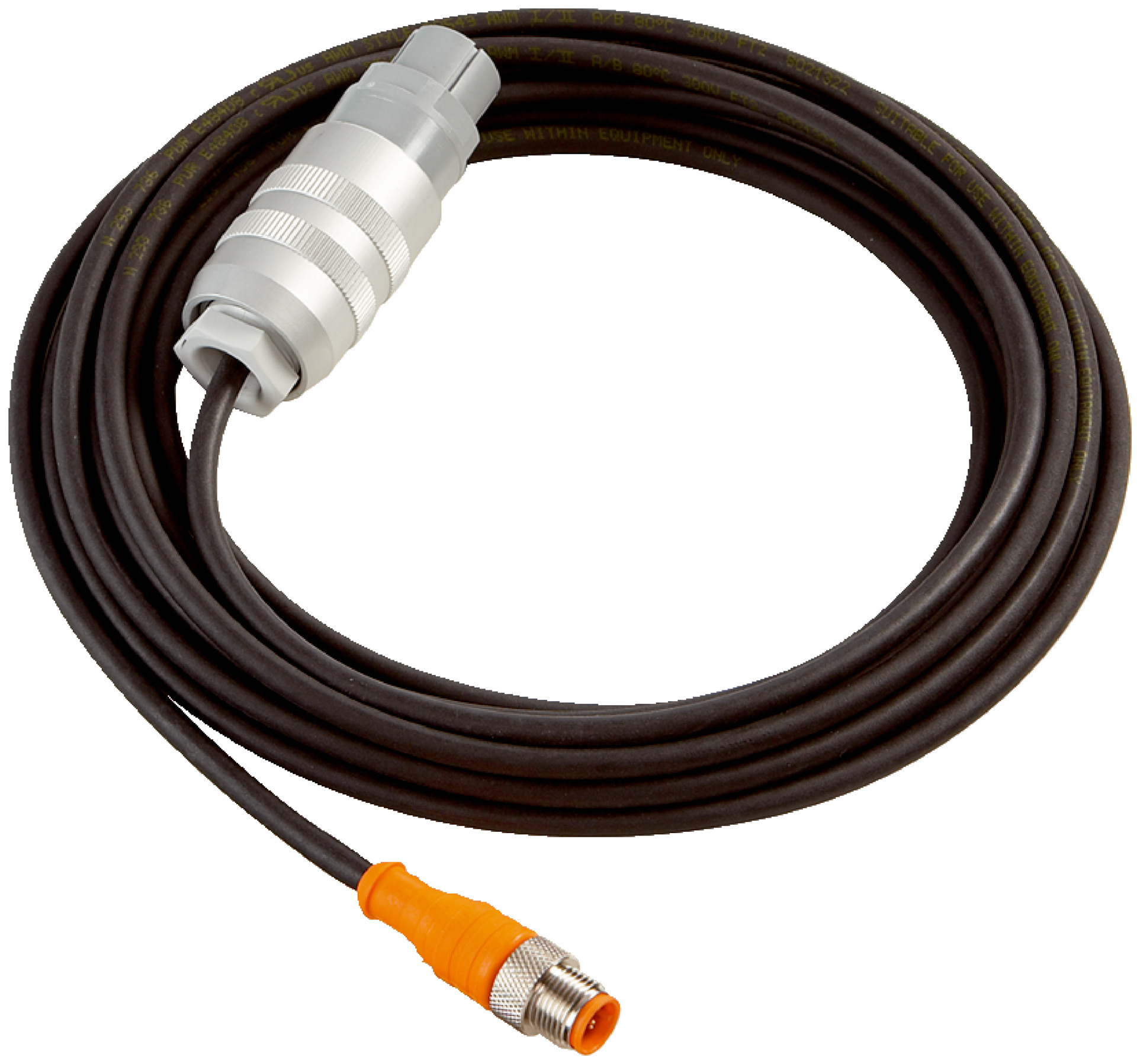

Industrial Connector Cable M26 to M12 | 2m Length | IP65/IP66K/IP67 Rated | by SICK
The Industrial Connector Cable M26 to M12 is designed for robust applications in industrial automation and control systems. With a 2-meter length and high durability, it supports bending cycles up to 10,000,000, making it ideal for environments requiring flexible cable solutions. Rated IP65/IP66K/IP67, this cable ensures reliable performance in harsh conditions, perfect for robotics and machinery.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Connection type head A: Female connector, M26, 12-pin, straight
- Connection type head B: Male connector, M12, 5-pin, straight
- Connector material: Female connector: PBT, male connector: TPU
- Tightening torque: 0.6 Nm
- Cable: 2 m, 5-wire, PUR
- Jacket material: PUR
- Jacket color: Black
- Cable diameter: 4.8 mm
- Conductor cross section: 0.34 mm²
- Shielding: Unshielded
- Bending radius flexible use: > 10 x cable diameter
- Bending radius stationary position: > 5 x cable diameter
- Operating temperature flexible use: -25 °C to +80 °C
- Operating temperature stationary position: -40 °C to +80 °C
- Operating temperature head: -25 °C to -85 °C
- Bending cycles: ≤ 10,000,000
- Rated impulse voltage: 1.5 kV
- Traversing speed: Max. 3 m/s
- Travelling distance: 10 m
- Acceleration: ≤ 10 m/s²
- Enclosure rating: IP65 / IP66K / IP67
- Dimensions (H x L x W): 10mm x 2000mm x 10mm
- Weight: 0.1 kg
Key Features
- Female connector M26, 12-pin, straight and male connector M12, 5-pin, straight
- Cable length of 2 meters with 5-wire PUR jacket
- High durability with bending cycles up to 10,000,000
- Rated impulse voltage of 1.5 kV
- Enclosure rating IP65 / IP66K / IP67 for robust protection
- Suitable for flexible use from -25°C to +80°C and stationary use from -40°C to +80°C
- Special feature: Drag chain use
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Industrial automation and control systems
- Robotics and machinery requiring reliable cable connections
- Environments requiring drag chain use and flexible cable solutions
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable PUR jacket reduces need for frequent replacements, minimizing waste
- High resistance to environmental factors extends product life
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for detailed warranty terms.
Available Now
The SICK DSL-6182G02M034KM1 industrial cable assembly is available for immediate purchase, ideal for industrial automation and machinery requiring robust and flexible cable connections.
