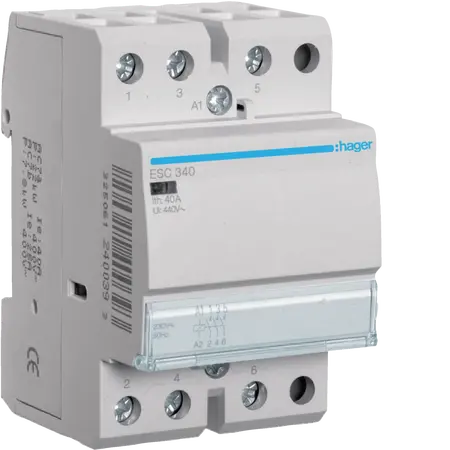

Industrial Contactor 40A | 3NO | 230V~50Hz | Compact Design by Hager

BRAND: :hager
SKU: ESC340
$139.20 List price: $178.00
+ −
30 Days Return Delivery Options
Industrial contactor with 40A rated current and 3 normally open contacts—ideal for automation systems and commercial lighting control. Built for high power applications, with a compact modular design and wide operating temperature range.

Product Name/Title: Contactor 40A, 3NO, 230V~50Hz

Brand: Hager

SKU: ESC340

Alternatively Known As: Industrial Contactor

Technical Specifications
  • Type of contacts: 3NO
  • Number of contacts: 3
  • Cross-section flexible conductor: 1.5 - 16 mm²
  • Cross-section rigid conductor: 1.5 - 25 mm²
  • Rated current: 40 A
  • Number of modules: 3
  • Frequency: 50 - 50 Hz
  • Rated impulse withstand voltage Uimp: 4000 V
  • Rated insulation voltage Ui: 440 V
  • Command voltage AC: 230 - 230 V
  • Command voltage DC: 0 - 0 V
  • Operating temperature: -10 - 50 °C
  • Storage/transport temperature: -40 - 80 °C
  • Number of mechanical operations: 100000
  • Electric endurance in number of cycles: 30000
  • Total power loss under IN: 11.10 W
  • Inrush power absorbed: 62.50 VA
  • Dimensions (H x L x W): 85mm x 60mm x 54mm
  • Weight: 0.3 kg
Key Features
  • 40A rated current for high power applications
  • Three normally open contacts for circuit control
  • Wide operating temperature range
  • Compact design with modular structure
  • High electric endurance and mechanical operations
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended to ensure safety and compliance.
Applications
  • Industrial automation systems
  • Commercial buildings for lighting and motor control
  • Residential main and secondary circuit control
Standards & Compliance
  • Complies with relevant AS/NZS standards for electrical safety
Environmental Benefits
  • Optimized power efficiency reduces energy wastage
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Contactor 40A, 3NO, 230V is available for immediate purchase, ideal for controlling power circuits in both commercial and residential settings.

ESC340 (ESC340, 171 Kb) [Download]

reach_declaration_ESC3401.pdf (reach_declaration_ESC3401.pdf, 103 Kb) [Download]

rohs_declaration_ESC3401.pdf (rohs_declaration_ESC3401.pdf, 104 Kb) [Download]

(CONTACTORS.pdf, 197 Kb) [Download]

(DECLARATION_21_3002_09_21.pdf, 387 Kb) [Download]

(DECLARATION_21_1401_05_21.pdf, 225 Kb) [Download]
