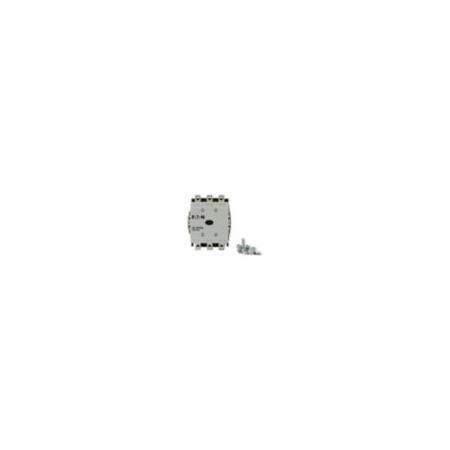

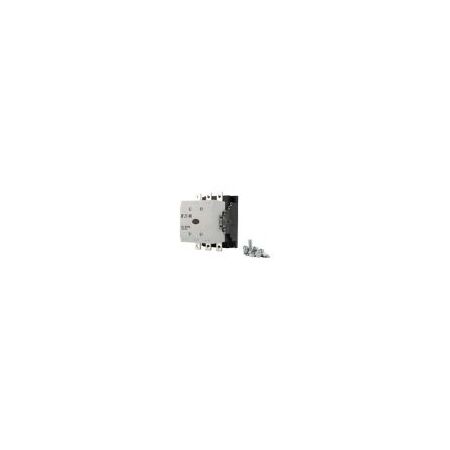

Industrial Contactor 90kW | 185A Current | 2 N/O & 2 N/C Contacts | IP00 by Eaton

BRAND: Eaton
SKU: Y7-139537
$2,551.50 List price: $3,179.50
+ −
30 Days Return Delivery Options
The Eaton DILM185A/22(RAC240) industrial contactor is designed for motor control with a rated operational power of 90 kW and 185 A current capacity. Ideal for industrial environments, it features 2 normally open and 2 normally closed contacts, ensuring reliable performance and energy-efficient switching.

Product Name/Title: Industrial Contactor 90kW | 185A Current | 2 N/O & 2 N/C Contacts | IP00 by Eaton

Brand: Eaton

SKU: Y7-139537

Alternatively Known As: Eaton DILM Contactor, DILM185A Contactor, Motor Contactor 90kW, Industrial Contactor 380V, 400V Contactor

Technical Specifications
  • Rated operational power at AC-3, 380/400 V, 50 Hz: 90 kW
  • Rated operational current (Ie) at AC-3, 380-415 V: 185 A
  • Number of auxiliary contacts (N/O): 2
  • Number of auxiliary contacts (N/C): 2
  • Rated control supply voltage (Us): 190 - 240 V AC, 50/60 Hz
  • Switching capacity (main contacts): 250 A
  • Rated insulation voltage (Ui): 1000 V
  • Rated impulse withstand voltage (Uimp): 8000 V AC
  • Degree of protection: IP00
  • Mechanical lifespan: 10,000,000 operations
  • Electrical lifespan: 100,000 operations
  • Operating temperature range: -40 °C to 60 °C
  • Connection type: Screw terminals
  • Duty factor: 100%
  • Shock resistance: 10 g mechanical shock
  • Dimensions (H x L x W): 190mm x 158mm x 140mm
  • Weight: 3.54 kg
Key Features
  • Rated operational power at AC-3, 380/400 V, 50 Hz: 90 kW
  • 2 Normally Open (N/O) and 2 Normally Closed (N/C) contacts
  • Screw connection terminals
  • Electromagnetic compatibility designed for industrial environments
  • Suppressor circuit in actuating electronics
  • High mechanical lifespan: 10,000,000 operations
  • Electrical lifespan: 100,000 operations at condenser operation
  • Rated operational current (Ie) at AC-3, 380-415 V: 185 A
  • Protection: Finger and back-of-hand proof with terminal shroud
  • Operating temperature range: -40 °C to 60 °C
  • Shock resistance up to 10 g mechanical shock
  • Duty factor: 100%
  • Rated control supply voltage: 190 - 240 V AC, 50/60 Hz
Professional Installation Requirements
  • Installation must be performed by a qualified electrician following local electrical codes and standards to ensure safety and compliance.
Applications
  • Motor control and switching in industrial environments
  • Suitable for use with motors up to 90 kW at 380-400 V AC
  • General industrial electrical switching applications
Standards & Compliance
  • AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
  • Designed for long operational life reducing replacement frequency and waste
  • Energy efficient switching reduces power losses in motor control applications
Warranty Information

Standard Eaton warranty applies; typically 1-2 years against manufacturing defects. Refer to Eaton warranty policy for details.

Available Now

The Eaton Moeller DILM185A/22(RAC240) Contactor is available for immediate purchase, ideal for industrial motor control applications.

Product specifications (skuPage.139537.pdf, 81 Kb) [Download]
