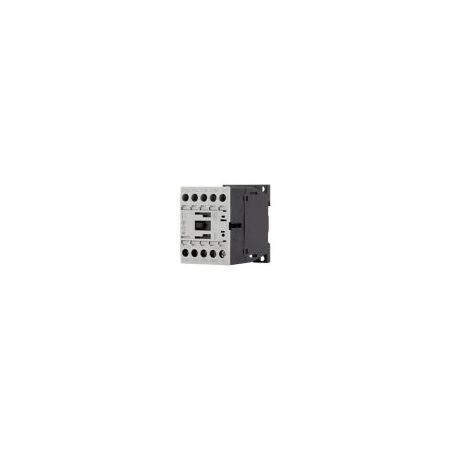

Industrial Contactor Relay 240V AC | 2 N/O & 2 N/C Contacts | IP20 Protection | DIN Rail Mount by Eaton
The DILA-22 industrial contactor relay operates at 240V AC with 2 normally open and 2 normally closed contacts—ideal for motor control circuits and automation systems. Built for industrial applications, it features a mechanical lifespan of 20 million operations and energy-efficient coil operation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Industrial Contactor Relay 240V AC | 2 N/O & 2 N/C Contacts | IP20 Protection | DIN Rail Mount by Eaton
Brand: Eaton
SKU: Y7-276388
Alternatively Known As: DILA-22 Contactor Relay, Eaton DILA Relay, Moeller DILA-22, Industrial Contactor Relay 240V
Technical Specifications
- Rated control supply voltage: 240 V AC, 50 Hz
- Number of contacts: 2 Normally Open, 2 Normally Closed
- Connection type: Screw terminals
- Mounting method: DIN rail
- Degree of protection: IP20
- Mechanical lifespan: 20,000,000 operations
- Operating temperature range: -25 °C to 60 °C
- Rated operational current (Ie): up to 16 A
- Rated insulation voltage (Ui): 690 V
- Rated impulse withstand voltage (Uimp): 6000 V AC
- Shock resistance: 5 g to 7 g depending on contact type
- Power consumption (pick-up): 24 VA at 50 Hz
- Switching times: Closing delay 15-21 ms, Opening delay 9-18 ms
- Pollution degree: 3
- Overvoltage category: III
- Dimensions (H x L x W): 68mm x 75mm x 45mm
- Weight: 0.24 kg
Key Features
- 240 V 50 Hz AC operation
- 2 Normally Open (N/O) and 2 Normally Closed (N/C) contacts
- Screw terminal connections
- Positive operating contacts compliant with EN 60947-5-1 appendix L
- DIN rail mounting
- IP20 degree of protection
- Mechanical lifespan of 20,000,000 operations
- Rated operational current up to 16 A
- Rated insulation voltage of 690 V
- Shock resistance up to 7 g
- Protection against direct contact from front (EN 50274)
Professional Installation Requirements
- Installation by a qualified electrician or professional is recommended to ensure compliance with electrical safety standards and proper integration into control systems.
Applications
- Industrial control systems
- Motor control circuits
- Automation equipment
- Electrical switching applications
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- High mechanical lifespan reduces replacement frequency and waste
- Energy efficient coil operation minimizes power consumption
Warranty Information
Standard Eaton warranty applies; please refer to Eaton's official warranty policy for details.
Available Now
The Eaton Moeller DILA-22 Contactor Relay is available for immediate purchase, ideal for industrial and automation control applications.
