Making Trade Life Easy!

Home/Electrical/Switchgear/Contactors & Equipment/Industrial Control Station | IP66 Protection | 316 Stainless Steel | Sunshades by B&R Enclosures

Trade Discount 20%

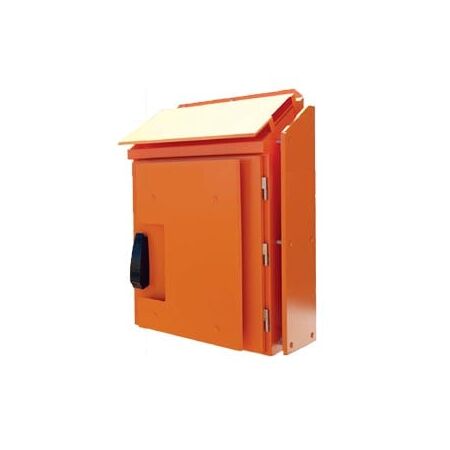

Pilbara SP 700Hx500Wx200D IP66 316SS X15+S/Shades

Industrial Control Station | IP66 Protection | 316 Stainless Steel | Sunshades by B&R Enclosures

BRAND: B&R Enclosures

SKU: SP070522/SRO/SK

$7,969.50 List price: $10,016.80

+ −

30 Days Return Delivery Options

Industrial control station with IP66 protection and 316 stainless steel construction—ideal for mining and infrastructure. Built for durability, with sunshades and lifting lugs for enhanced safety and compliance.

Description
Attachments

Product Name/Title: Pilbara SP 700Hx500Wx200D IP66 316SS X15+S/Shades

Brand: B&R Enclosures

SKU: SP070522/SRO/SK

Alternatively Known As: Pilbara SP Enclosure, Industrial Control Station, Mining Control Console

Technical Specifications

Protection Rating: IP66
Material Options: Zinc Coated Steel (2mm thick) or 316 Stainless Steel (1.5mm thick)
Sunshade Thickness: 1.6mm for Zinc Coated Steel or 1.5mm for Stainless Steel
Lifting Lugs: Conform to AS4991
Wind Rating: Region D to AS1170.2-2002
Dimensions (H x L x W): 700mm x 200mm x 500mm
Weight: 10 kg

Key Features

IP66 protection rating
Sunshades protect internal equipment from sun effects
Pintle hinges
Door stay
Lifting lugs conform to AS4991
30° sloping roof to prevent water and solids build-up
IP55 LockSock protective cover
Easy installation with top and bottom mounting flanges
Region D wind rated to AS1170.2-2002
Manufactured from Zinc Coated Steel or 316 Stainless Steel

Professional Installation Requirements

Professional installation is recommended for optimal safety and compliance.

Applications

Mining: Local control stations
Mineral Processing: Mini control consoles
Infrastructure: Motor isolation control stations

Standards & Compliance

Complies with AS4991 for lifting devices and AS1170.2-2002 for structural design actions.

Environmental Benefits

Durable materials reduce the need for frequent replacements, minimizing waste.

Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Pilbara SP with Sunshades is available now for immediate purchase. Ideal for mining and industrial applications.

Specification Sheet (, 439 Kb) [Download]
